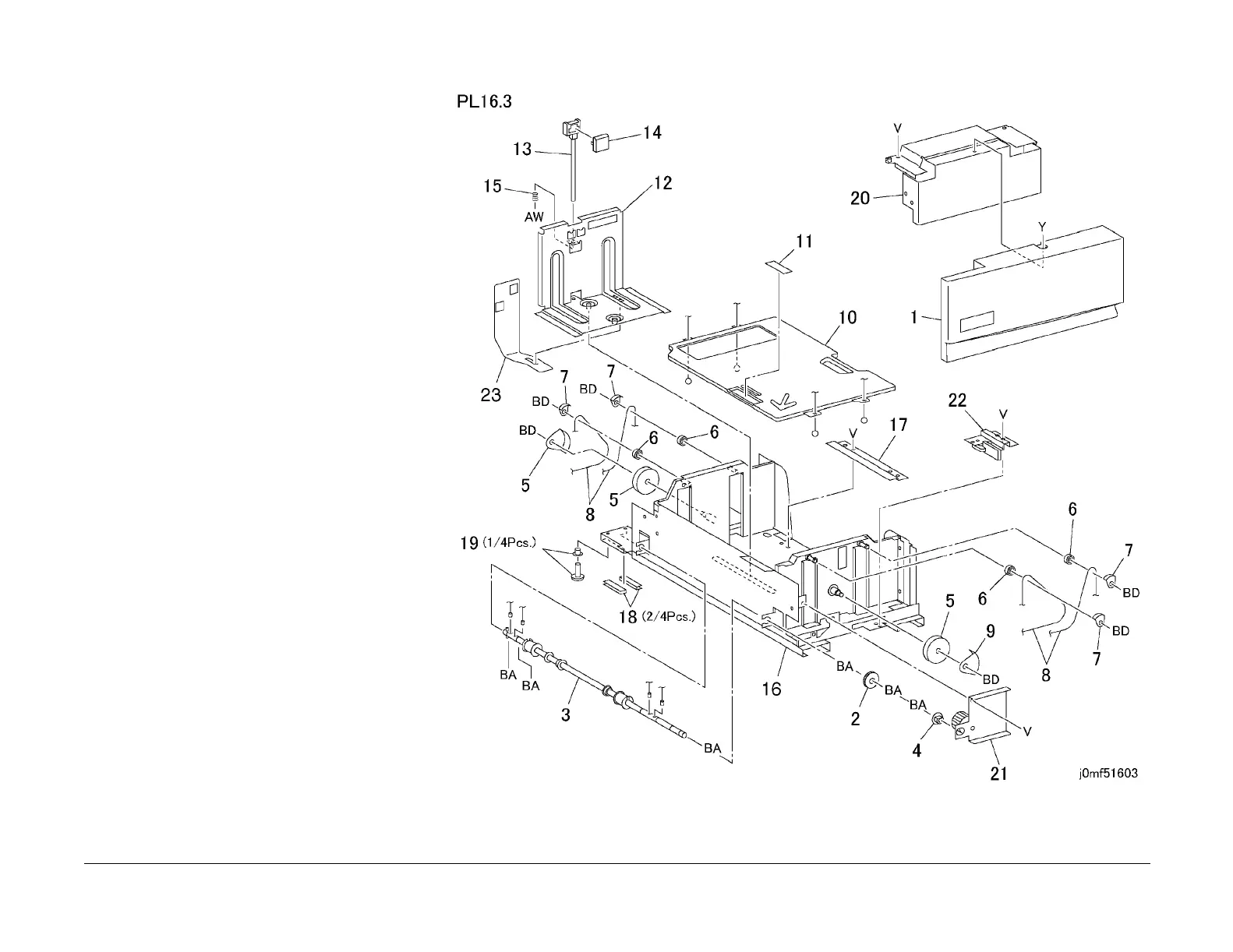

PL 16.3 Tray 3
Item Part Description
1 802E23990 Tray 3 Cover
2 – Pulley (Not Spared)
3 – Lift Shaft (Not Spared)
4 – Bearing (Not Spared)
5 – Pulley (Not Spared)
6 – Pulley (Not Spared)
7 – Cable Guide (Not Spared)
8 020E93120 Pulley Cable
9 – Cable Guide (Not Spared)
10 – Bottom Plate (Not Spared)
11 – Pad (Not Spared)
12 – Side Guide (Not Spared)
13 – Knob (Not Spared)
14 – Knob (Not Spared)
15 009E26970 Spring
16 – Frame (Not Spared)
17 – Bracket (Not Spared)
18 – Spacer (Not Spared)
19 – Spacer (Not Spared)
20 – Bracket (Not Spared)
21 – Brake (Not Spared)
22 – Latch (Not Spared)
23 – Actuator (Not Spared)
