Repairs and Adjustments
REP 12.11 Stapler Assembly
Parts List on PL 17.9
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open the Front Cover.
2. Disconnect Stapler Connectors (2) (Figure 1).

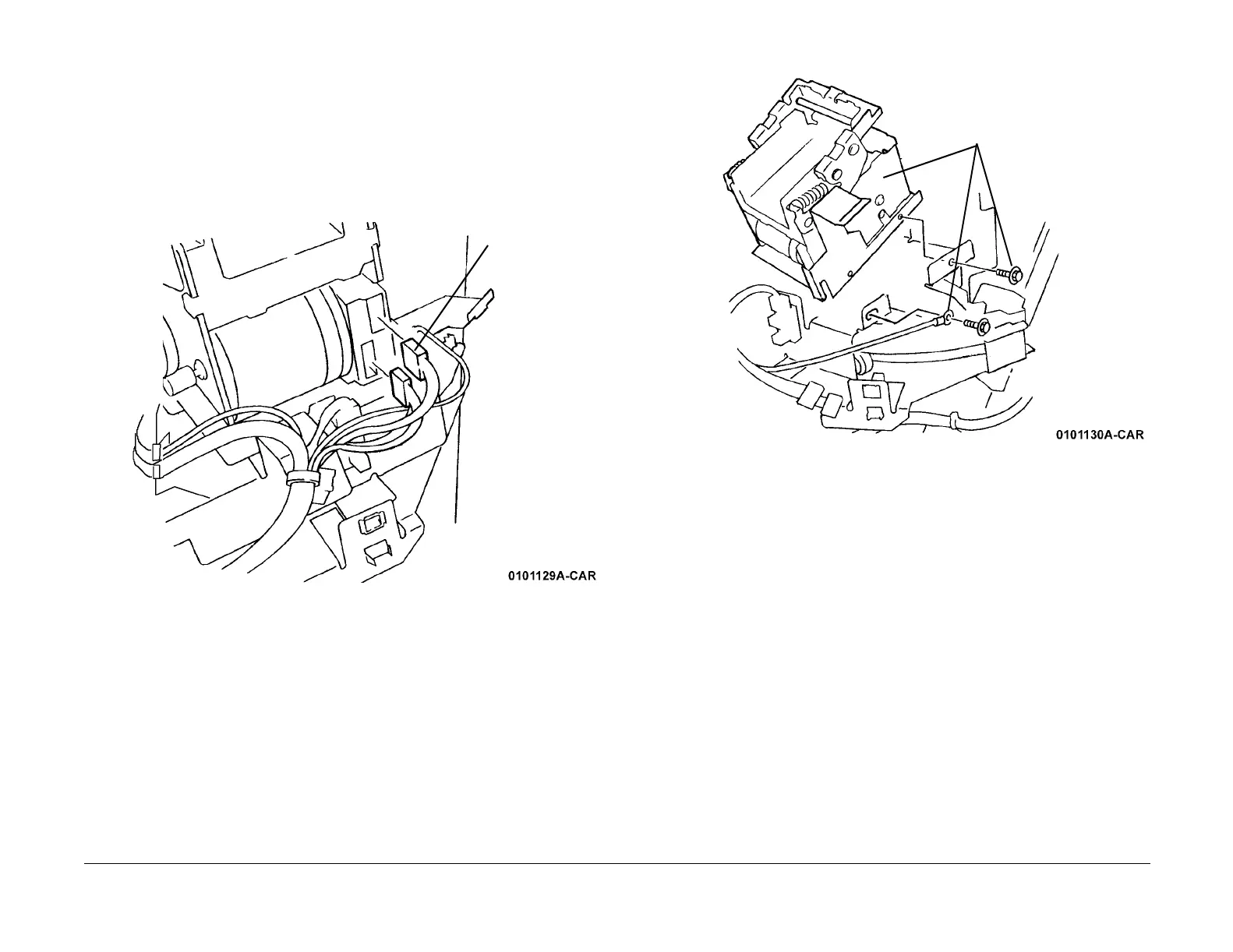

Figure 1 Disconnecting Connectors
3. Remove the Stapler Assembly (Figure 2).
Figure 2 Removing Stapler Assembly
Disconnect Stapler
Connectors (2)
Remove Screws (2),
Ground Wire (1) and
Stapler
