Xerox DocuColor 2240

09/03
4-119
DC 3535/2240/1632, WC M24
REP 12.10
Repairs and Adjustments
Initial issue

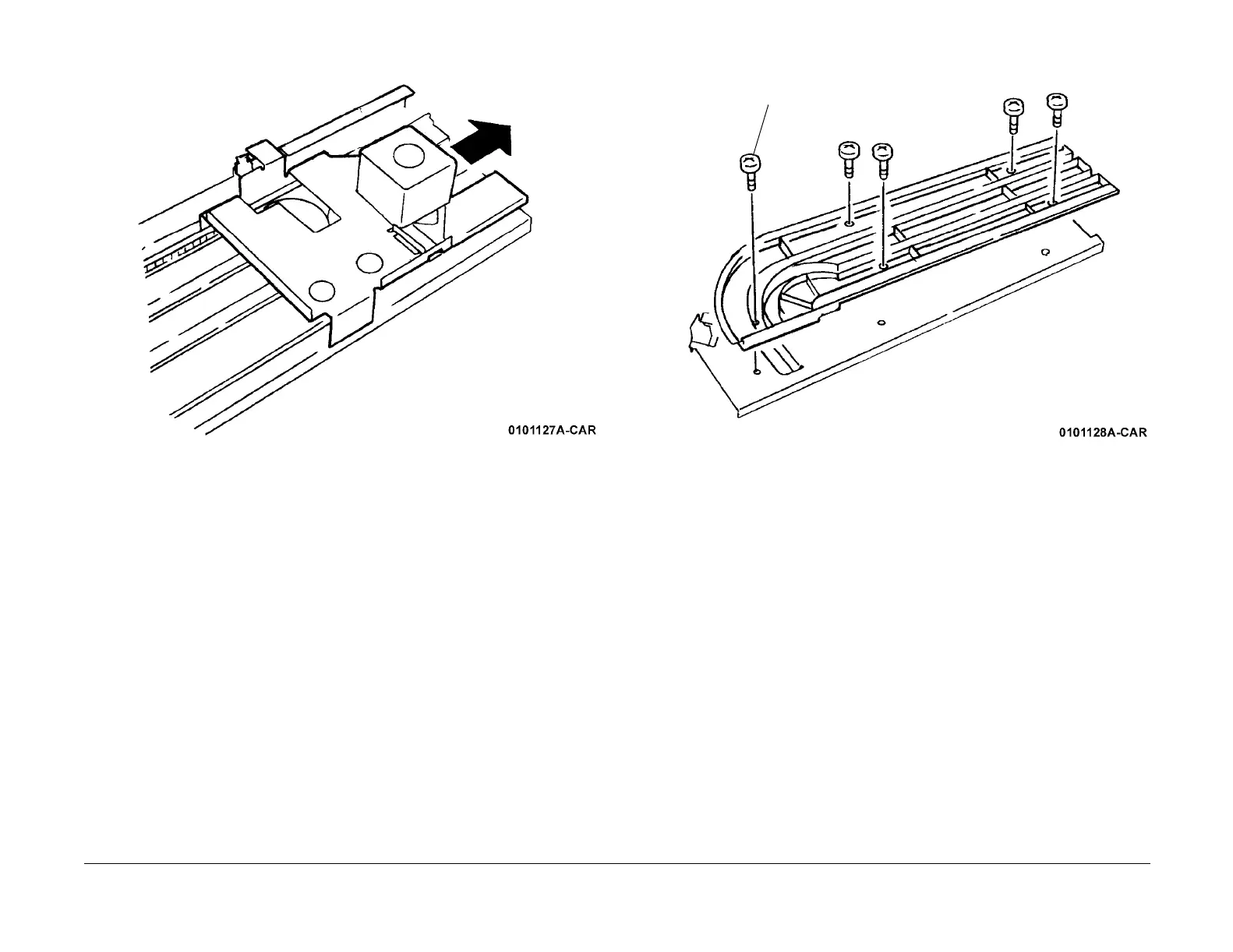

9. Remove the Carriage Assembly (Figure 8).
Figure 8 Removing the Carriage Assembly
10. Remove Screws (5) and remove Rail (Figure 9).
Figure 9 Removing Rail
Screws (5)
