DC 3535/2240/1632, WC M24
PL 16.6
Initial issue
Parts List

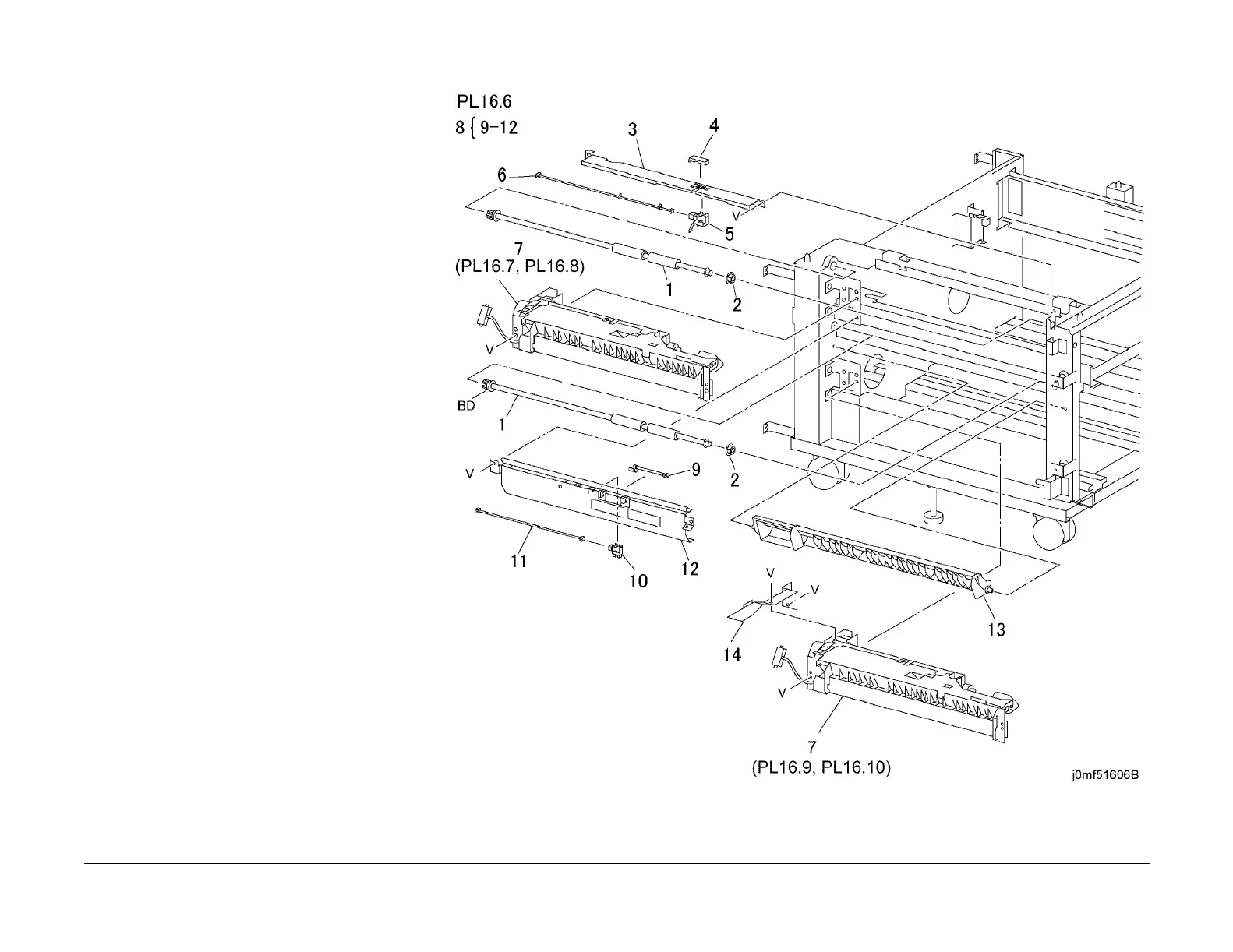

PL 16.6 Paper Feeder: 2 of 2
Item Part Description
1 059K18900 Takeaway Roll
2 – Bearing (Not Spared)
3 – Chute (Not Spared)
4 – Cover (Not Spared)
5 130K61510 Takeaway Sensor
6 162K62810 Wire Harness
7 059K15573 Tray 2/Tray 3 Feeder (REP 7.10
REP 7.11)
8 054K18270 Chute Assembly
9 – Actuator (P/O PL 16.6 Item 8)
10 130E81600 Tray 3 Feedout Sensor
11 – Wire Harness (P/O PL 16.6 Item 8)
12 – Chute (P/O PL 16.6 Item 8)
13 054E18520 Lower Chute
14 – Bracket (Not Spared)
