Xerox DocuColor 2240

09/03
5-10
DC 3535/2240/1632, WC M24
PL 2.1
Initial issue
Parts List

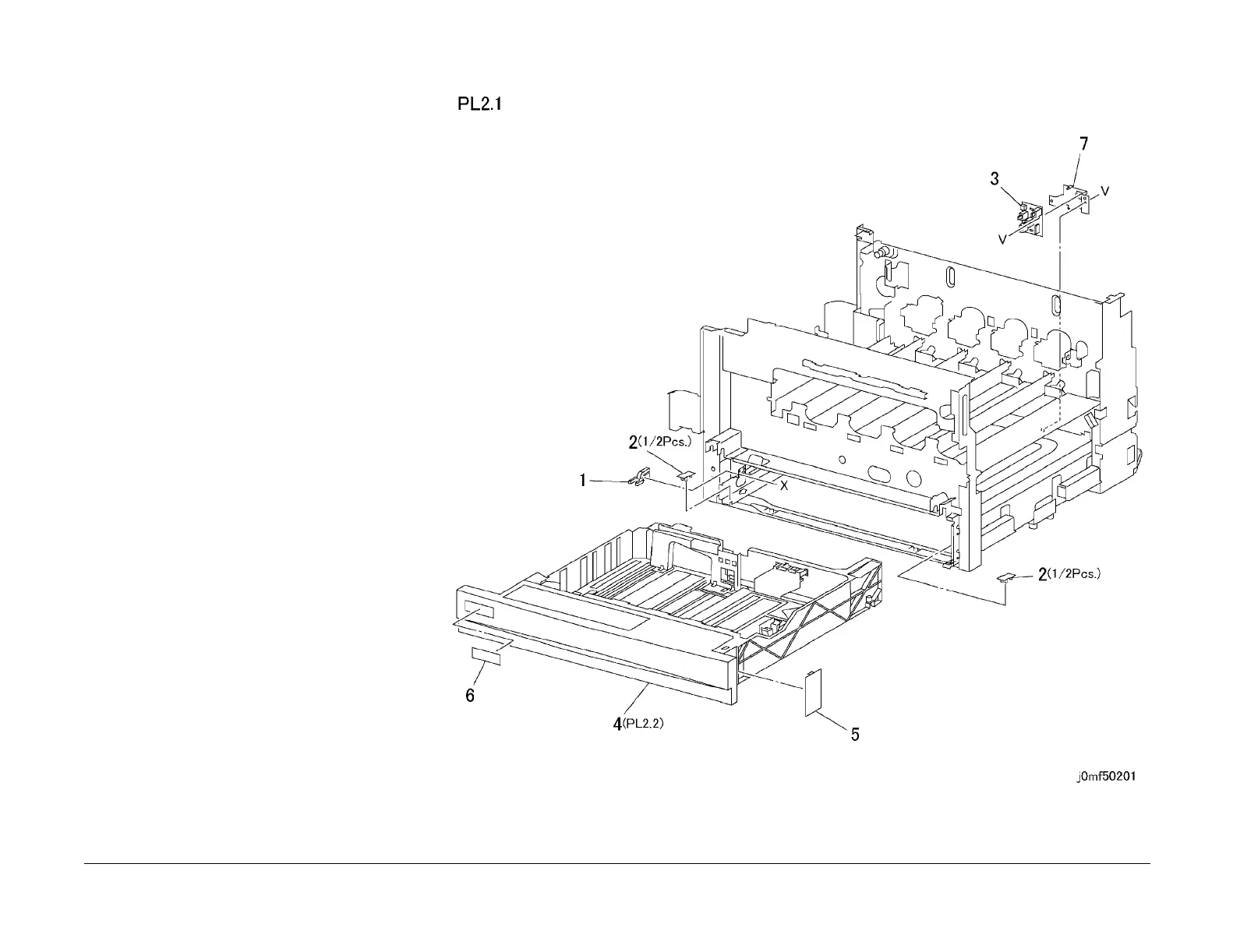

PL 2.1 Tray 1: 1 of 2
Item Part Description
1 003E23672 Stop
2 014E42850 Spacer
3 110K08541 Tray 1 Paper Size Sensor (REP
7.5)
4 050K48981 Tray 1 (DC3535/WC24) (REP 7.8)
– 050K48171 Tray 1 (DC2240/1632) (REP 7.8)
5 – Cover (Not Spared)
6 892E41110 Label (1) (DC2240/1632)
– 892E87140 Label (1) (DC3535/WC24)
7 – Bracket (Not Spared)
