09/03
4-103
DC 3535/2240/1632, WC M24
REP 12.1
Repairs and Adjustments
Initial issue
REP 12.1 H Transport Assembly
Parts List on PL 17.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.

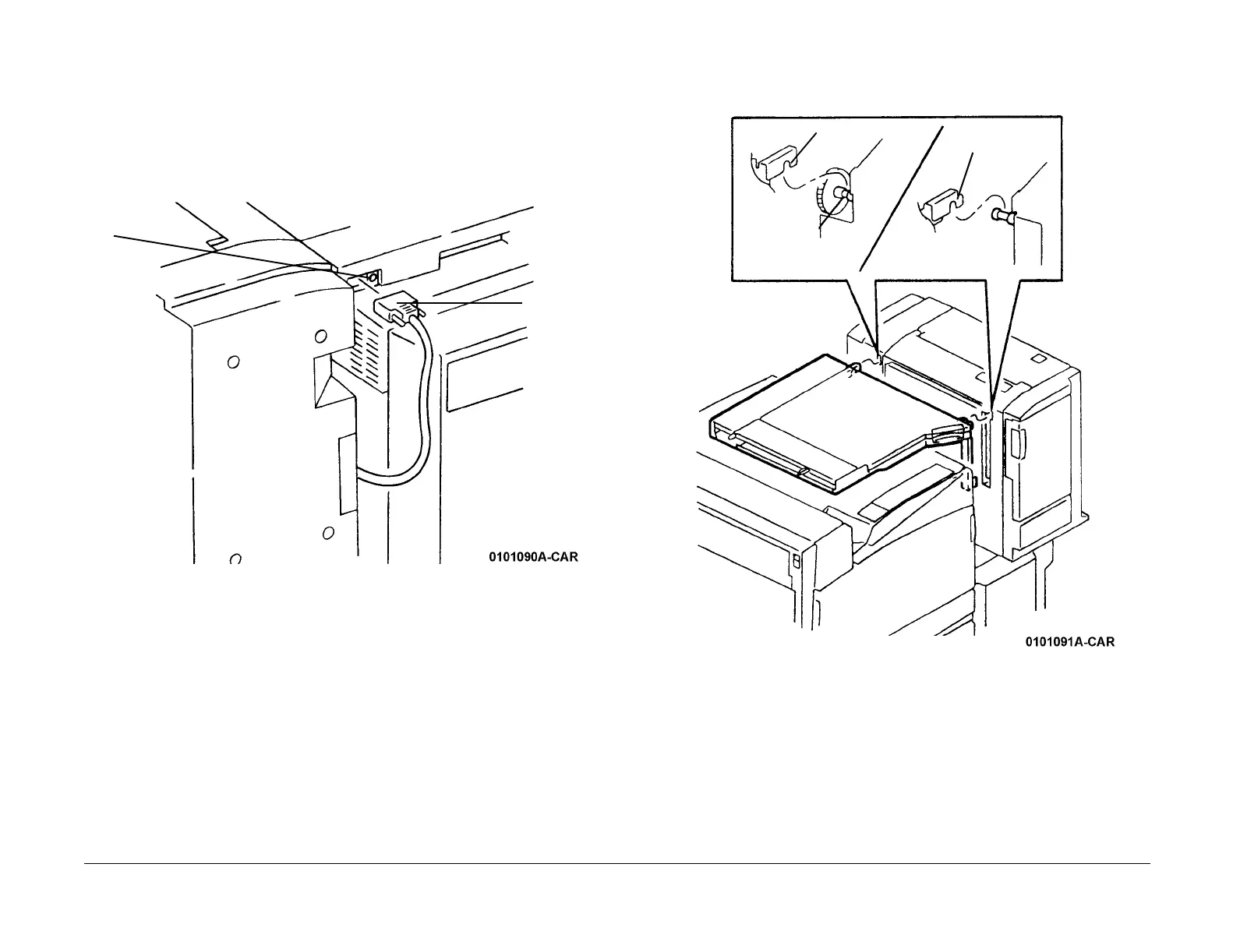

1. Disconnect the H Transport (Figure 1).
Figure 1 Disconnecting the H Transport
2. Disengage Hook (2) from the Stud on both sides and remove H Transport Assembly (Fig-
ure 2).
Figure 2 Removing H Transport
2
Disconnect
Connector
1
Remove
Screw (1)
and Ground
Strap
Hook
Hook
To Next Page
