09/03
4-107
DC 3535/2240/1632, WC M24
REP 12.5
Repairs and Adjustments
Initial issue
REP 12.5 Stack Height Sensor Assembly
Parts List on PL 17.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
CAUTION
The Stack Height Sensor actuator is fragile and prone to breakage. Use care when working in
this area.
1. Remove the Links from the Top Cover Assembly (Figure 1).

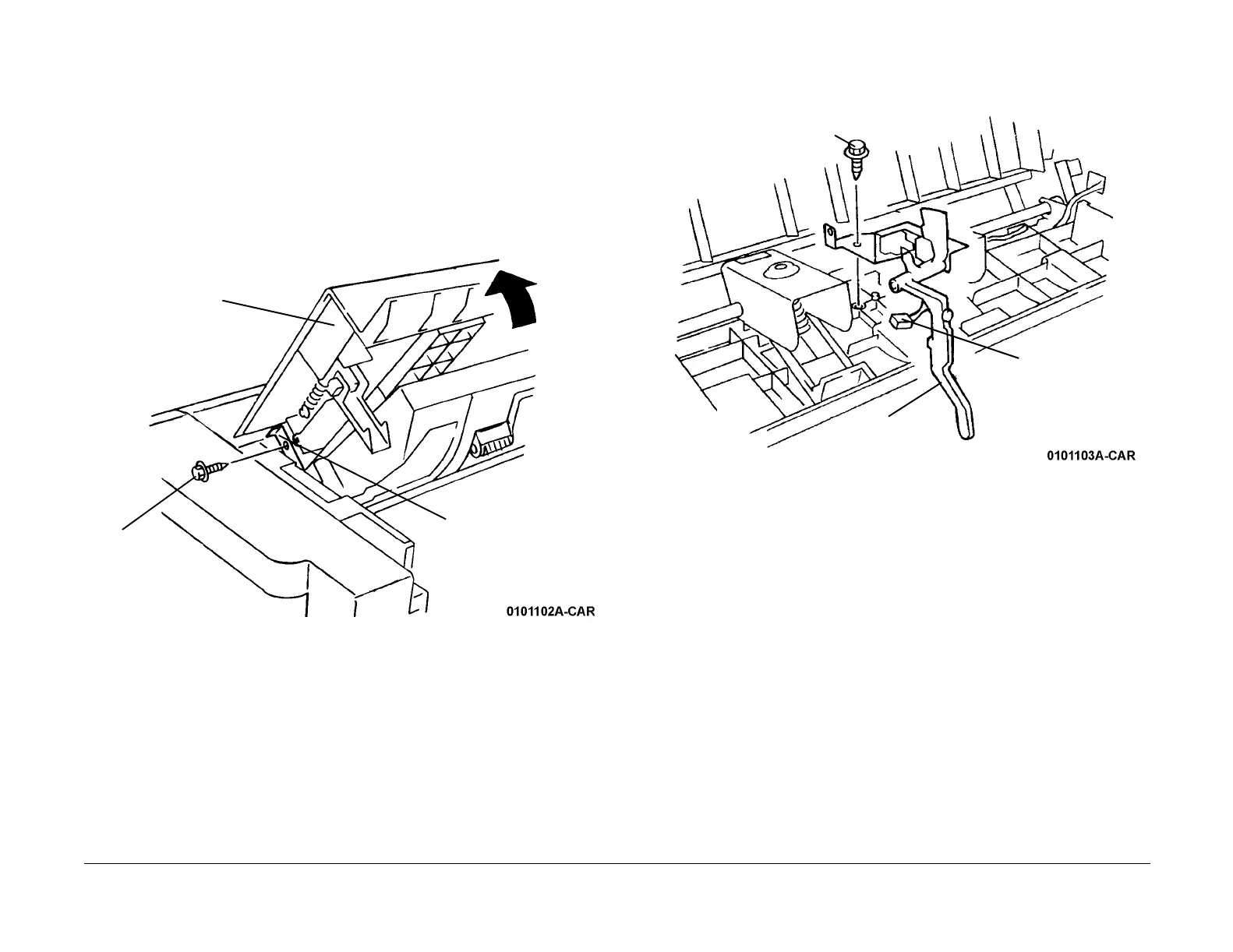

Figure 1 Detaching the Links from Top Cover Assembly
NOTE: It may be necessary to prop the Top Cover open during the next step.
2. Open the Top Cover and remove the Stack Height Sensor Assembly (Figure 2).
Figure 2 Removing Stack Height Sensor Assembly
1
Open Top Cover
2
Remove the
top Screw
(1 each side)
3
Detach
Links on
both sides
1
Remove the Screw
2
Disconnect
Connector and
remove sensor
See CAUTION
To Next Page
