09/03
4-73
DC 3535/2240/1632, WC M24
REP 8.6
Repairs and Adjustments
Initial issue
REP 8.6 Registration Transport Assembly
Parts List on PL 2.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove Rear Left Upper Cover (REP 14.5).
3. Remove Rear Left Middle Cover (REP 14.4).
4. Close Left Cover Assembly.
5. Remove Tray 5 (REP 7.1).
6. Remove Left Cover Assembly (REP 8.1).
7. Remove Registration Transport Assembly (Figure 1).
a. Observe position of harness for later reinstallation.
b. Remove Screws (2).
c. Pivot top of Registration Transport out and disconnect Harness.
d. Lift to remove Registration Transport.

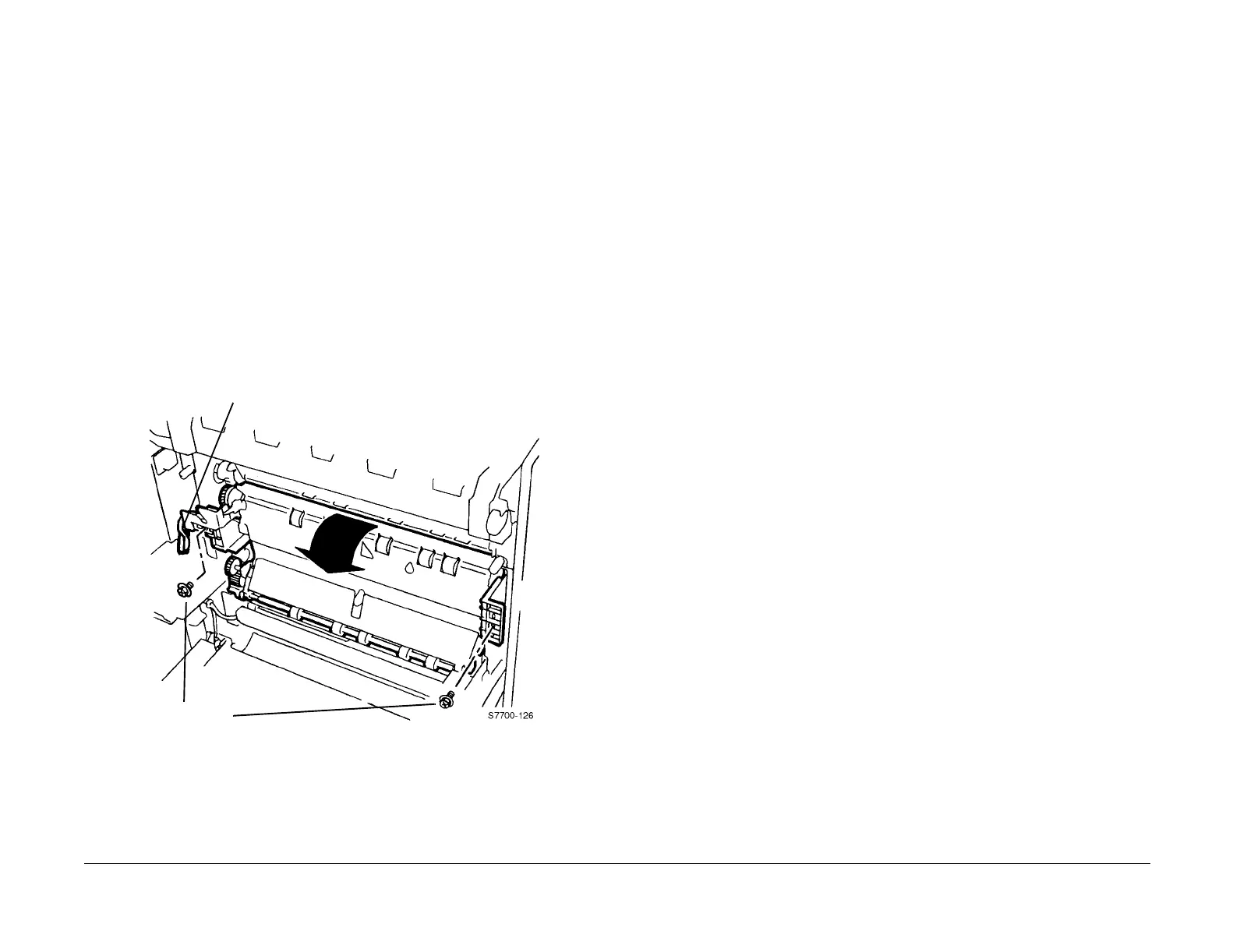

Figure 1 Removing Registration Transport Assembly
Replacement
NOTE: bearing is equipped with two Anti-rotation Tabs. If one breaks during removal, install
bearing so other tab is employed.
NOTE: Check that ground spring is pressing against bronze bushing after installing it.
Harness
Screws (2)
To Next Page
