Repairs and Adjustments
REP 12.19 Finisher Rack Assembly
Parts List on PL 17.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Finisher (REP 12.4).
2. Loosen Feet (Figure 1).

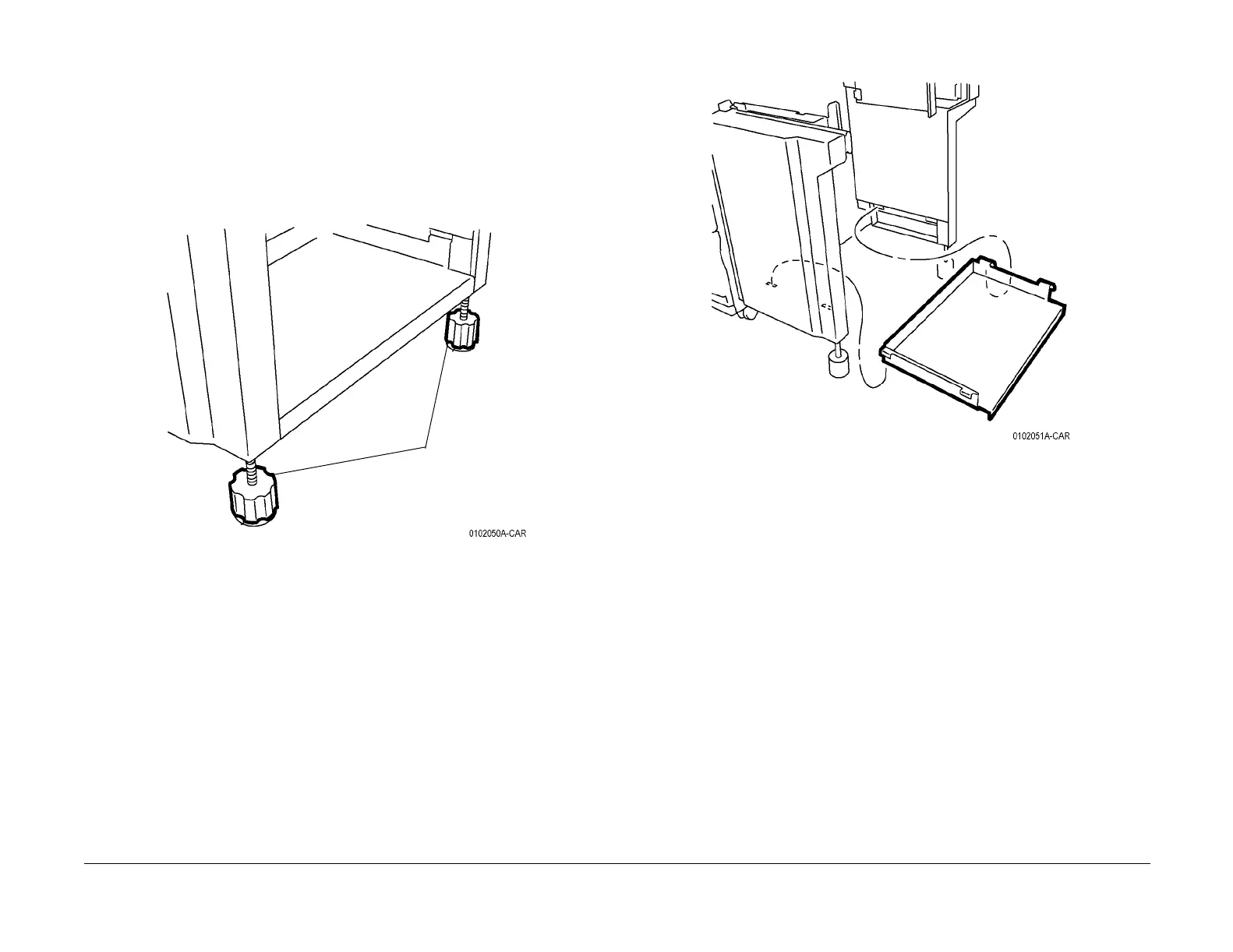

Figure 1 Loosening Feet
3. Remove Bottom Plate (Figure 2).
Figure 2 Removing Bottom Plate
Loosen Feet
