09/03
5-21
DC 3535/2240/1632, WC M24
PL 2.13
Parts List
Initial issue

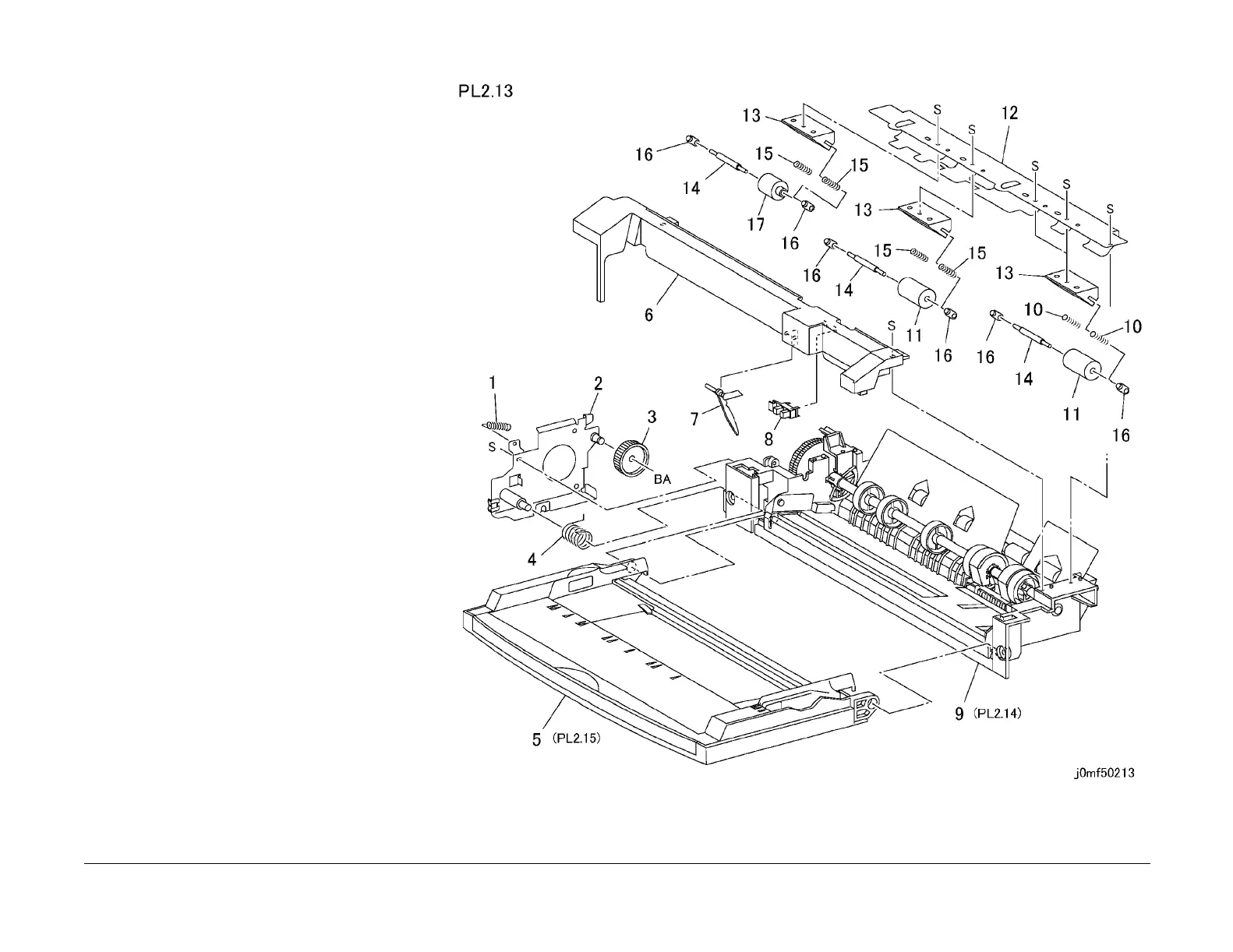

PL 2.13 Tray 5: 2 of 2
Item Part Description
1 – Spring (Not Spared)
2 – Bracket (Not Spared)
3 – Gear (Not Spared)
4 – Spring (Not Spared)
5 050K48182 Tray 5 Assembly (DC2240/1632)
– 050K48861 Tray 5 Assembly (DC3535)
6 – Upper Frame (Not Spared)
7 120E11971 Actuator
8 130E82190 Tray 5 No Paper Sensor
9 – Tray 5 Feed Assembly (Not
Spared)
10 – Spring (Not Spared)
11 – Pinch Roll 1/2 (Not Spared)
12 – Chute (Not Spared)
13 – Guide (Not Spared)
14 – Shaft (Not Spared)
15 – Spring (Not Spared)
16 – Spacer (Not Spared)
17 – Pinch Roll 3 (Not Spared)
To Next Page
