09/03
5-58
DC 3535/2240/1632, WC M24
PL 15.9
Initial issue
Parts List

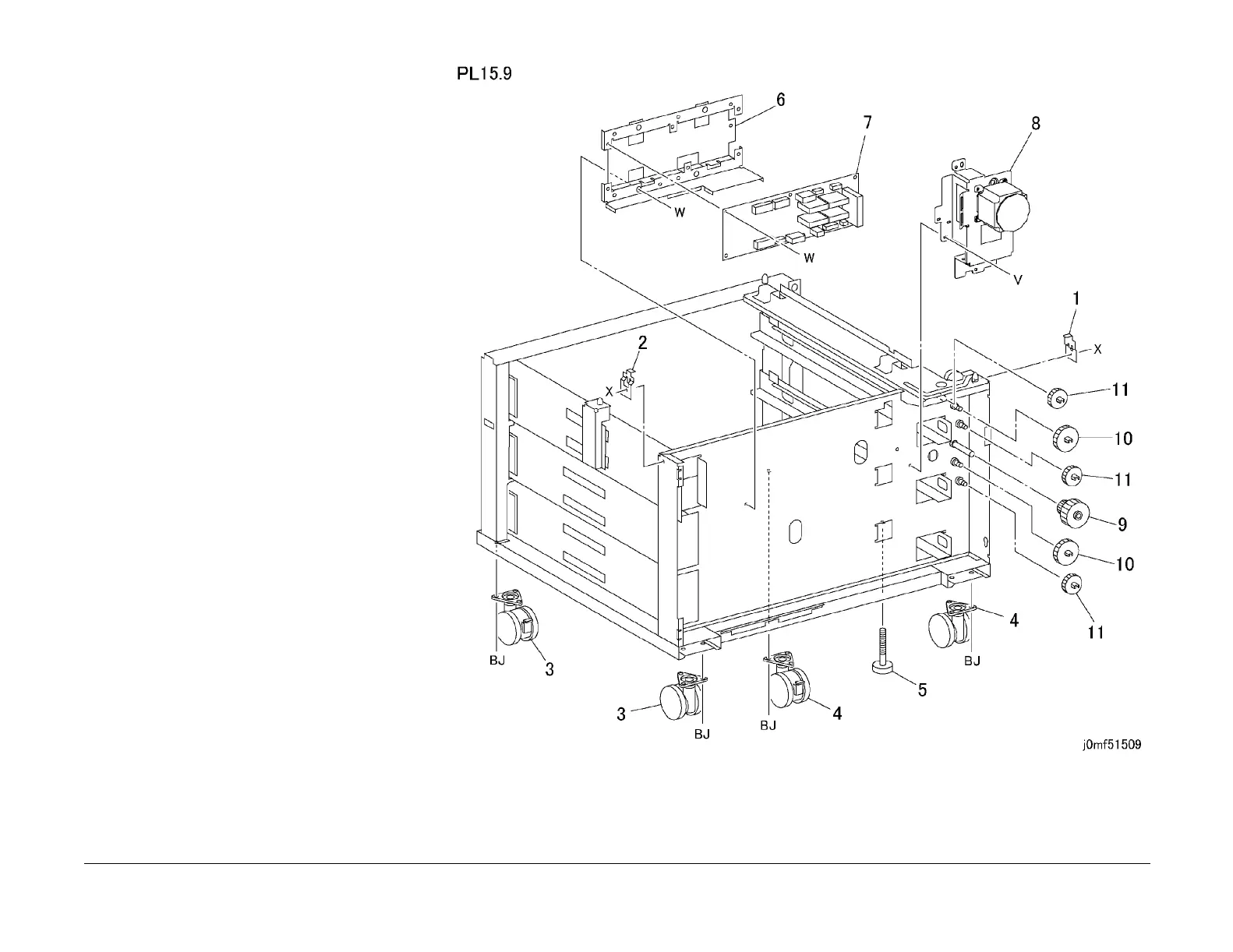

PL 15.9 Electrical Components and
Casters
Item Part Description
1 – Left Connecting Bracket (Not
Spared)
2 – Right Connecting Bracket (Not
Spared)
3 017K92350 Caster
4 017K92360 Caster
5 – Foot (Not Spared)
6 – Bracket (Not Spared)
7 160K85970 Tray Module PWB (WC24)
– 160K91001 Tray Module PWB (DC3535)
8 127K36020 Takeaway Motor 1
9 007E66060 Gear (23/46T)
10 007E66070 Gear (46T)
11 007E66050 Gear (33T)
