09/03
4-142
DC 3535/2240/1632, WC M24
REP 12.20
Initial issue
Repairs and Adjustments
REP 12.20 Lowering Stacker Tray
Parts List on PL 17.11
Removal
If the need arises to lower the Stacker Tray quickly or without power applied perform following:
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Finisher Rear Cover (PL 17.5).
2. While holding the Stacker Tray, move the gear outward and the Stacker Tray is released
(Figure 1).

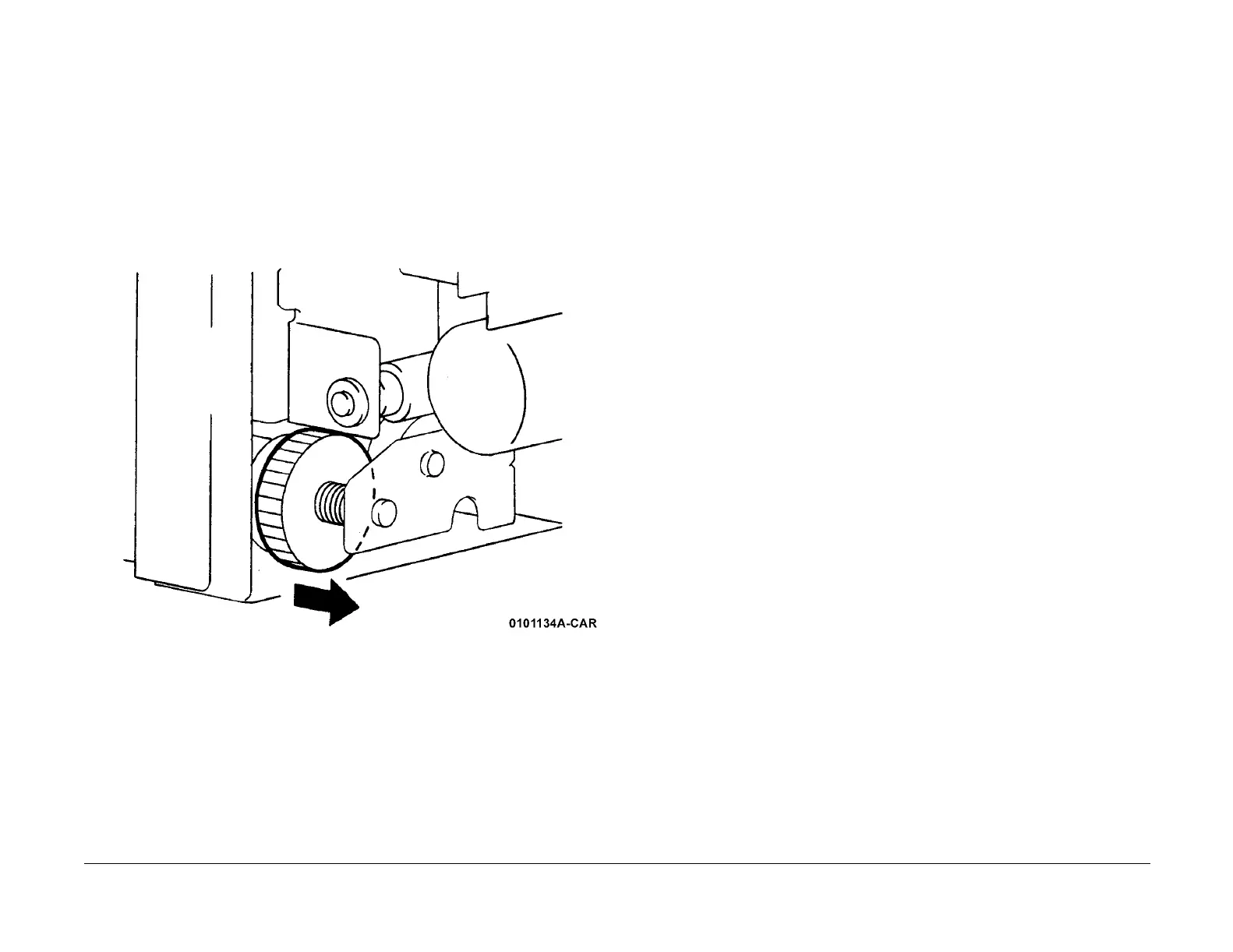

Figure 1 Moving Gear to Lower Stack Tray
To Next Page
