09/03
4-148
DC 3535/2240/1632, WC M24
REP 14.8, REP 14.9
Initial issue
Repairs and Adjustments
REP 14.8 Fuser Cover
Parts List on PL 10.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (Figure 1).
a. Remove Screws (2).
b. Move cover up to release Hidden Tabs (3) and pull out to remove cover.

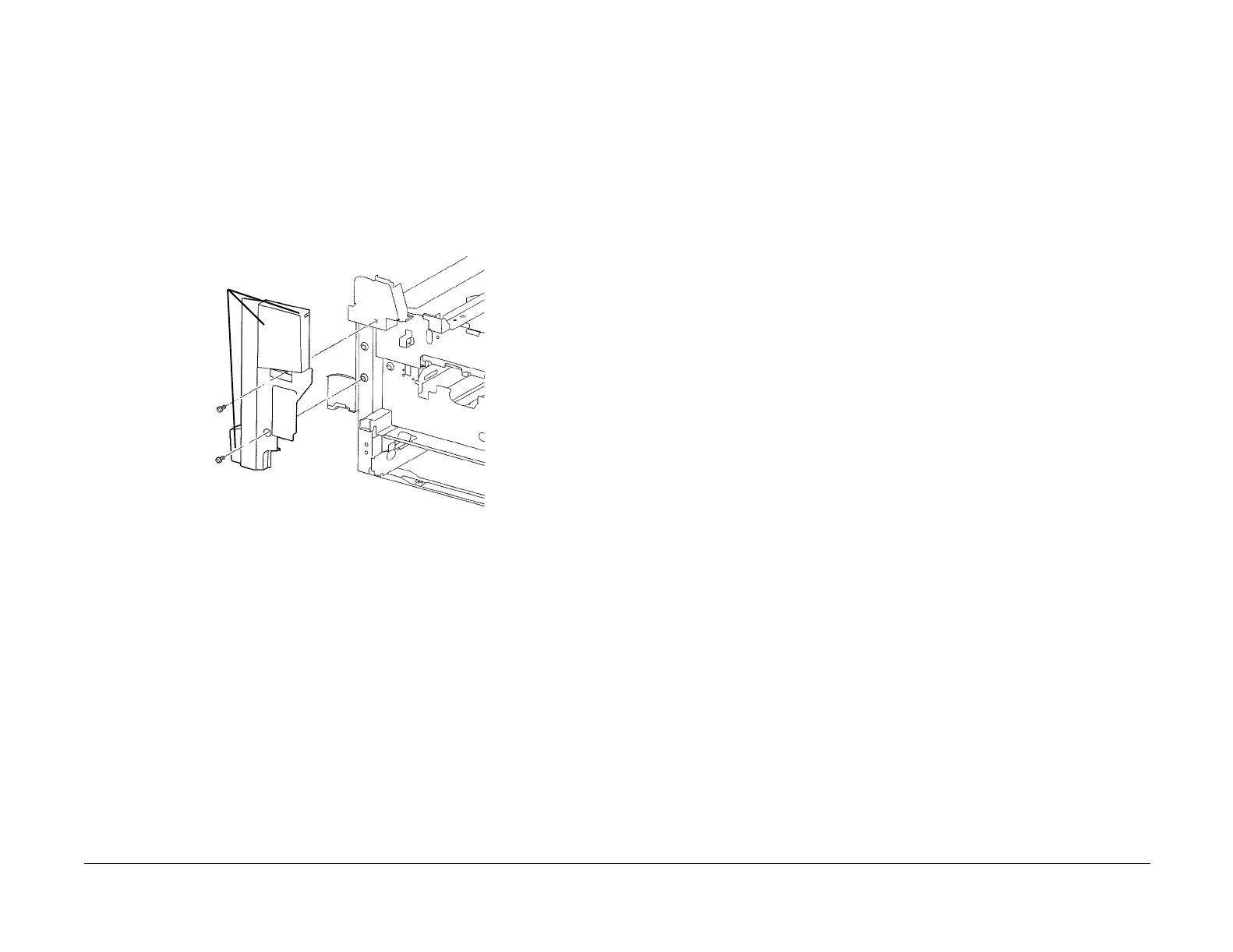

Figure 1 Removing Fuser Cover
REP 14.9 Rear Cover (Tray Module)
Parts List on PL 16.16 (TTM), PL 15.11 (3TM)
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. DC3535 only: Remove the Network Controller (refer to the Network Controller Service
Documentation for removal procedure).
2. If equipped with a Fax Module, unplug phoneline/s and USB Cable.
3. Remove Screws (4) and remove Rear Cover (Tray Module).
Hidden
Tabs
To Next Page
