Repairs and Adjustments
REP 12.8 Finisher Drive Motor
Parts List on PL 17.7
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the Rear Cover (PL 17.5).
2. Remove the Finisher Drive Motor (Figure 1).

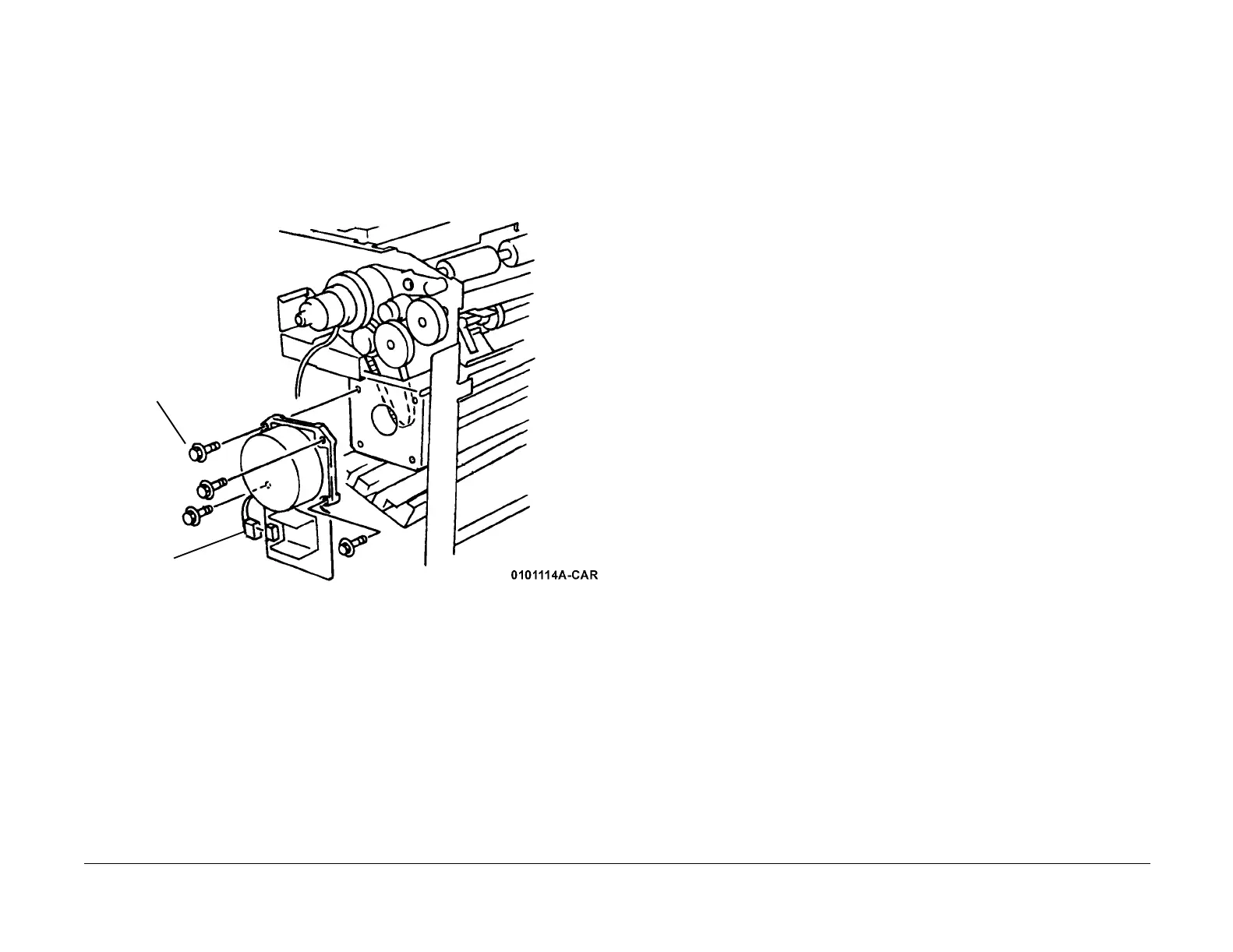

Figure 1 Removing the Finisher Drive Motor
Replacement
Position the Belt to the Guide when installing the Drive Motor.
2
Disconnect Connector
1
Remove Screws
(4) and Finisher
Drive Motor
