09/03
4-97
DC 3535/2240/1632, WC M24
REP 9.23, REP 9.24
Repairs and Adjustments
Initial issue
REP 9.23 1st BTR Roll
Parts List on PL 5.4
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Release Lever and move down.
3. Open Right Side Door.
4. Remove IBT Assembly (REP 9.15).
5. Remove Transfer Belt (REP 9.22).
6. Remove 1st BTR Roll (Figure 1).

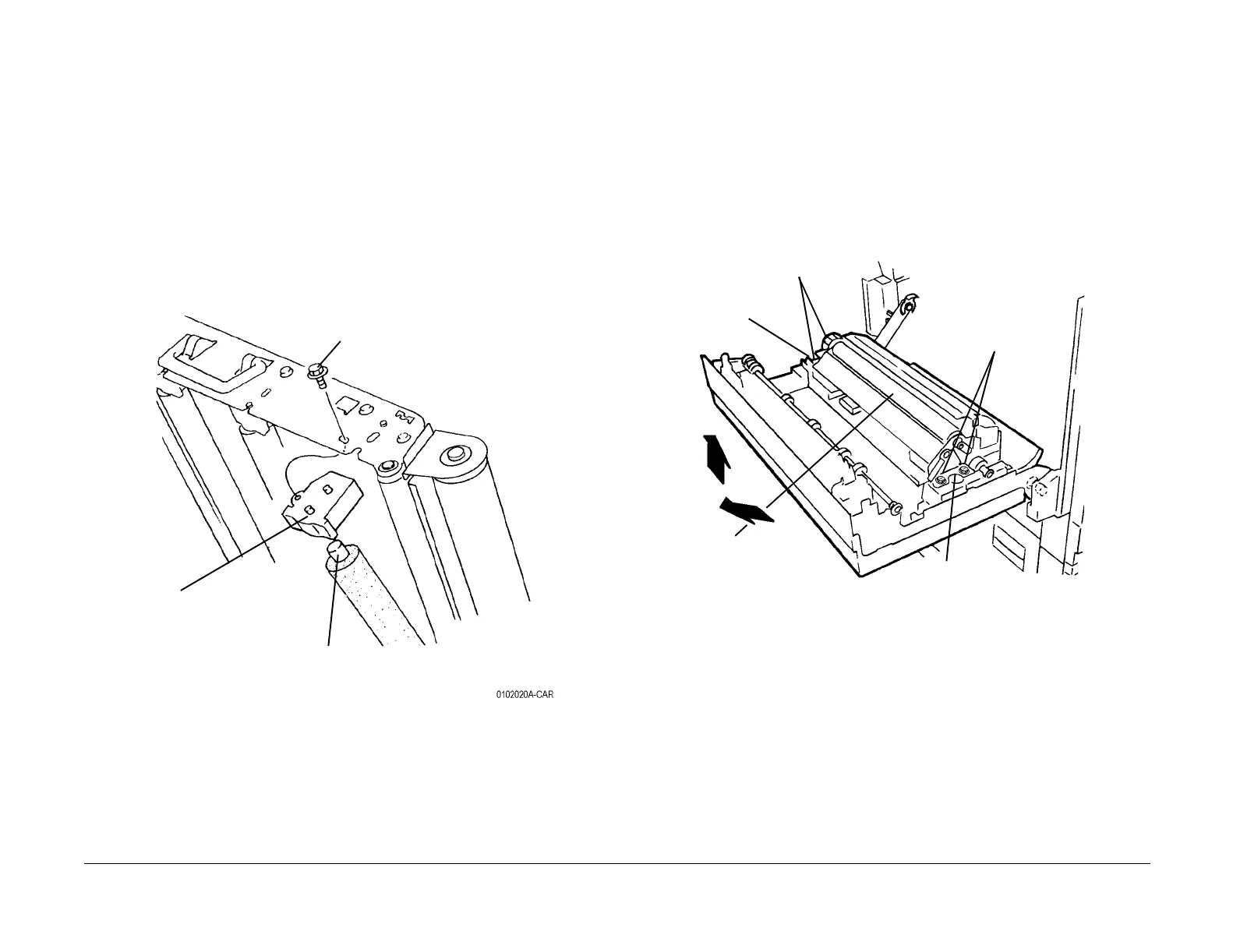

Figure 1 Removing 1st BTR Roll
REP 9.24 2nd BTR Roll
Parts List on PL 2.8
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove 2nd BTR (Figure 1).
a. Open Left Cover Assembly.
b. Remove screws (4).
c. Remove 2nd BTR with Support Brackets
Figure 1 Removing 2nd BTR
Replacement
Go to Detailed Maintenance Activities and reset the HFSI counter for 2nd BTR.
1
Remove
Screw
2
Remove Support
and 1st BTR Roll
NOTE: Front axle
is longest
Front
Axle
Screws
(2)
Screws (2)
Transfer Roll
Assembly
Support
Bracket
Support
Bracket
