09/03
5-40
DC 3535/2240/1632, WC M24
PL 9.3
Initial issue
Parts List

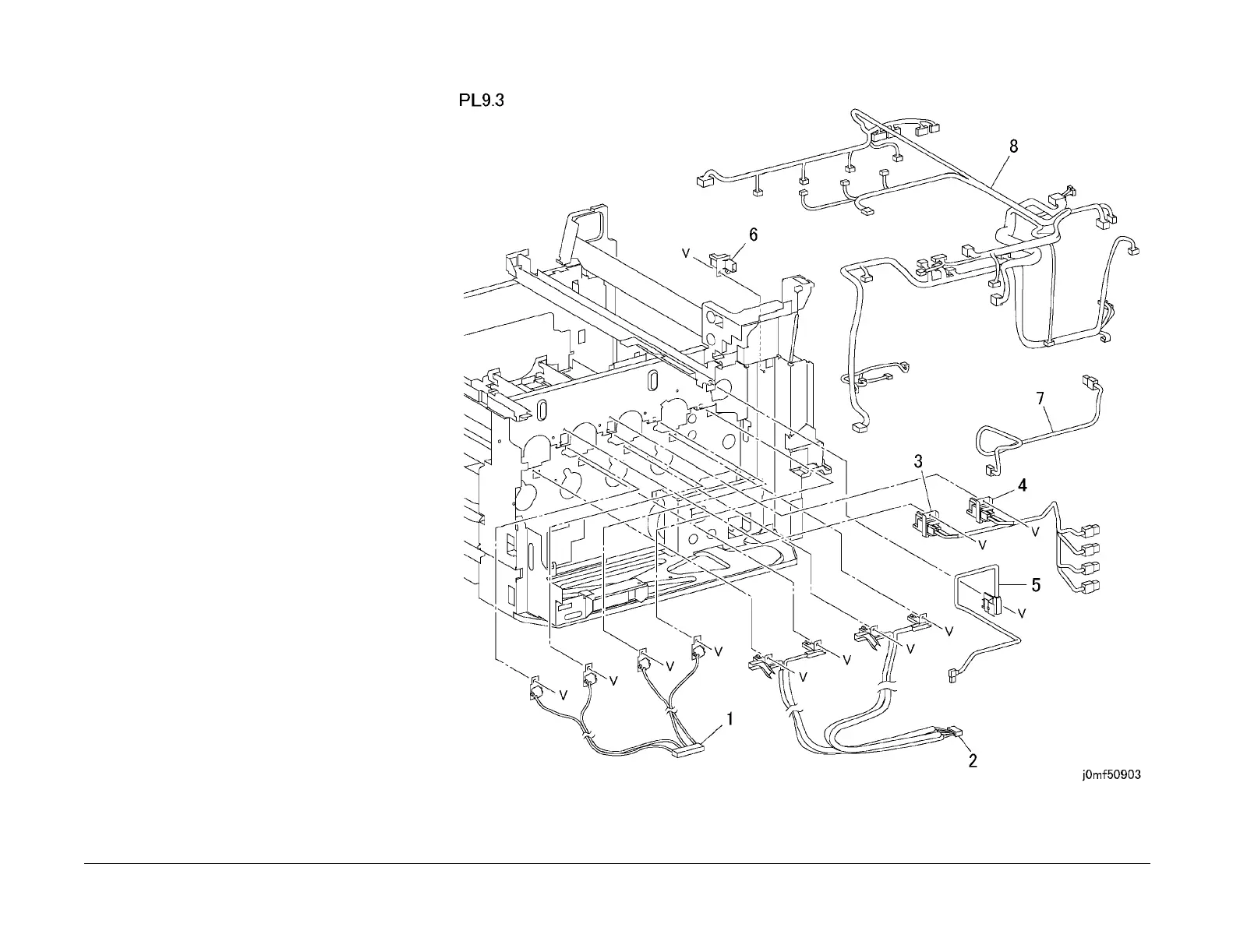

PL 9.3 Electrical Components: 3 of 3
Item Part Description
1 014K81604 Developer Block
2 162K62110 Wire Harness
3 162K55941 Wire Harness (Y, M)
4 162K55971 Wire Harness (C, K)
5 162K56000 2nd Wire Harness
6 113K82310 DTS Connector
7 162K56031 DTS Wire Harness
8 962K09800 DC Wire Harness
(DC2240/1632/WC24)
– 962K09140 DC Wire Harness (DC3535)
