Xerox DocuColor 2240 Service Manual

09/03
2-285
DC 3535/2240/1632, WC M24
12-902
Status Indicator RAPs
Initial issue
12-902 Power On H Transport Exit Sensor
The H Transport Exit Sensor detected a paper at power on, when all the Interlock were closed,
or at initialization.
Procedure
Enter dC330 [012-104] and press Start. Actuate the H Transport Exit Sensor (Figure 1). The
display changes.
YN
Disconnect P/J845 from Finisher Control PWB. Measure voltage at P/J845-B7. +5 VDC
is measured (Figure 2).
YN
Replace Finisher PWB (PL 17.13) (Figure 3).
Check the wire from P/J845-B7 to P/J856-2 on the H Transport Exit Sensor for an open
circuit (Figure 2). If the wire is good, replace the H Transport Exit Sensor (PL 17.4).
Check that the voltage at the customer outlet is in specification and does not drop during
machine start.

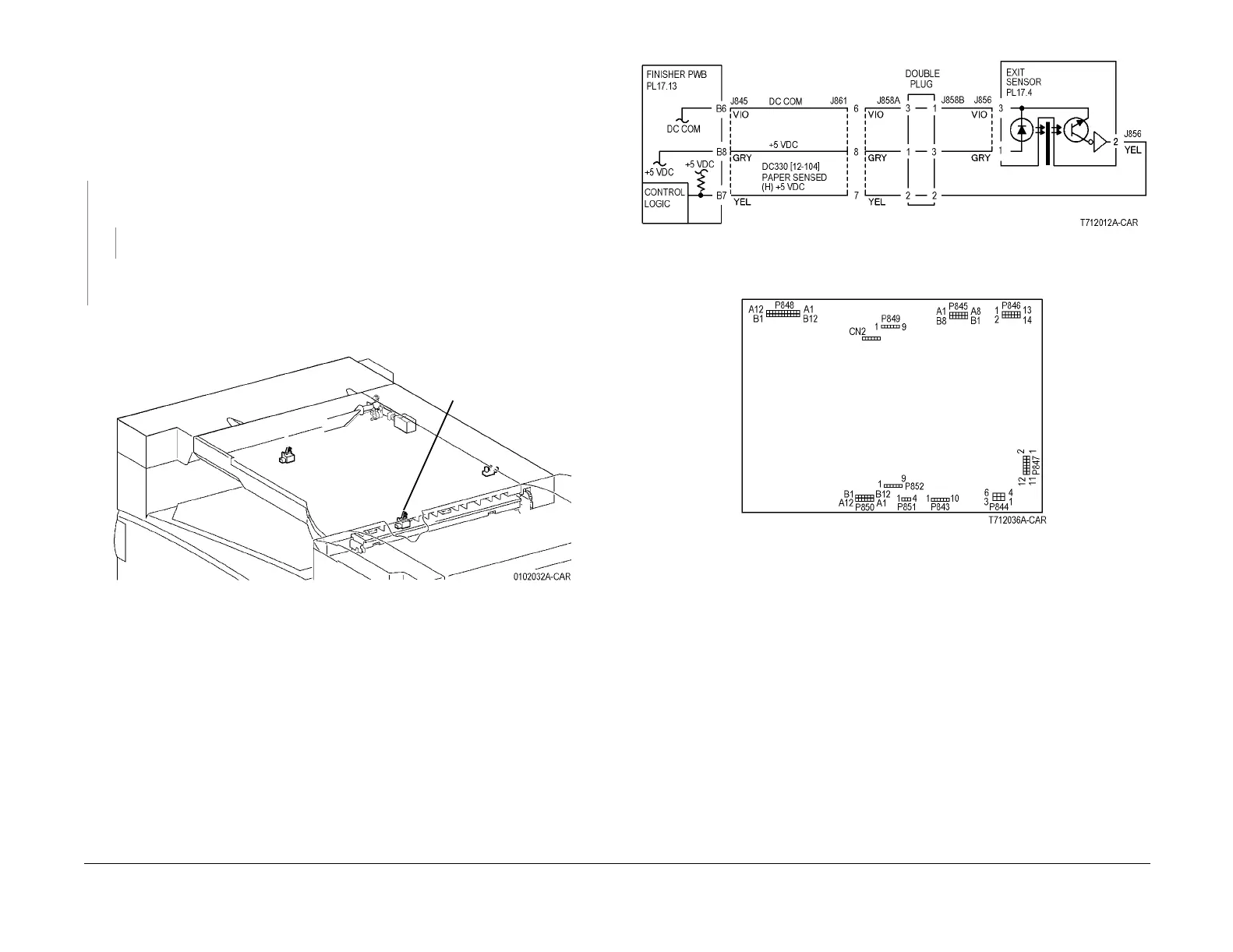

Figure 1 Component Location
Figure 2 12-902 RAP Circuit Diagram - H Transport Exit Sensor
Figure 3 Finisher PWB
Exit
Sensor
