09/03
4-23
DC 3535/2240/1632, WC M24
REP 5.1
Repairs and Adjustments
Initial issue
REP 5.1 DADF
Parts List on PL 20.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.

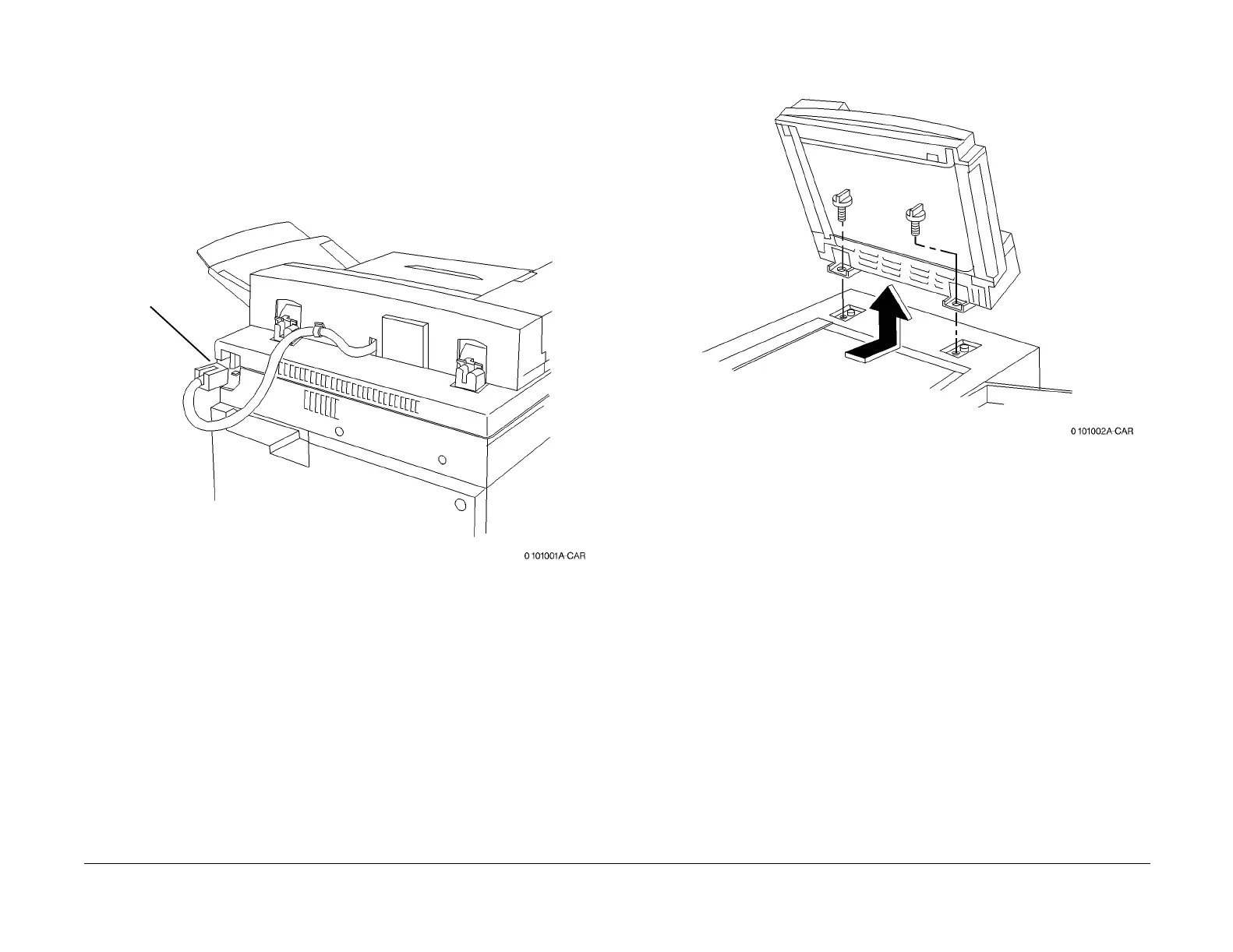

1. Disconnect connector (Figure 1).
Figure 1 Disconnecting Connector
2. Remove Screws (2) and remove DADF (Figure 2).
Figure 2 Removing DADF
Replacement
1. Check DADF Side Registration (ADJ 5.1).
Check DADF Top Registration (ADJ 5.5).
Connector
To Next Page
