09/03
4-41
DC 3535/2240/1632, WC M24
REP 6.1
Repairs and Adjustments
Initial issue
REP 6.1 ROS
Parts List on PL 3.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Right Cover (REP 14.3).
2. Remove Rear Cover (REP 14.2).
CAUTION
Do not remove the covers on the ROS cleaning openings. Image quality defects could result.
3. Remove ROS (Figure 1).
NOTE: Carefully observe position of wiring harness for later reinstallation.

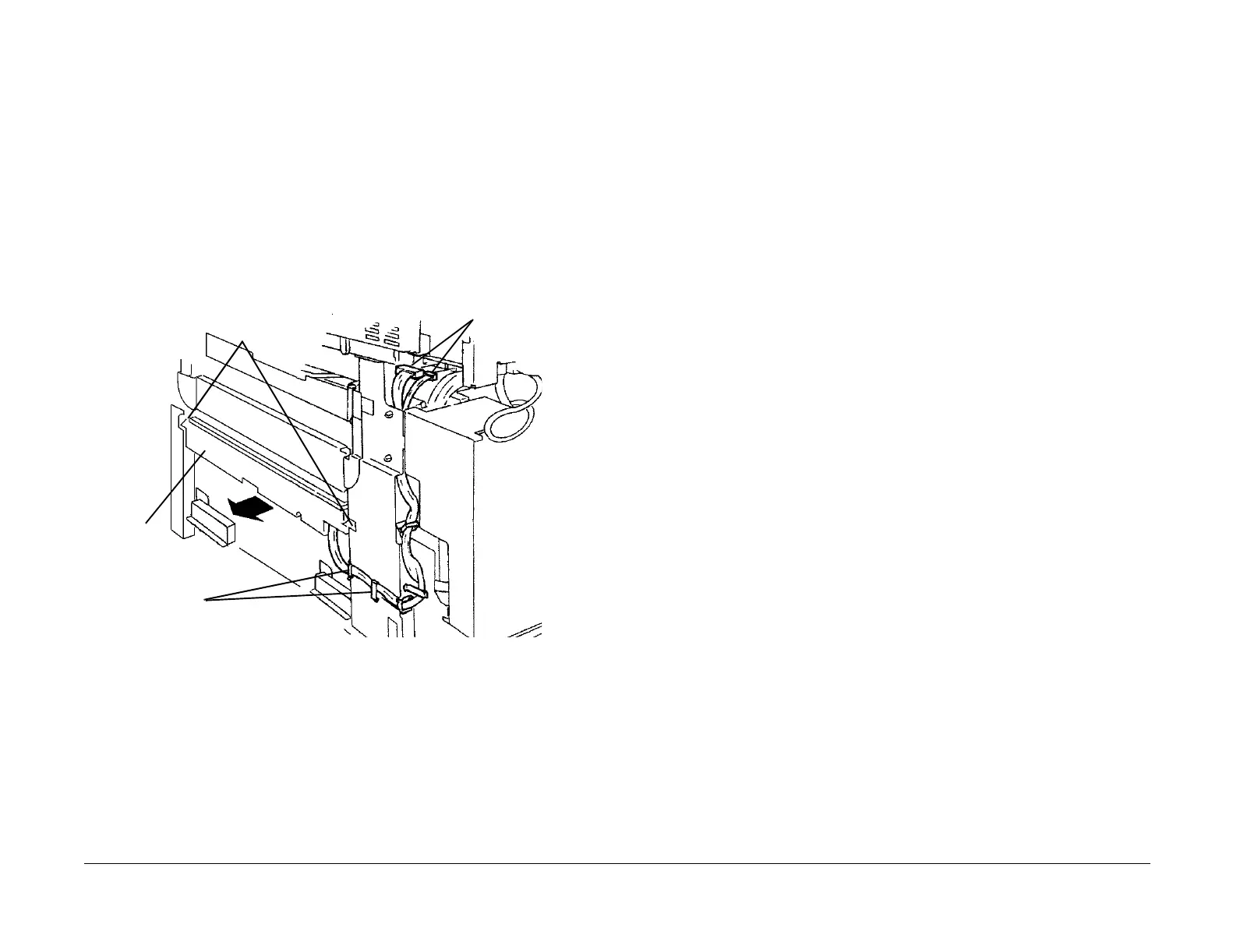

Figure 1 Removing ROS
Replacement
After machine reassembly, adjust the Color Registration (ADJ 9.6).
3
Remove Harness
from clips
2
Disconnect
connectors (2)
1
Remove screws (2)
4
Remove the
ROS
To Next Page
