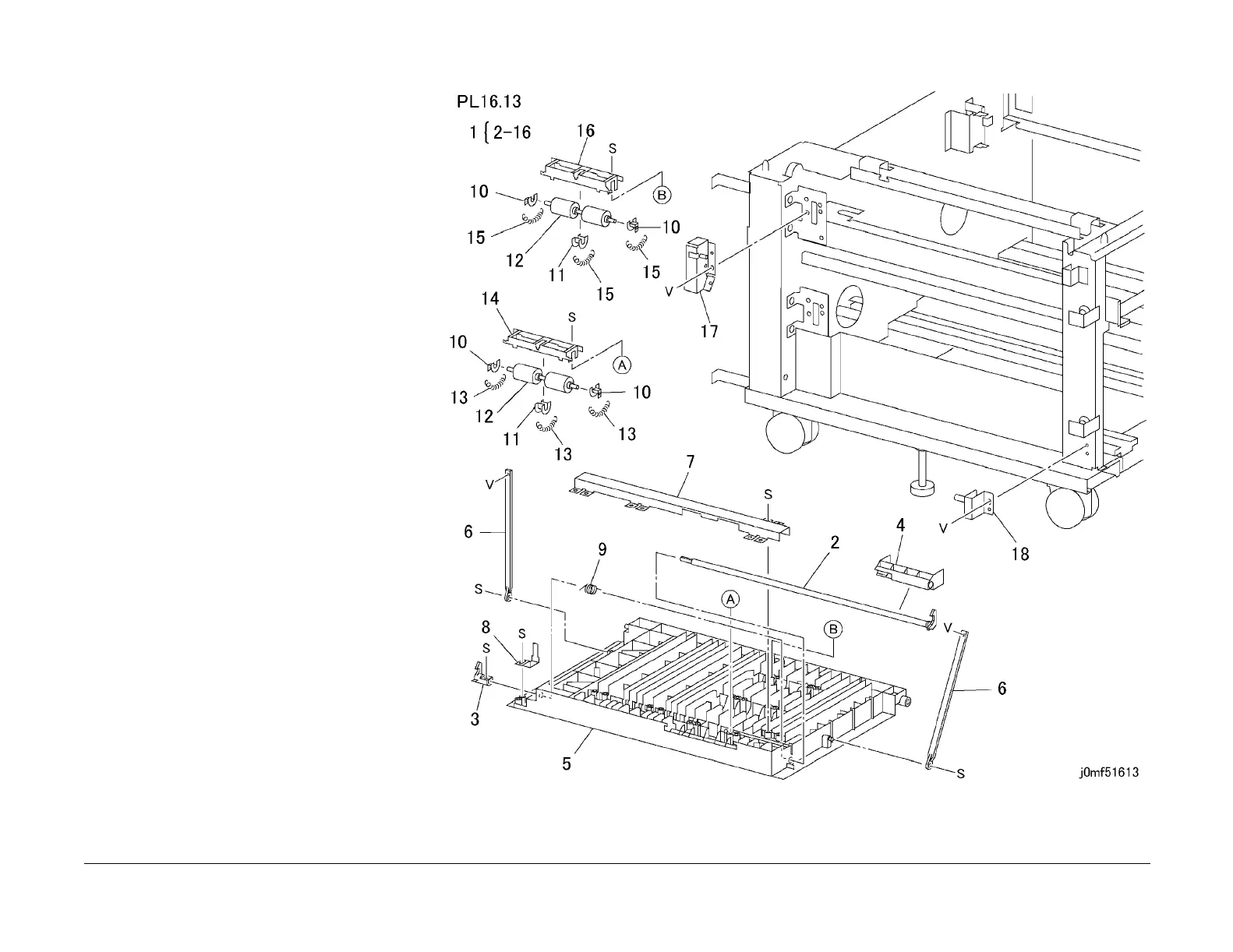

PL 16.13 Left Cover Assembly
Item Part Description
1 802K25731 Left Cover Assembly (REP 14.11)
2 003E53700 Shaft
3 003E53710 Hook
4 011E10800 Handle
5 – Left Cover (P/O PL 16.13 Item 1)
6 – Support (P/O PL 16.13 Item 1)
7 – Cover (P/O PL 16.13 Item 1)
8 – Actuator (P/O PL 16.13 Item 1)
9 – Spring (P/O PL 16.13 Item 1)
10 – Bearing (P/O PL 16.13 Item 1)
11 – Bearing (P/O PL 16.13 Item 1)
12 – Pinch Roll (P/O PL 16.13 Item 1)
13 809E28960 Spring
14 – Bracket (P/O PL 16.13 Item 1)
15 809E28980 Spring
16 – Bracket (P/O PL 16.13 Item 1)
17 015K49470 Interlock Switch
18 – Bracket (Not Spared)
To Next Page
