Xerox DocuColor 2240 Service Manual

09/03
4-146
DC 3535/2240/1632, WC M24
REP 14.5, REP 14.6
Initial issue
Repairs and Adjustments
REP 14.5 Rear Left Upper Cover
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Open Left Cover Assembly.
3. Remove Rear Left Upper Cover (Figure 1).
a. Remove Screw (1).
b. Push end of cover in direction shown to release Hidden Tabs (2).
c. Pull up to release Hidden Tab (1) and remove Rear Left Upper Cover.

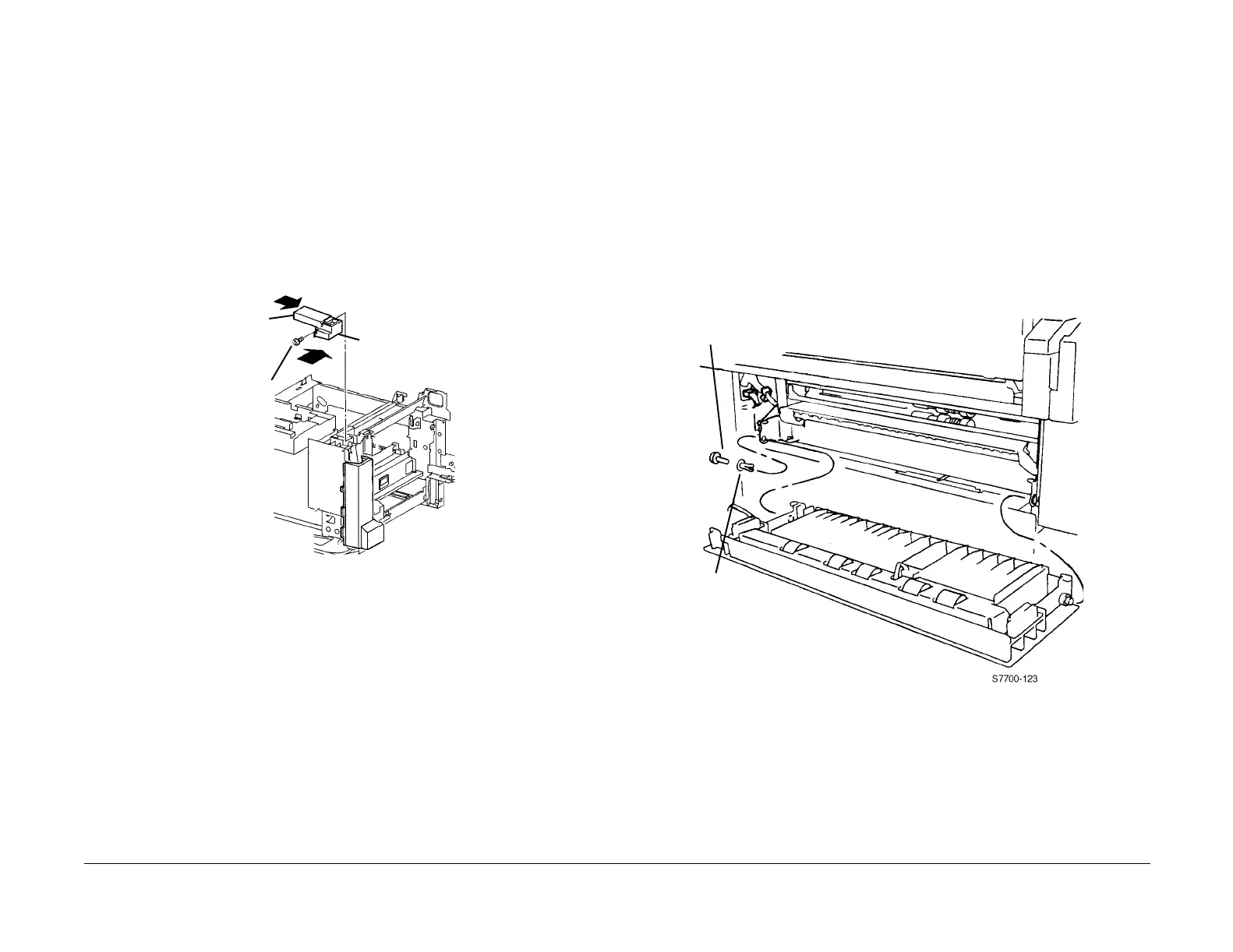

Figure 1 Removing Rear Left Upper Cover
REP 14.6 Left Lower Cover Assembly
Parts List on PL 2.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Left Lower Cover Assembly (Figure 1).
a. Open Left Lower Cover Assembly.
b. Carefully observe position of wiring harness for later reinstallation.
c. Disconnect harness connector and remove harness from harness guide.
d. Use flat tipped screwdriver to pry out Pivot Lock.
e. Remove Pivot Pin Sleeve.
f. Remove Lower Left Cover.
Figure 1 Removing Left Lower Cover Assembly
Replacement
NOTE: Partially install Pivot Sleeve. Then install Left Lower Cover Assembly and push in Pivot
Sleeve.
Hidden
Tabs (2)
Hidden
Tab (1)
Screw
Pivot
Lock
Pivot
Sleeve
