Xerox DocuColor 2240

09/03
5-38
DC 3535/2240/1632, WC M24
PL 9.1
Initial issue
Parts List

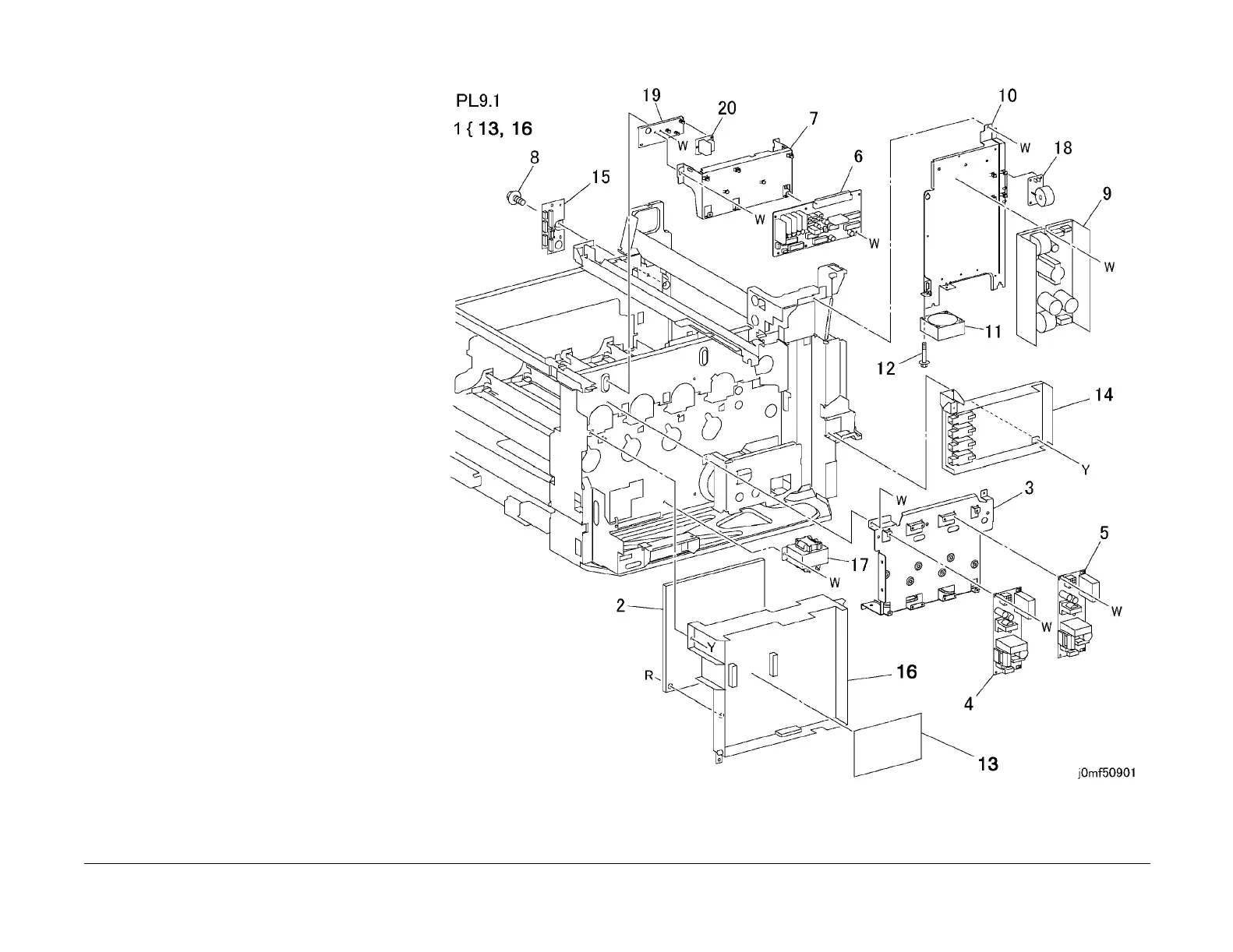

PL 9.1 Electrical Components: 1 of 3
Item Part Description
1 105K18772 DEV/BTR2/DTS HVPS
(DC2240/1632/WC24) (REP 1.6
REP 1.7)
– 105K20061 DEV/BTR2/DTS HVPS (DC3535)
(REP 1.6 REP 1.7)
2 105E09981 BCR HVPS (DC2240/1632/ WC24)
(REP 1.6 REP 1.7)
– 105E11341 BCR HVPS (DC3535) (REP 1.6
REP 1.7)
3 – LVPS Bracket (Not Spared) (REP
1.1)
4 105E11131 3.3V LVPS (110V) (REP 1.4)
– 105E09811 3.3V LVPS (220V) (REP 1.4)
5 105E09821 5V LVPS (110V) (REP 1.4)
– 105E09831 5V LVPS (220V) (REP 1.4)
6 160K76803 Interface (I/F) PWB
(DC2240/1632/WC24) (REP 1.8)
– 160K87480 Interface PWB (DC3535) (REP 1.8)
7 – Bracket (Not Spared) (MEXICO)
8 – Screw (Not Spared)
9 105E09761 24V LVPS (220V) (REP 1.5)
– 105K18642 24V LVPS (110V) (REP 1.5)
10 – 24V LVPS Chassis (Not Spared)
(REP 1.9)
11 127K29330 LVPS Fan
12 – Screw (Not Spared)
13 – HVPS Control PWB (P/O PL 9.1
Item 1)
14 105E09971 BTR1 HVPS (REP 1.10)
15 – Connector Chassis (Not Spared)
16 – HVPS Chassis (P/O PL 9.1 Item 1)
17 103E27220 Resistor (220V)
– 104E93610 Choke Coil (110V)
18 160K84400 Fuser Noise Filter
19 – Plate (Not Spared)
20 160K87730 Interlock Relay PWB
(DC2240/1632/WC24)
– 160K88291 Interlock Relay PWB (DC3535)
