Repairs and Adjustments
Initial issue
REP 14.10 Inner Cover
Parts List on PL 8.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (REP 14.8).
3. Remove Waste Cartridge Cover (REP 9.3).
4. Remove Inner Cover (Figure 1).
a. Open Harness Clip and remove harness from Clip.
b. Remove Screw and remove Harness Cover.

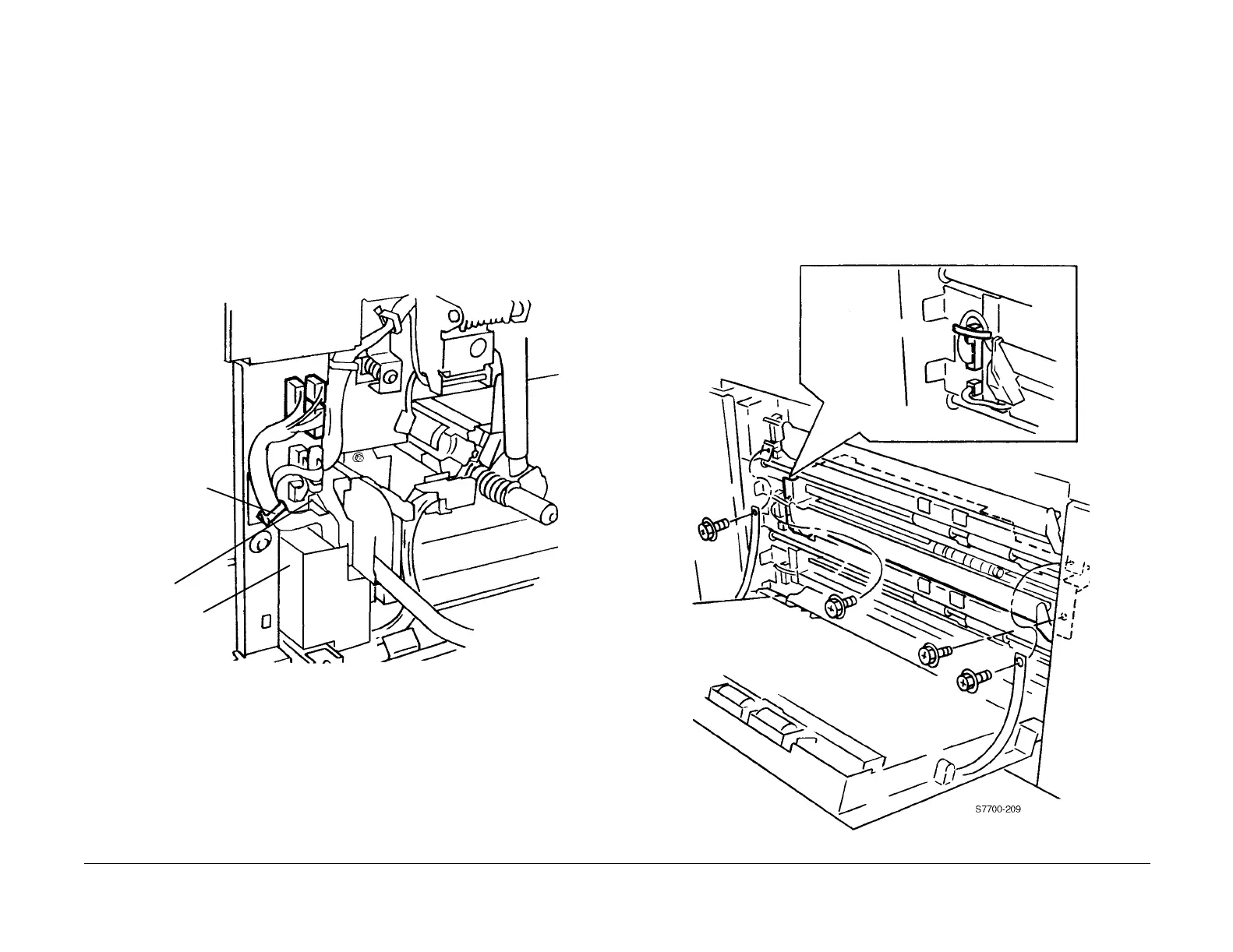

Figure 1 Removing Inner Cover
REP 14.11 Left Cover Assembly
Parts List on PL 16.13 (TTM), PL 15.10 (3TM)
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Left Lower Cover (REP 14.12).
2. Remove Left Cover Assembly (Figure 1).
a. Remove Screws (2) and Straps (2) from frame.
b. Remove Screw (1) and Pivot Support and remove Left Cover Assembly.
Figure 1 Removing Left Cover Assembly
Harness Clip
Inner
Cover
Screw
To Next Page
