REP 7.10 Tray 2 Feeder (TTM)
Parts List on PL 16.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 2.
2. Remove the Left Cover Assembly (REP 14.11)
3. Remove the Tray 2 Feeder (Figure 1).

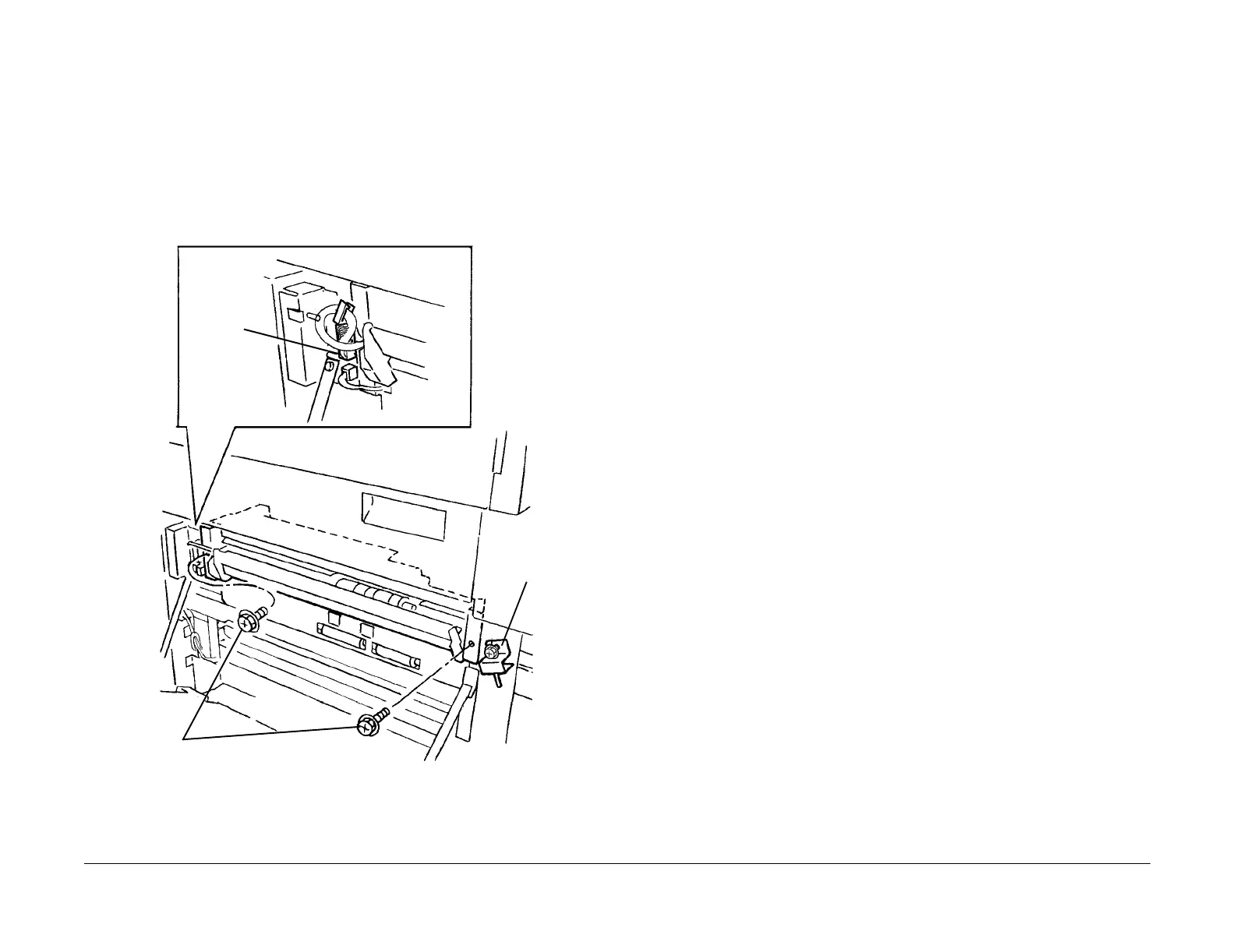

Figure 1 Removing the Tray 2 Feeder
1
Loosen
Screw and
move
Bracket
2
Release
Wire Har-
ness from
Clamp and
disconnect
connector
3
Remove
Screws (2)
and Feeder
