Xerox DocuColor 2240

09/03
5-50
DC 3535/2240/1632, WC M24
PL 15.1
Initial issue
Parts List

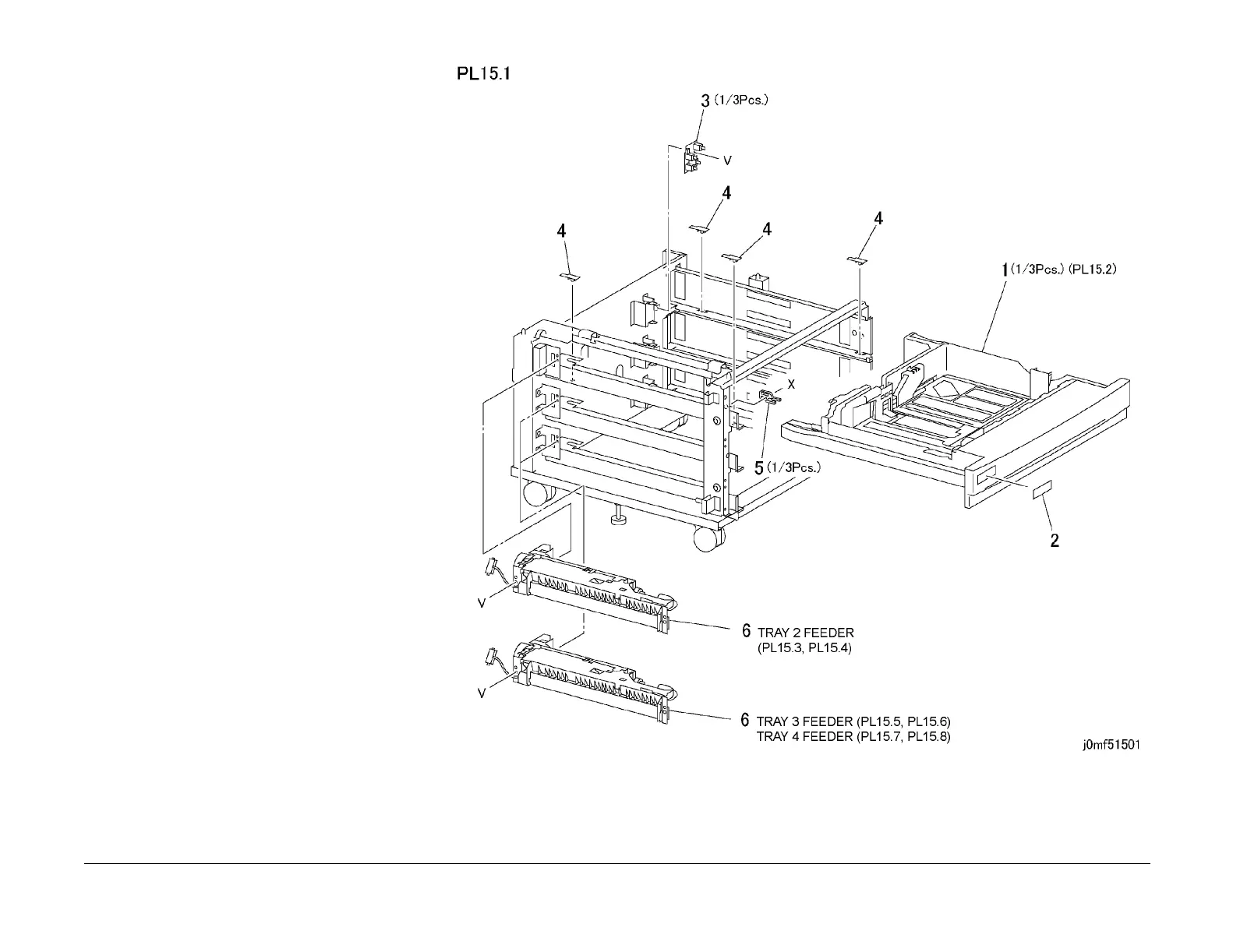

PL 15.1 Tray 2/3/4 Feeder
Item Part Description
1 050K48840 Tray 2/3/4 (REP 7.13 REP 7.14
REP 7.15)
– 050K48980 Tray 2 (WC24) (REP 7.13 REP
7.14 REP 7.15)
2 892E89190 Label (Tray 2)
– 892E89200 Label (Tray 3)
– 892E89210 Label (Tray 4)
3 110K08541 Paper Size Sensor (Tray 2/3/4)
4 – Spacer (Not Spared)
5 003E23672 Stop
6 059K15573 Feeder (Tray 2/3/4) (REP 7.16 REP
7.17 REP 7.18)
