Xerox DocuColor 2240 Service Manual

09/03
3-32
DC 3535/2240/1632, WC M24
Color Misregistration , Debris-Centered Deletions
Initial issue
Image Quality
Color Misregistration

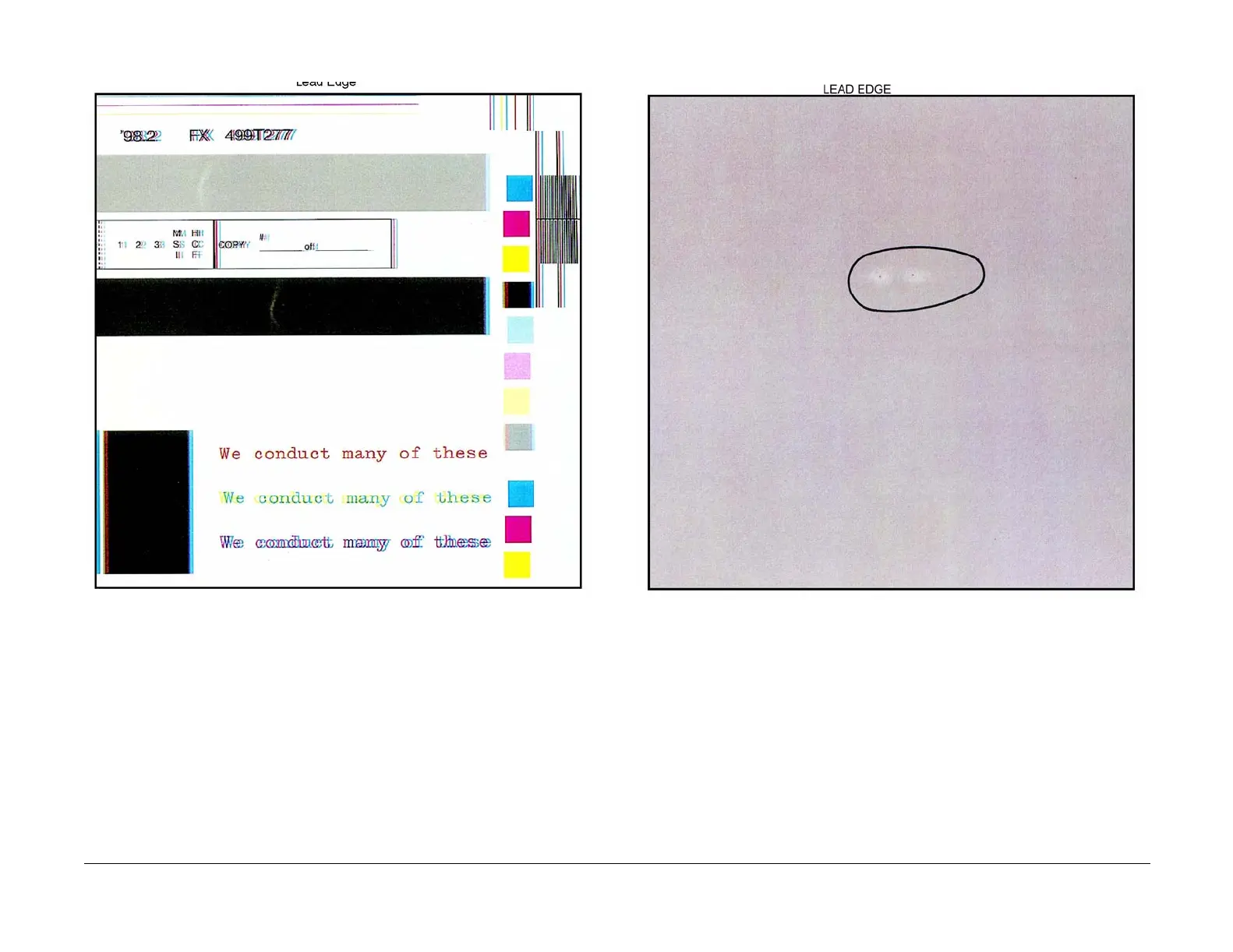

Figure 1 Color Misregistration Defect Sample
Cause
Failure of the ROS or IBT “walking” from rear to front or front to rear.
Mechanical problem in the IBT Assembly.
Corrective Action
Adjust Color Registration (ADJ 9.6).
Go to theIQ8 RAP.
Debris-Centered Deletions
Figure 1 DCD Defect Sample
Cause
Toner agglomerates cause deletions in the areas surrounding them during transfer.
Corrective Action
Go to the IQ7 RAP.
