Repairs and Adjustments
REP 6.11 Carriage Cables
Parts List on PL 18.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
NOTE: This page describes how to remove Rear Carriage Cable. The Front Carriage Cable is
replaced in the same fashion.
NOTE: Do not replace both cables at same time. Remove front and rear cables separately.
1. Remove DADF (REP 5.1).
2. Remove Platen Glass (REP 6.2).
3. Remove IIT Top Cover (REP 6.3).
4. Remove Registration Gate and Plate (Figure 1).

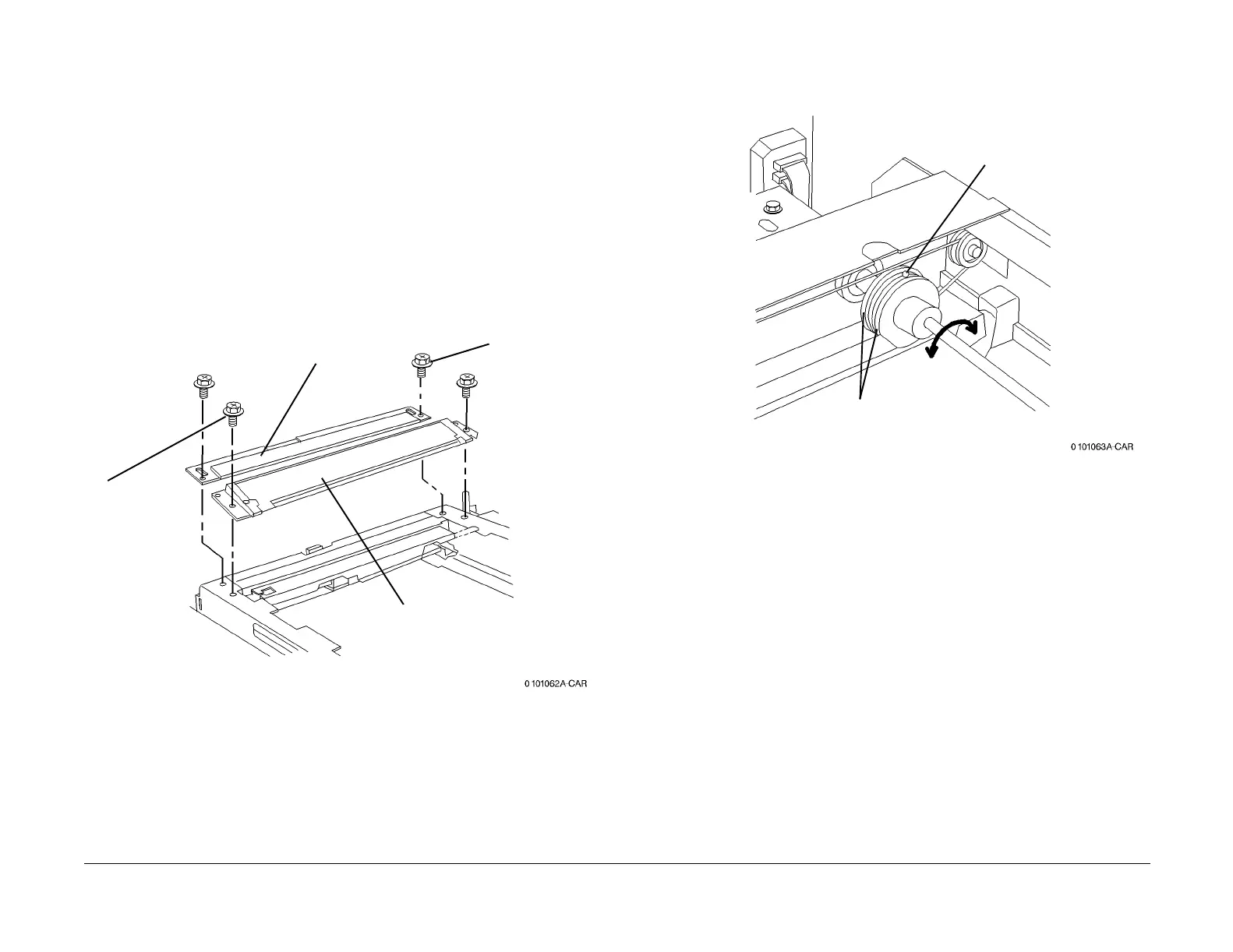

Figure 1 Removing Registration Gate and Plate
5. Remove Full Rate Carriage from IIT Frame (REP 6.14). Keep lamp wire harness connec-
tor connected.
6. Position the Carriage Cable Ball so that it is directly at the top of the Capstan (Figure 2).
Verify that there are 2.5 Carriage Cable windings on both sides of the Ball.
Figure 2 Positioning Half Rate Carriage
1
Remove
Registration
Gate Screws
(2)
2
Remove Registration
Gate
3
Remove Plate
Screws (2)
4
Remove
Plate
Carriage Cable
Ball
Carriage Cable
Windings
To Next Page
