09/03
5-64
DC 3535/2240/1632, WC M24
PL 16.4
Initial issue
Parts List

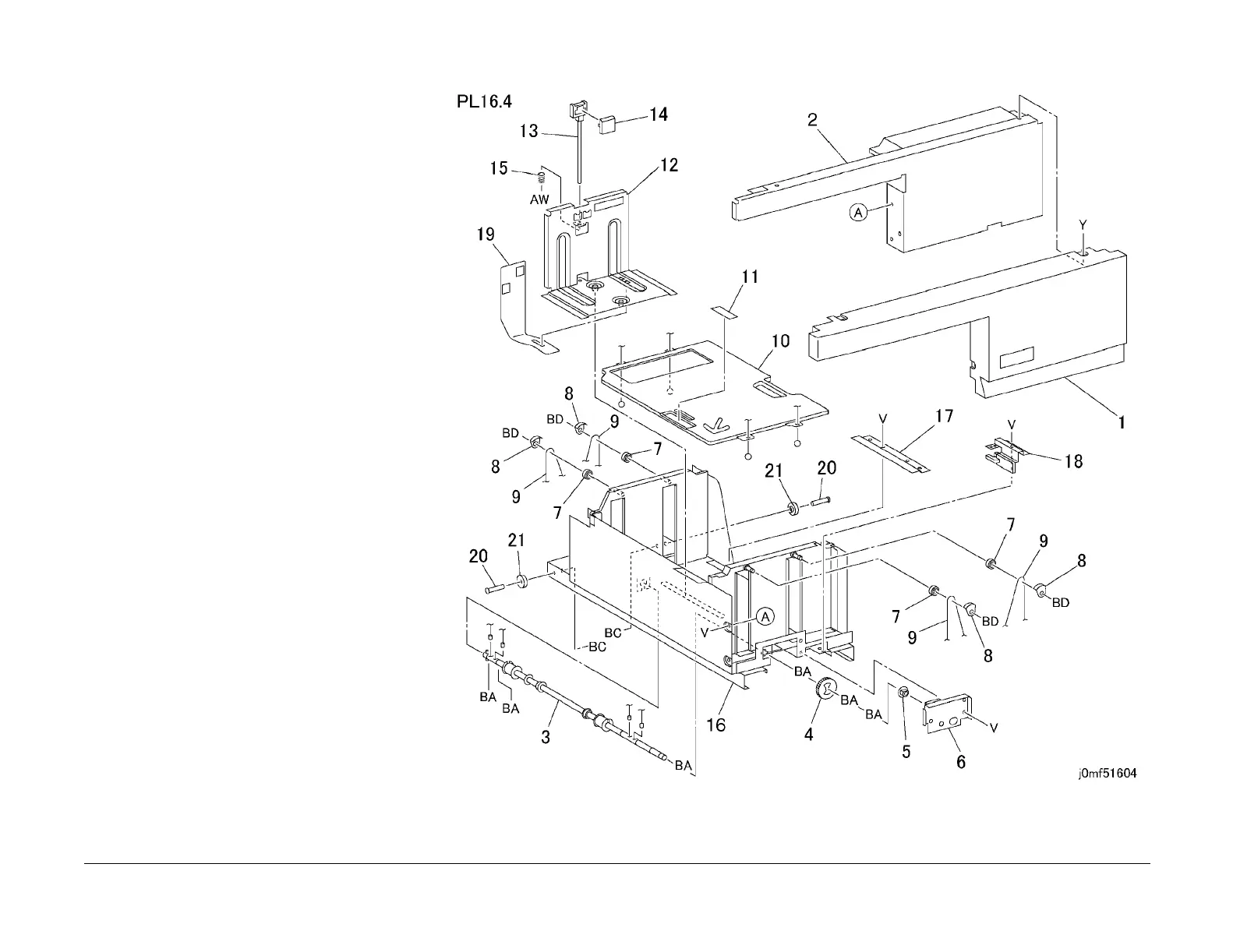

PL 16.4 Tray 4
Item Part Description
1 802E23980 Tray 4 Cover
2 – Tray Front Frame (Not Spared)
3 – Lift Shaft (Not Spared)
4 – Lift Gear (Not Spared)
5 – Bearing (Not Spared)
6 – Brake (Not Spared)
7 – Pulley (Not Spared)
8 – Cable Guide (Not Spared)
9 012E10070 Tray Cable
10 – Bottom Plate (Not Spared)
11 – Pad (Not Spared)
12 – Side Guide (Not Spared)
13 – Knob (Not Spared)
14 – Knob (Not Spared)
15 009E26970 Spring
16 – Tray Frame (Not Spared)
17 – Bracket (Not Spared)
18 – Latch (Not Spared)
19 – Actuator (Not Spared)
20 – Shaft (Not Spared)
21 059E95920 Roll
To Next Page
