Parts List

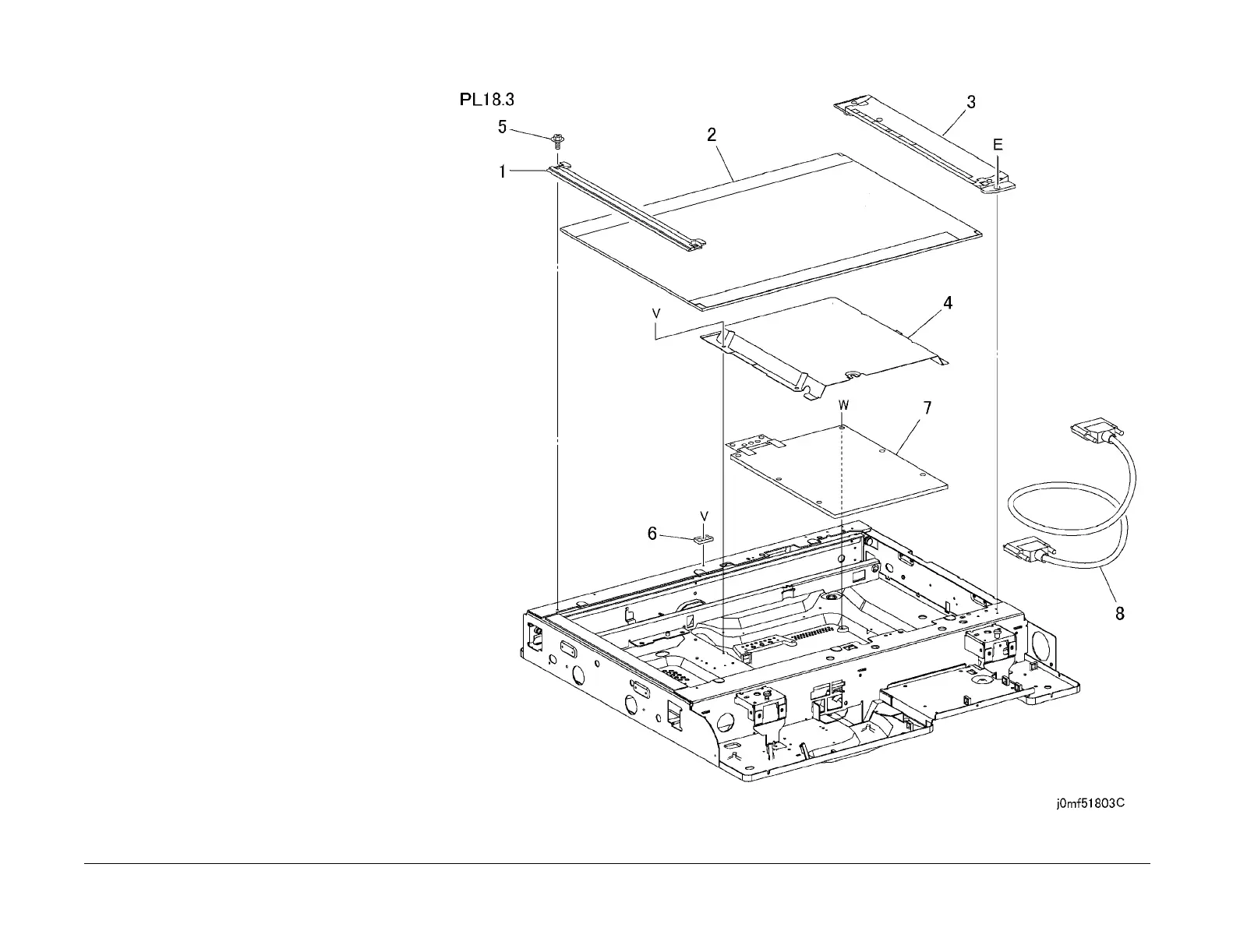

PL 18.3 Platen Glass, IIT/IPS PWB
Item Part Description
1 – Right Side Plate (Not Spared)
2 090K92820 Platen Glass (DC2240/1632) (REP
6.2)
– 090K02290 Platen Glass (DC3535) (REP 6.2)
3 050K43070 Registration Gate (DC2240/1632)
– 050K48890 Registration Gate (DC3535)
4 – IPS Cover (Not Spared)
5 – Screw (Not Spared)
6 068E10210 Platen Glass Support
7 160K98020 IIT/IPS PWB (DC2240/1632) (REP
6.5)
– 160K94002 IIT/IPS PWB (DC3535) (REP 6.5)
8 117E20840 Cable
