09/03
5-44
DC 3535/2240/1632, WC M24
PL 10.3
Initial issue
Parts List

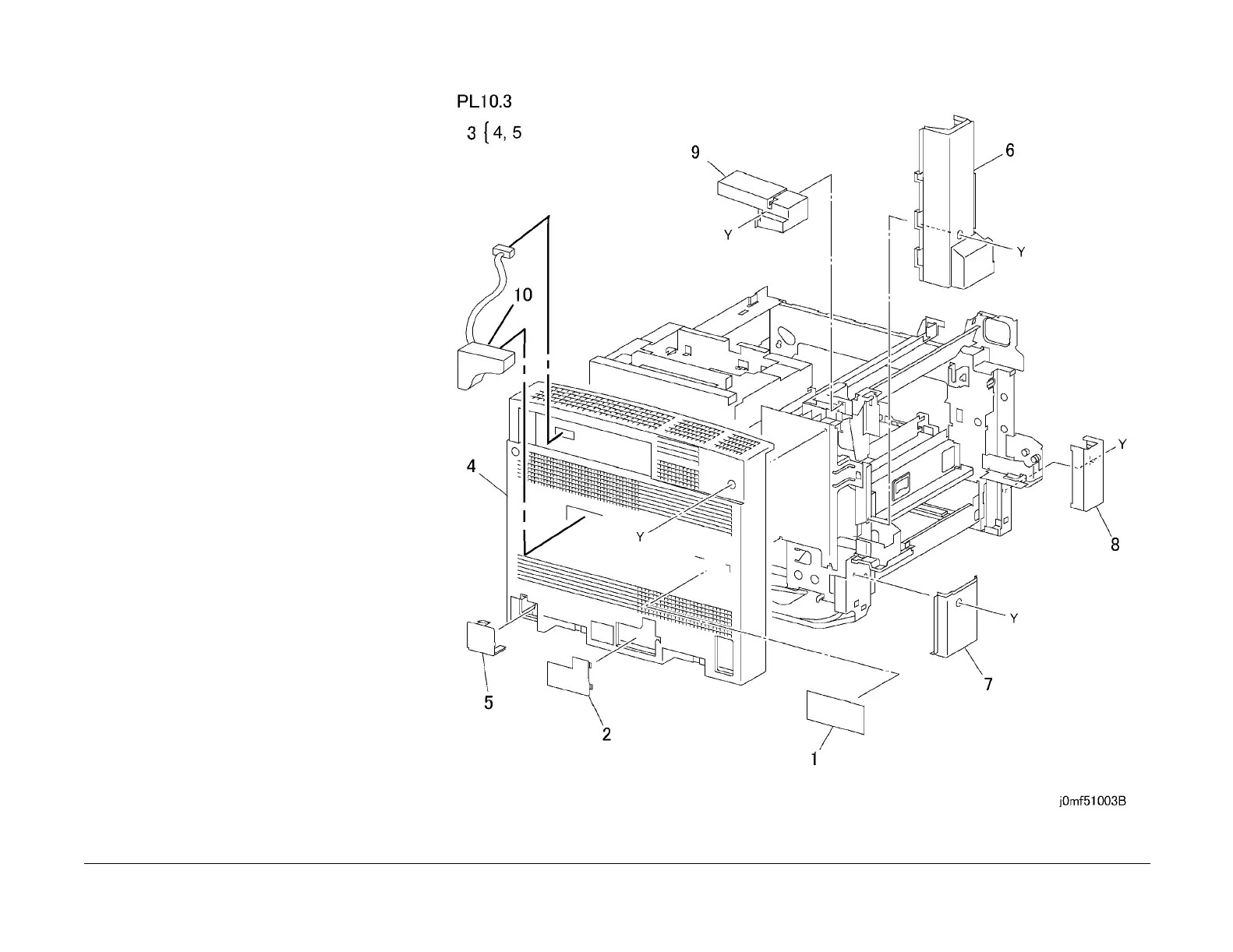

PL 10.3 Rear Cover
Item Part Description
1 – Data Plate (Not Spared)
2 802E12480 Blind Cover (DC2240/1632/WC24)
– 802E33910 Blind Cover (DC3535)
3 802K28110 Rear Cover Assembly
4 – Rear Cover (P/O PL 10.3 Item 3)
(REP 14.2)
5 802E12490 Blind Cover
6 802E12500 Rear Left Middle Cover (REP 14.4)
7 – Rear Left Lower Cover (Not
Spared)
8 – Front Left Cover (Not Spared)
9 802E27860 Rear Left Upper Cover (REP 14.5)
10 960K11380 Foreign Interface
