Xerox DocuColor 2240

09/03
5-31
DC 3535/2240/1632, WC M24
PL 5.5
Parts List
Initial issue

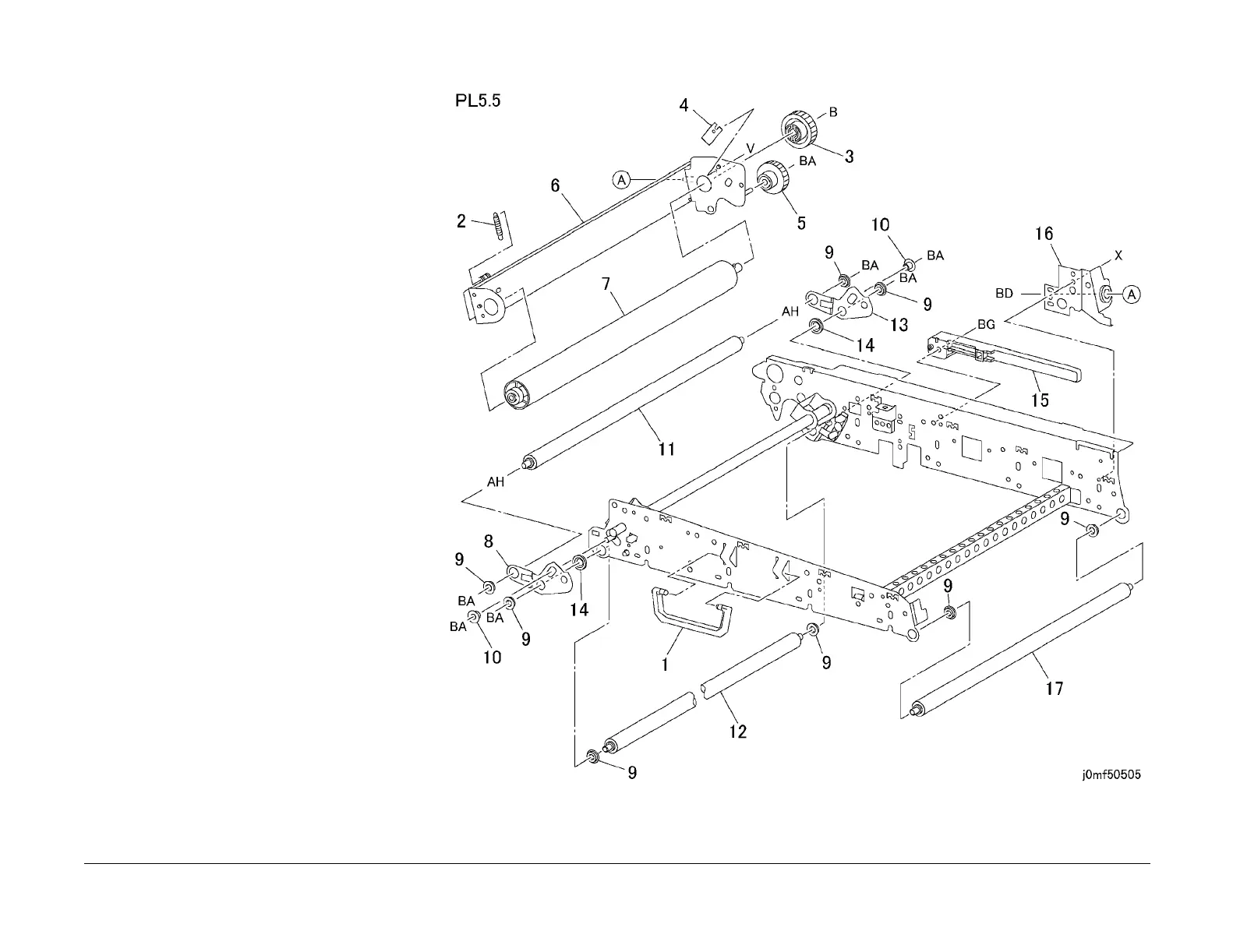

PL 5.5 IBT Frame Assembly: 2 of 2
Item Part Description
1 – Handle (Not Spared)
2 – Spring (Not Spared)
3 – Gear (Not Spared)
4 – Plate (Not Spared)
5 – Gear (Not Spared)
6 – Bracket (Not Spared)
7 – Top Roll (Not Spared)
8 – Front Bracket (Not Spared)
