Xerox DocuColor 2240

09/03
5-100
DC 3535/2240/1632, WC M24
PL 20.3
Initial issue
Parts List

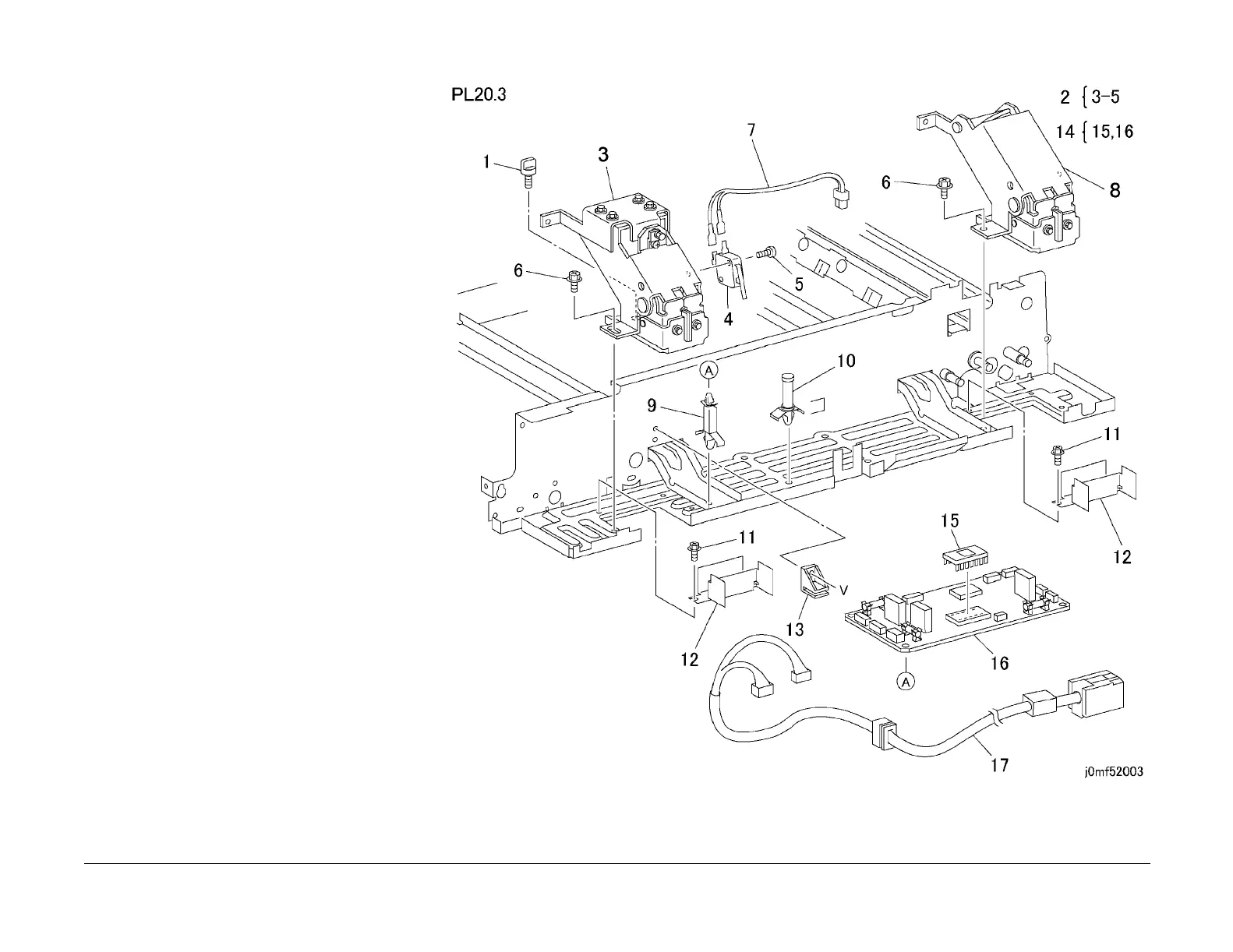

PL 20.3 Counterbalance, DADF
Control PWB
Item Part Description
1 003K91881 Thumbscrew
2 036K91431 Right Counterbalance (REP 5.3)
3 – Counterbalance (P/O PL 20.3 Item
2) (ADJ 5.2 ADJ 5.3 ADJ 5.4)
4 – DADF Interlock Switch (P/O PL
20.3 Item 2)
5 – Screw (P/O PL 20.3 Item 2)
6 – Screw (Not Spared)
7 – Wire Harness (Not Spared)
8 036K91420 Left Counterbalance (REP 5.3,ADJ
5.2 ADJ 5.3 ADJ 5.4)
9 – PWB Support (Not Spared)
10 – PWB Support (Not Spared)
11 – Screw (Not Spared)
12 – Safety Bracket (Not Spared)
13 – PWB Support (Not Spared)
14 160K83081 DADF Control PWB Assembly
(W/ROM) (REP 5.4)
15 – ROM (P/O PL 20.3 Item 14)
16 – DADF Control PWB (P/O PL 20.3
Item 14)
17 162K64340 Wire Harness
