09/03
4-56
DC 3535/2240/1632, WC M24
REP 7.2
Initial issue
Repairs and Adjustments
REP 7.2 Tray 5 Feed Roll
Parts List on PL 2.14
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Remove the Rear Left Upper Cover (REP 14.5).
3. Remove the Rear Left Middle Cover (REP 14.4).
4. Close the Left Cover Assembly.
5. Remove Tray 5 (REP 7.1).

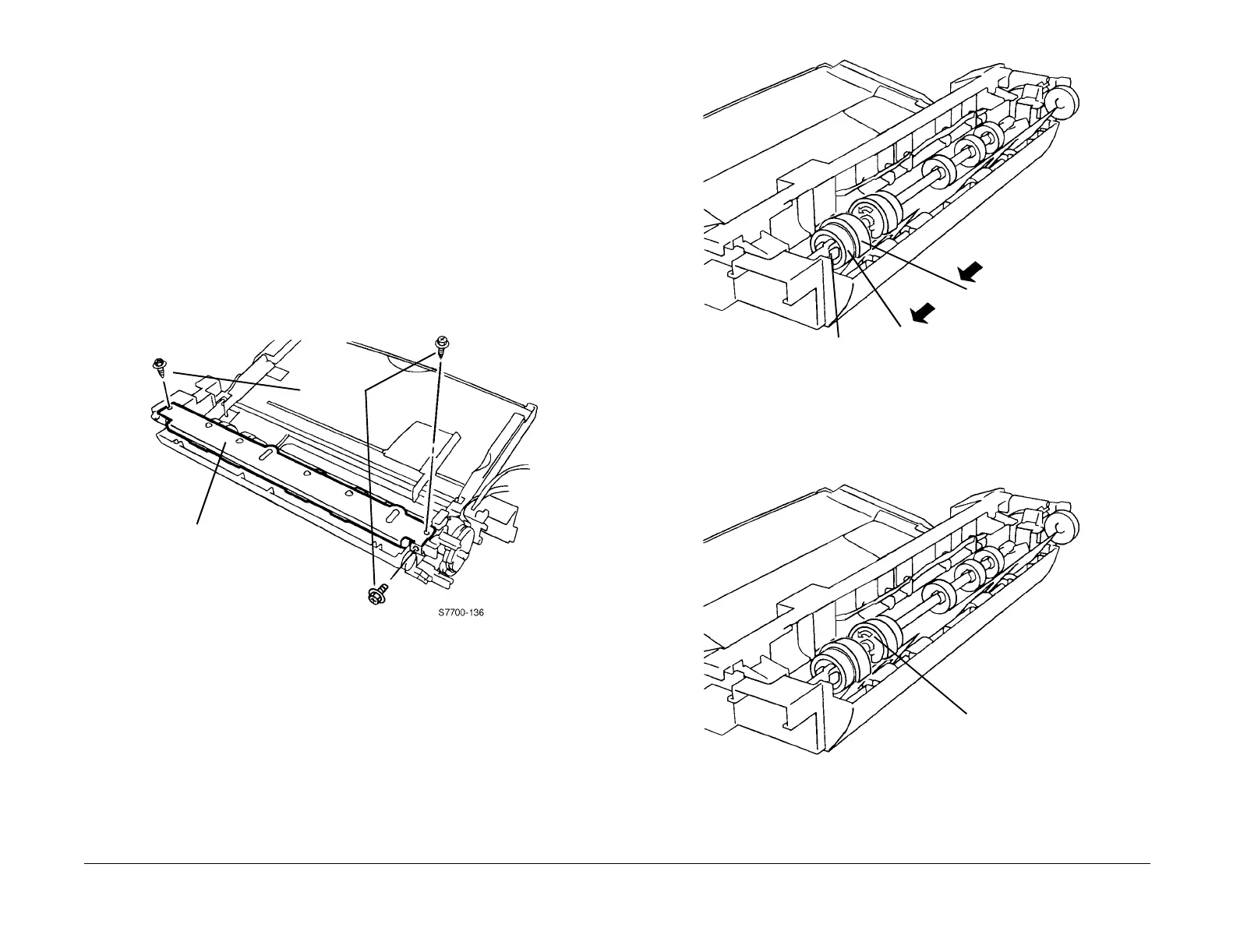

6. Remove the Chute (Figure 1).
a. Remove Screws (3).
b. Lift to remove Chute.
Figure 1 Removing Chute
7. Remove the Feed Roll (Figure 2).
a. Release Locking Tab from groove on shaft and slide Lock Roll away from Feed Roll.
b. Slide Feed Roll to disengage drive pin and remove Feed Roll.
Figure 2 Removing Feed Roll
Replacement
Ensure Arrow is positioned as shown (Figure 3).
Figure 3 Installing Feed Roll
Screws (3)
Chute
Locking
Tab
Lock Roll
Feed
Roll
Arrow
To Next Page
