09/03
4-135
DC 3535/2240/1632, WC M24
REP 12.17
Repairs and Adjustments
Initial issue
REP 12.17 Entrance Upper Cover
Parts List on PL 17.3
Removal
1. Remove the H Transport Assembly (REP 12.1).
2. Remove the following:
a. H Transport Front Cover (PL 17.3)
b. H Transport Rear Cover (PL 17.3)
3. Remove the H Transport Cover and cover Stop (Figure 1).

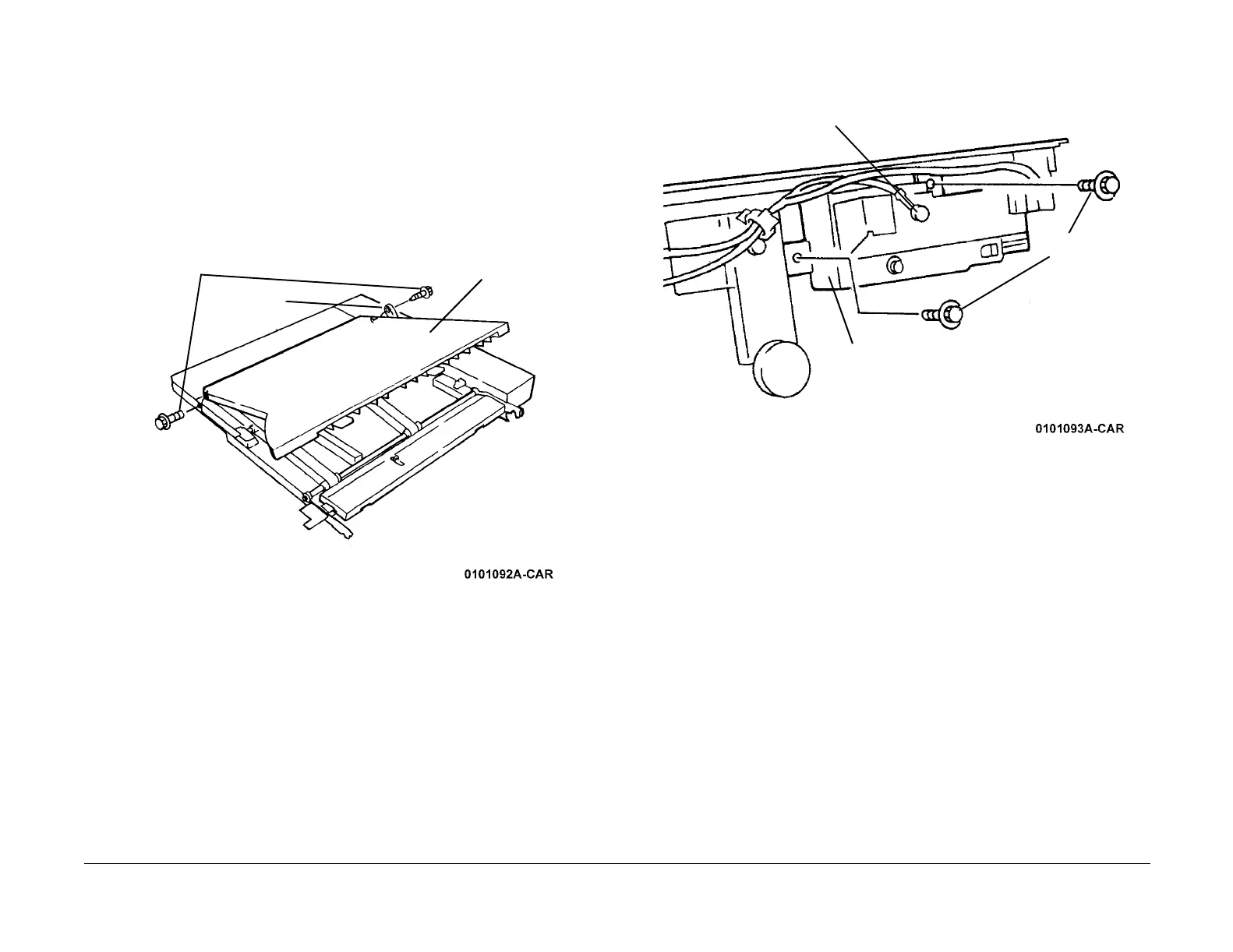

Figure 1 Removing the H Transport Cover
4. Remove the Gate In Solenoid Assembly (Figure 2).
Figure 2 Removing the Gate In Solenoid Assembly
1
Remove
Screws (2)
2
Remove
Cover
Stop
2
Remove
Screws (2)
1
Remove Screw (1)
and Ground Wire
3
Remove Solenoid
Assembly
To Next Page
