Xerox DocuColor 2240 Service Manual

09/03
4-134
DC 3535/2240/1632, WC M24
REP 12.16
Initial issue
Repairs and Adjustments
5. Remove the Finisher PWB (Figure 3).

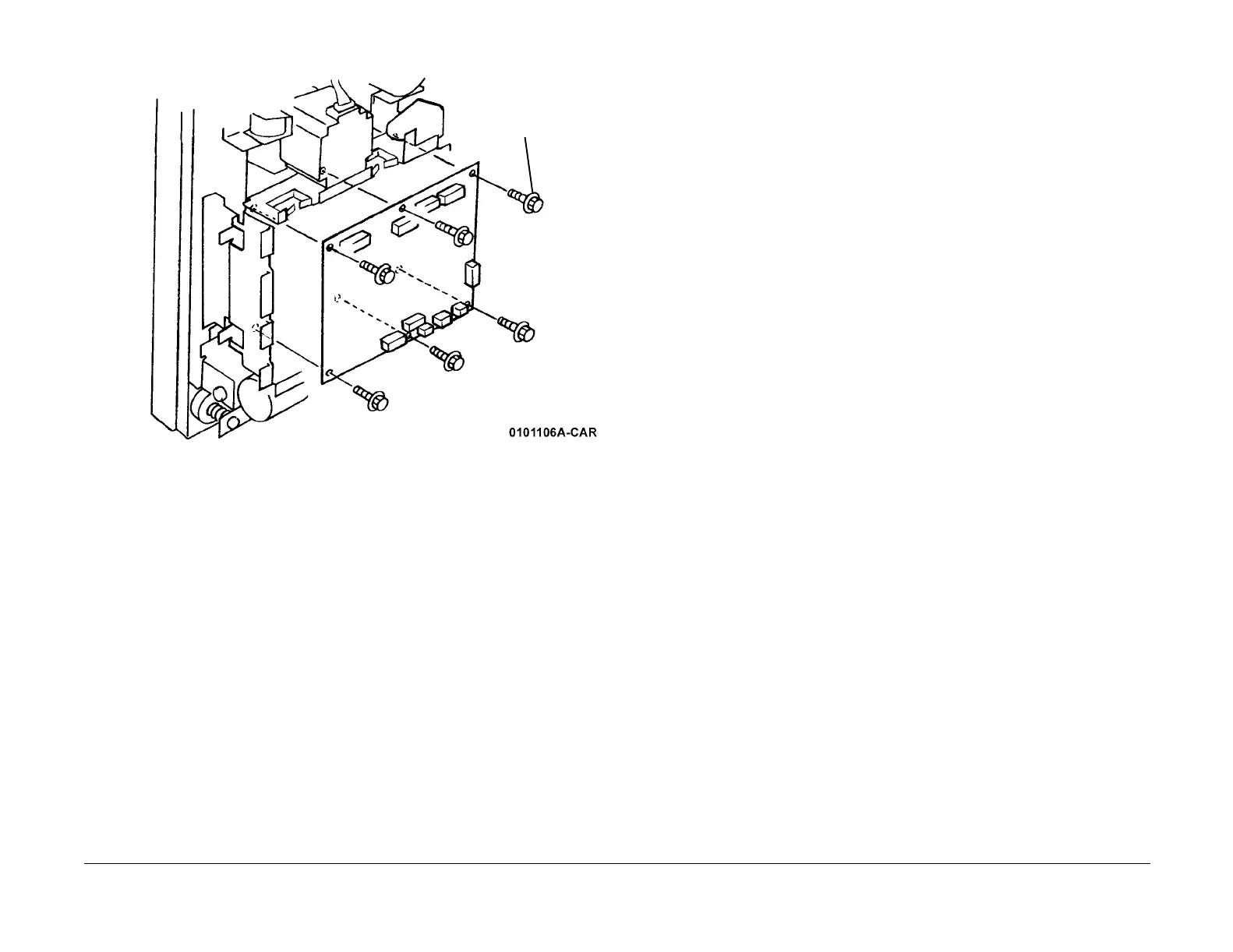

Figure 3 Removing Finisher PWB
Replacement
Install the retained ROM removed in step 3 of the removal procedure on the new Finisher
PWB.
Before attempting to install the PWB Cover, make sure the ceramic Cores, installed to the
wires, are dressed properly inside the PWB Box.
Remove
Screws (6)
and PWB
