09/03
5-104
DC 3535/2240/1632, WC M24
PL 20.7
Initial issue
Parts List

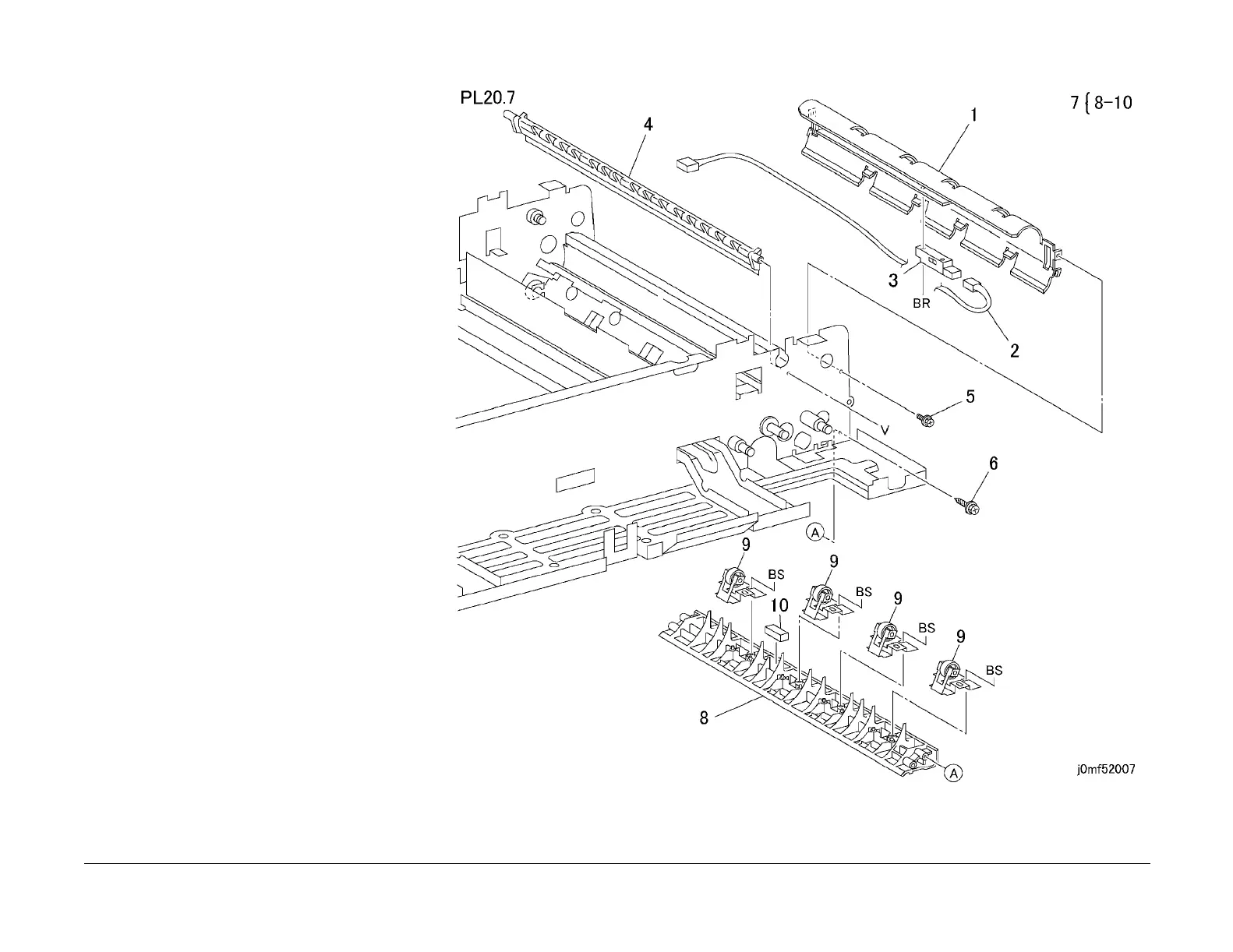

PL 20.7 Duplex Chute
Item Part Description
1 – Duplex Chute (Not Spared)
2 – Wire Harness (Not Spared)
3 130K60600 Duplex Sensor (REP 5.14)
4 050K46690 Gate
5 – Screw (Not Spared)
6 – Screw (Not Spared)
7 054K18790 Lower Chute Assembly
8 – Lower Chute (P/O PL 20.7 Item 7)
9 – Pinch Roll (P/O PL 20.7 Item 7)
10 121E90640 Open Switch Magnet
