09/03
4-145
DC 3535/2240/1632, WC M24
REP 14.3, REP 14.4
Repairs and Adjustments
Initial issue

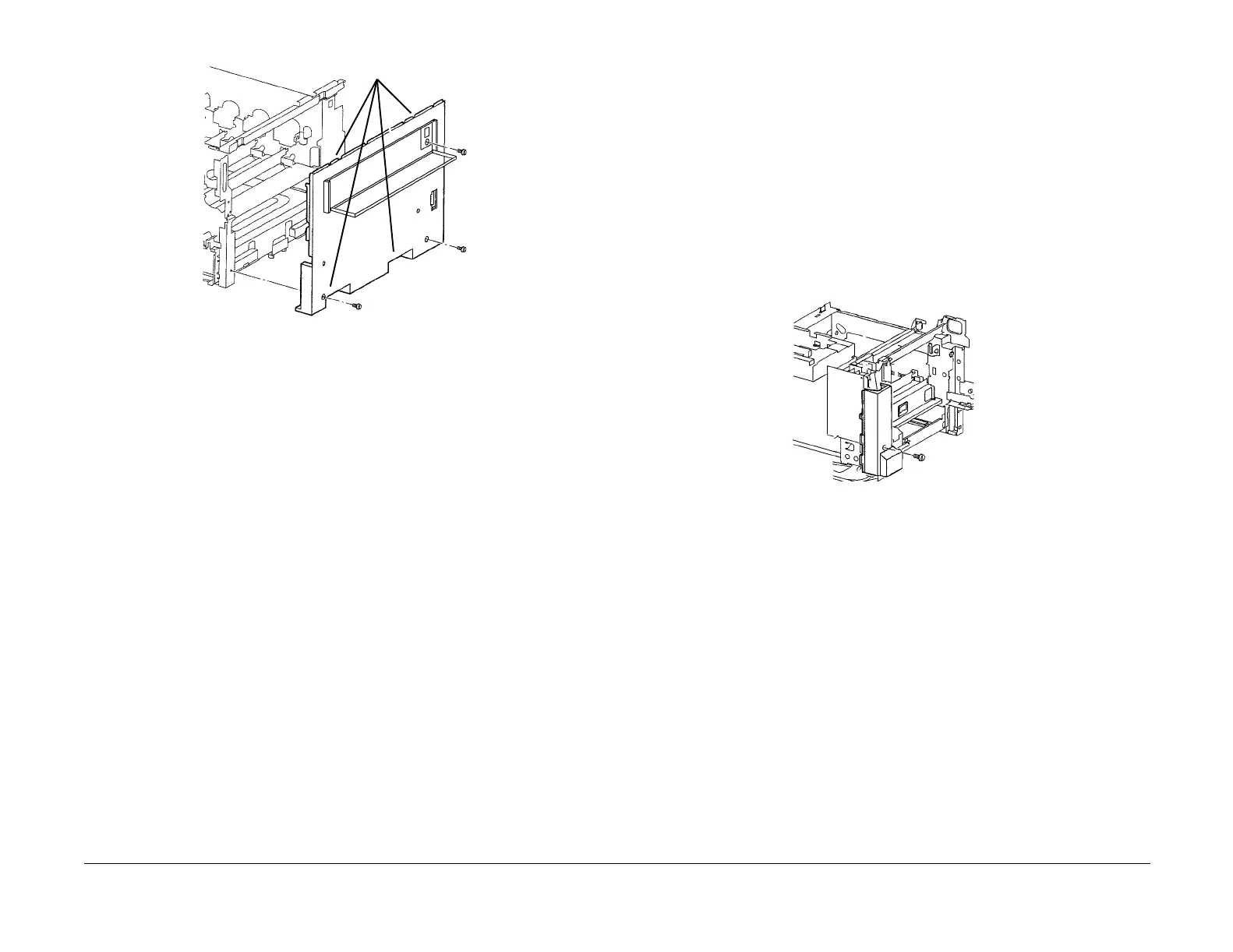

Figure 2 Removing Right Cover
REP 14.4 Rear Left Middle Cover
Parts List on PL 10.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Rear Cover (REP 14.2).
2. Open Left Cover Assembly.
3. Remove Rear Left Upper Cover (REP 14.5).
4. Remove Rear Left Middle Cover (Figure 1).
a. Remove Screw (1).
b. Lift slightly to disengage hidden tab and remove Rear Left Middle Cover.
Figure 1 Removing Rear Left Middle Cover
Hidden Tabs
To Next Page
