09/03
2-287
DC 3535/2240/1632, WC M24
12-904
Status Indicator RAPs
Initial issue
12-904 Power On Compiler Paper Sensor
• The Compiler Paper Sensor continues to detect paper when the paper was output auto-
matically due to the power on initialization.
• The Compiler Paper Sensor detected paper with no history of paper output to the Com-
piler Tray when all the interlocks were closed.
Procedure
Enter dC330 [012-102] and press Start. Actuate the Compiler Paper Sensor (Figure 1). The
display changes.
YN
Disconnect P/J848 from Finisher Control PWB. Measure voltage at P/J848-A5. +5 VDC
is measured.
YN
Replace Finisher PWB (PL 17.13) (Figure 3).
Check the wire from P/J848-A5 to P/J875-2 on the Compiler Paper Sensor for an open
circuit (Figure 2). If the wire is good, replace the Compiler Paper Sensor (PL 17.10).
Check that the voltage at the customer outlet is in specification and does not drop during
machine start.

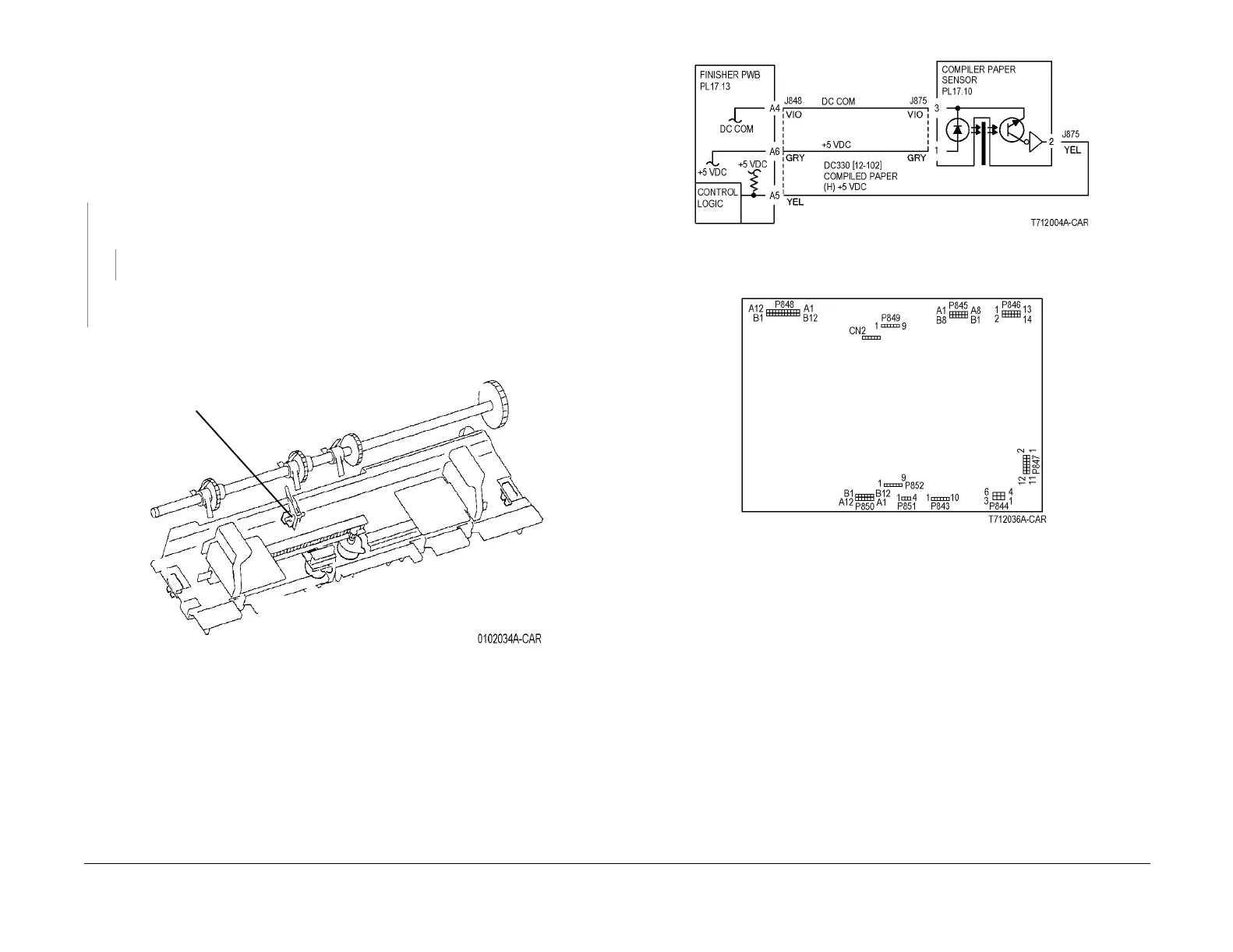

Figure 1 Component Location
Figure 2 12-904 RAP Circuit Diagram - Compiler Paper Sensor
Figure 3 Finisher PWB
Compiler
Paper
Sensor
To Next Page
