REP 6.12 Carriage Motor
Parts List on PL 18.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove DADF (REP 5.1).
2. Remove Platen Glass (REP 6.2).
3. Remove IIT Top Cover (REP 6.3).
4. Remove Carriage Motor (Figure 1).

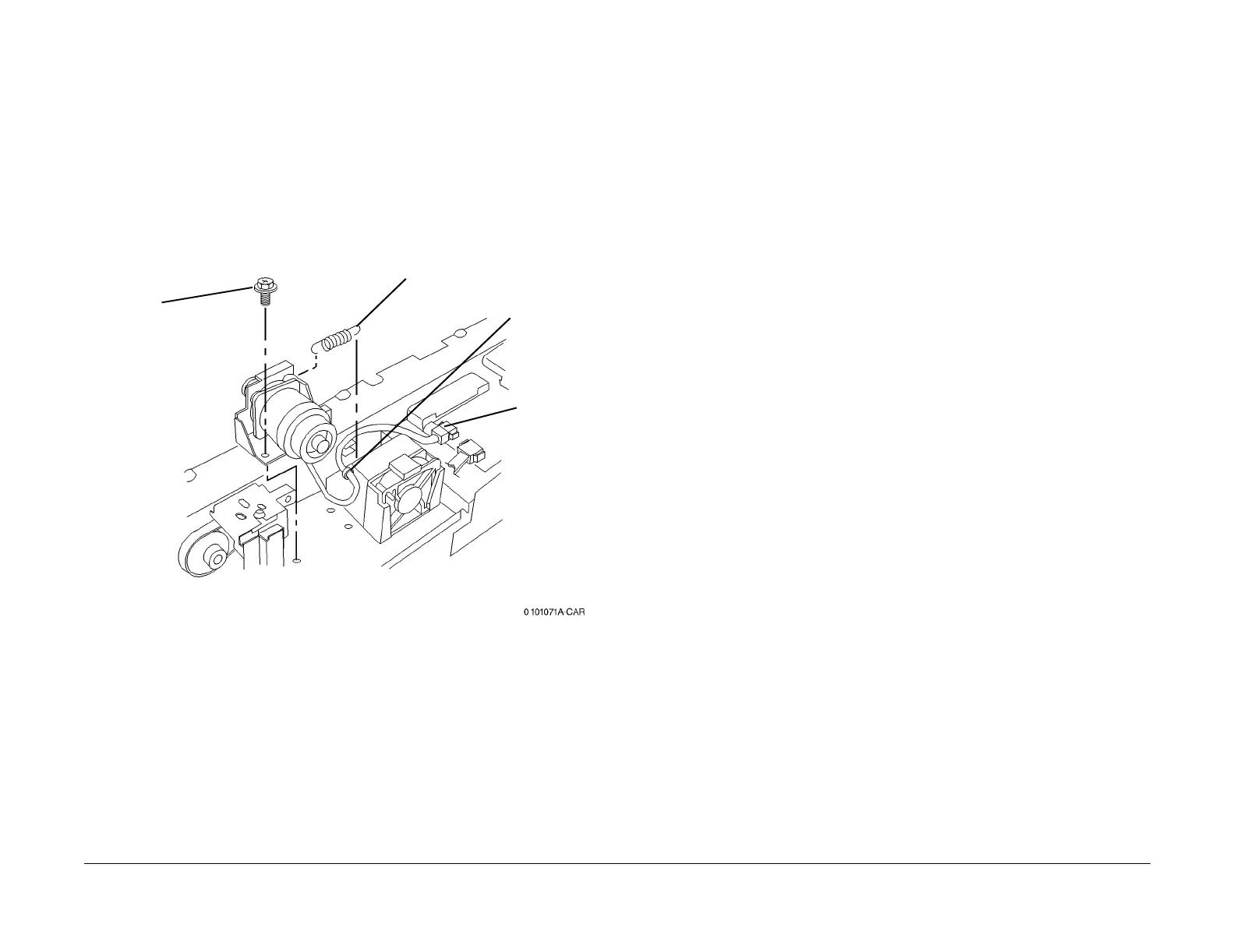

Figure 1 Removing Carriage Motor
4
Remove
Screws (3) and
the Carriage
Motor
1
Disconnect
Connector
3
Remove
spring
2
Release
clamps (2)
