09/03
5-108
DC 3535/2240/1632, WC M24
PL 20.11
Initial issue
Parts List

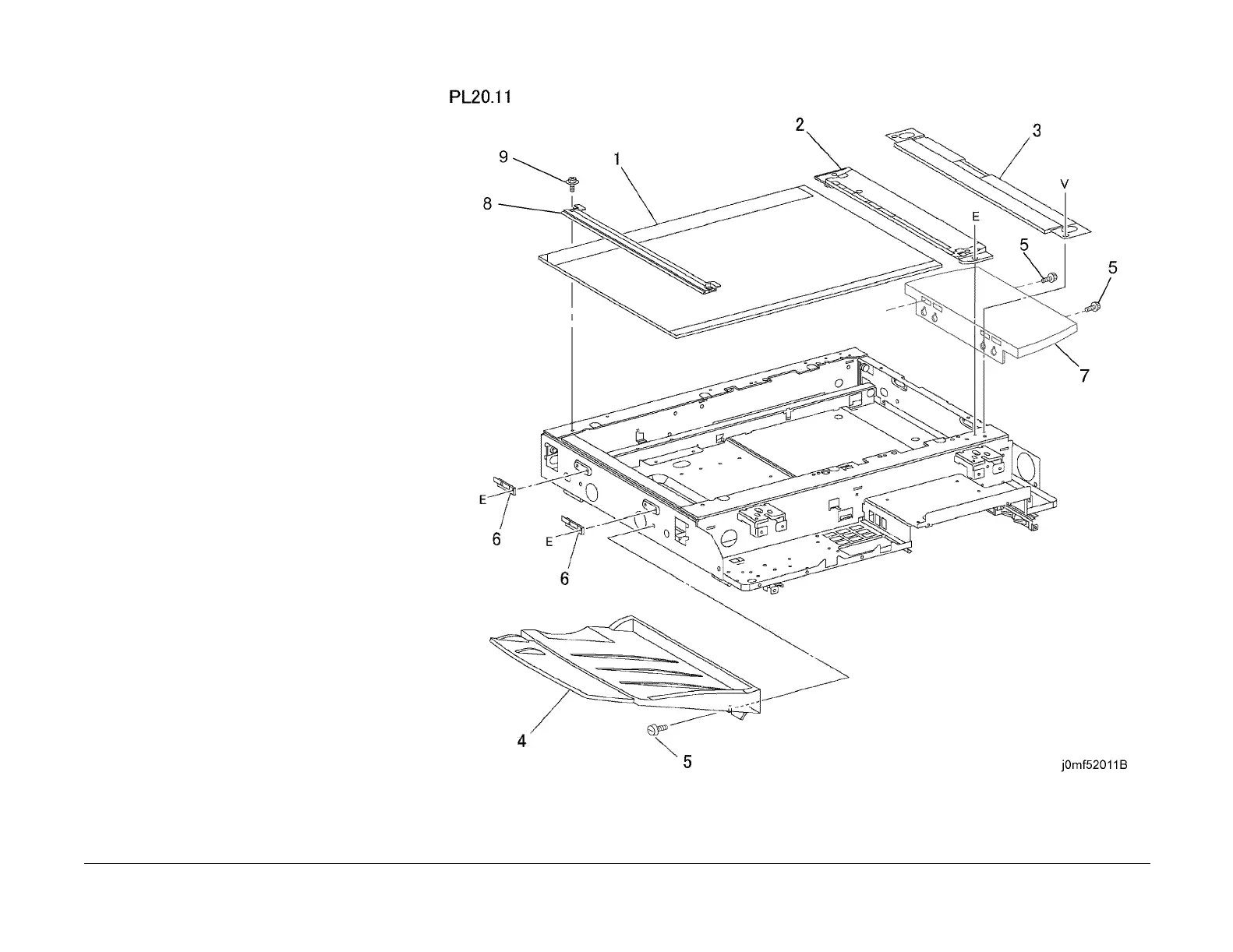

PL 20.11 Platen Glass, Registration
Gate, Exit Tray
Item Part Description
1 090K92820 Platen Glass (DC2240/1632) (REP
6.2)
– 090K02290 Platen Glass (DC3535) (REP 6.2)
2 050K43070 Registration Gate (DC2240/1632)
– 050K48890 Registration Gate (DC3535)
3 015K83700 Plate
4 673K51382 Exit Tray (DC3535)
– 673K51383 Exit Tray (DC2240/1632)
5 003E43840 Thumbscrew
6 830E17490 Bracket
7 050E88440 Wing Tray (DC2240/1632)
8 – Rigth Side Plate (Not Spared)
9 – Screw (Not Spared)
To Next Page
