09/03
5-16
DC 3535/2240/1632, WC M24
PL 2.7
Initial issue
Parts List

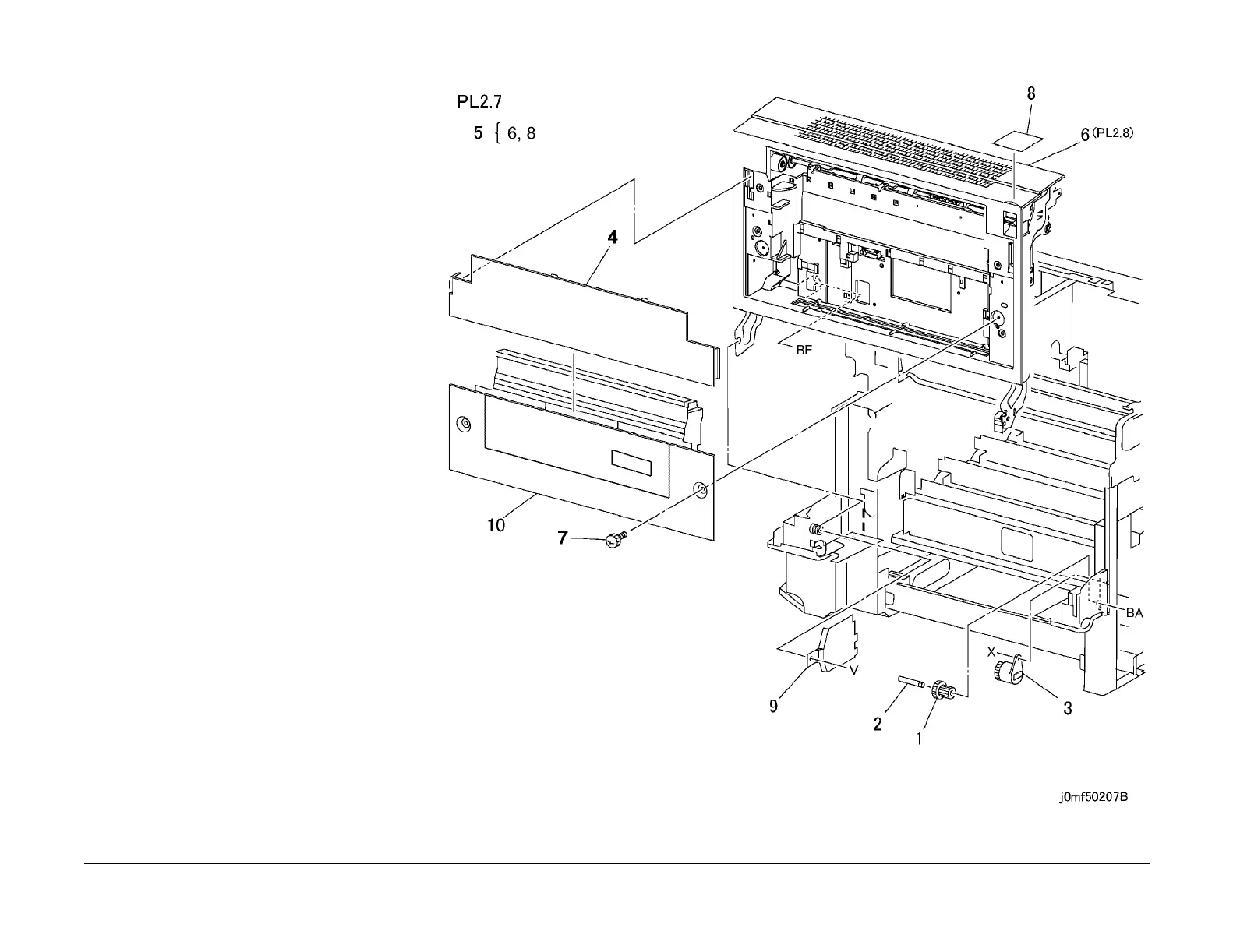

PL 2.7 Left Cover Unit
Item Part Description
1 007E64740 Damper Gear (11/23T)
2 – Stud (Not Spared)
3 004E11831 Damper (White)
4 – Left Upper Cover (Not Spared)
5 802K45492 Left Cover Assembly
6 – Left Cover (P/O PL 2.7 Item 5)
7 – Screw (Not Spared)
8 – Label (P/O PL 2.7 Item 5)
9 – Cover (Not Spared)
10 – Lower Cover (Not Spared)
