09/03
4-131
DC 3535/2240/1632, WC M24
REP 12.15
Repairs and Adjustments
Initial issue
REP 12.15 Paddle Gear Shaft
Parts List on PL 17.12
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove the following parts:
a. Stapler Assembly (REP 12.11).
b. Rear Cover (PL 17.5).
2. Remove the Cam Bracket Assembly (REP 12.18).

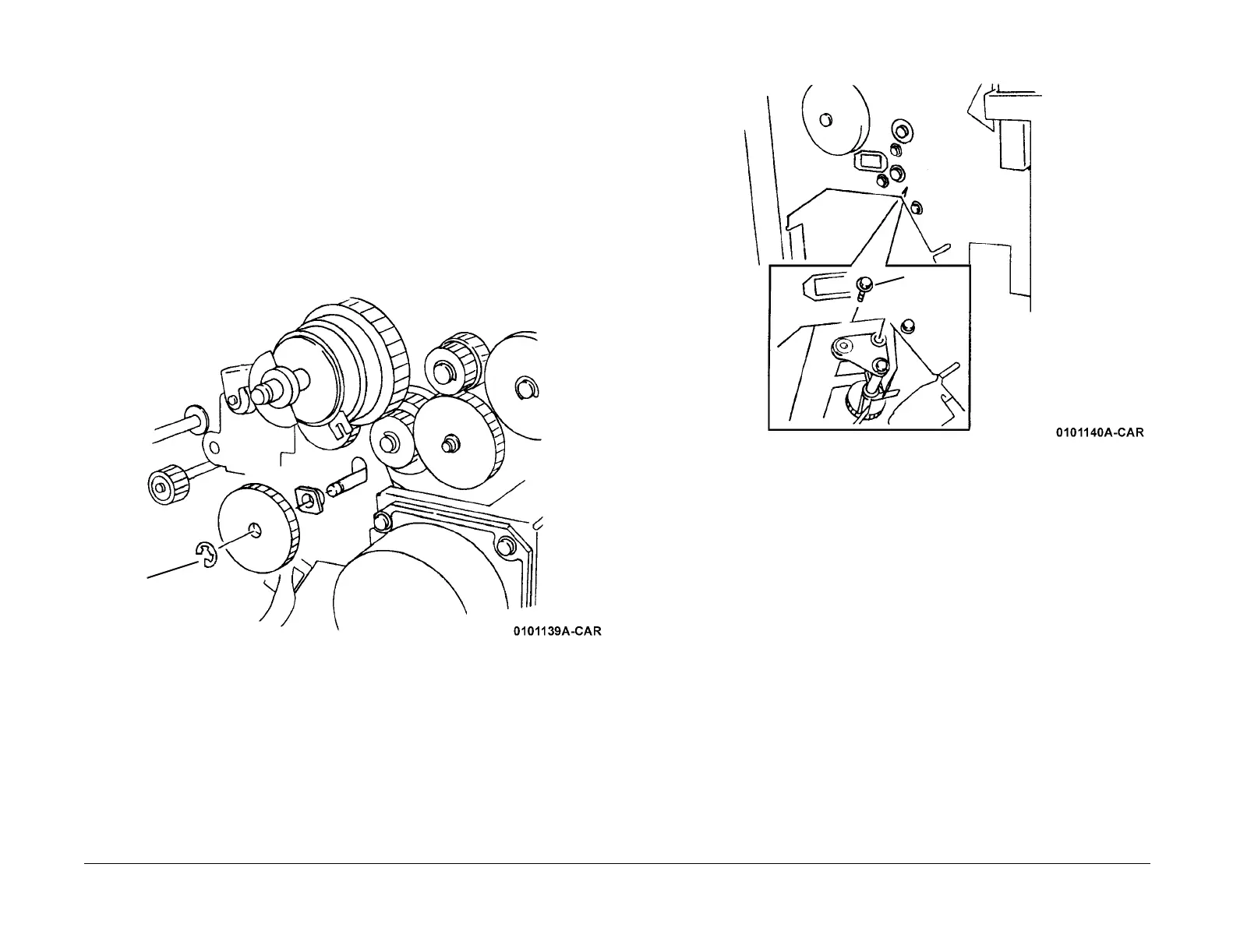

3. Remove the Bearing (Figure 1).
Figure 1 Removing Bearing
4. Remove Screw on Paddle Gear Shaft (Figure 2).
Figure 2 Removing Screw on Paddle Gear Shaft
Remove
Clip, Gear,
and Bearing
Remove
Screw
To Next Page
