Xerox DocuColor 2240 Service Manual

09/03
4-88
DC 3535/2240/1632, WC M24
REP 9.19, REP 9.20
Initial issue
Repairs and Adjustments
REP 9.19 Left Hinge/Right Hinge
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (REP 14.8).
3. Remove Waste Toner Cartridge (REP 9.4).
4. Remove Waste Toner Cartridge Cover (REP 9.3).
5. Remove Inner Cover (REP 14.10).
6. Remove Drum Cartridges (REP 9.1).
7. Remove Right Cover (REP 14.3).
8. Remove IBT Belt Assembly (REP 9.15).
9. Remove Lever Assembly (REP 9.18).
10. Remove Left and/or Right Hinges (Figure 1).
a. Remove screws (2) and remove Hinge.
b. Remove screws (2) and remove Hinge.

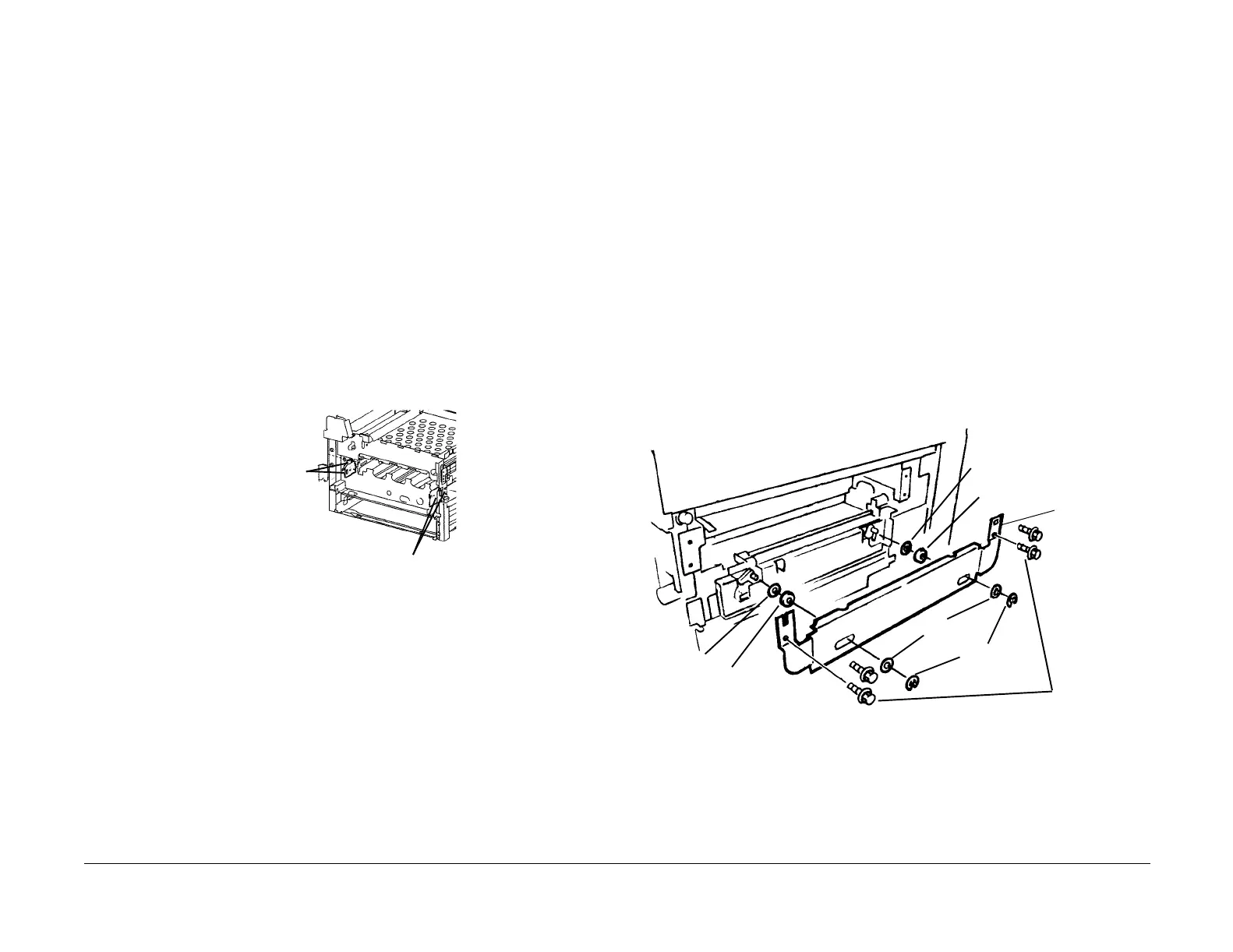

Figure 1 Removing Left and Right Hinges
Replacement
Move Lever to down position before reinstalling IBT Belt Assembly.
REP 9.20 Right Lift Assembly
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Open Front Cover.
2. Remove Fuser Cover (REP 14.8).
3. Remove Waste Toner Cartridge (REP 9.4).
4. Remove Waste Toner Cartridge Cover (REP 9.3).
5. Remove Inner Cover (REP 14.10).
6. Remove Drum Cartridges (REP 9.1).
7. Remove Right Cover (REP 14.3).
8. Remove IBT Belt Assembly (REP 9.15).
9. Remove Lever Assembly (REP 9.18).
10. Remove Plate (Figure 1).
a. Remove e-rings (2) and washers (2).
b. Remove screws (4) and remove Plate.
c. Remove bearings (2) and washers (2).
Figure 1 Removing Plate
Screws (2)
Screws
(2)
Washers (2)
E-Rings (2)
Screws (4)
Bearing
Washer
Washer
Bearing
Plate
