09/03
5-25
DC 3535/2240/1632, WC M24
PL 4.1
Parts List
Initial issue

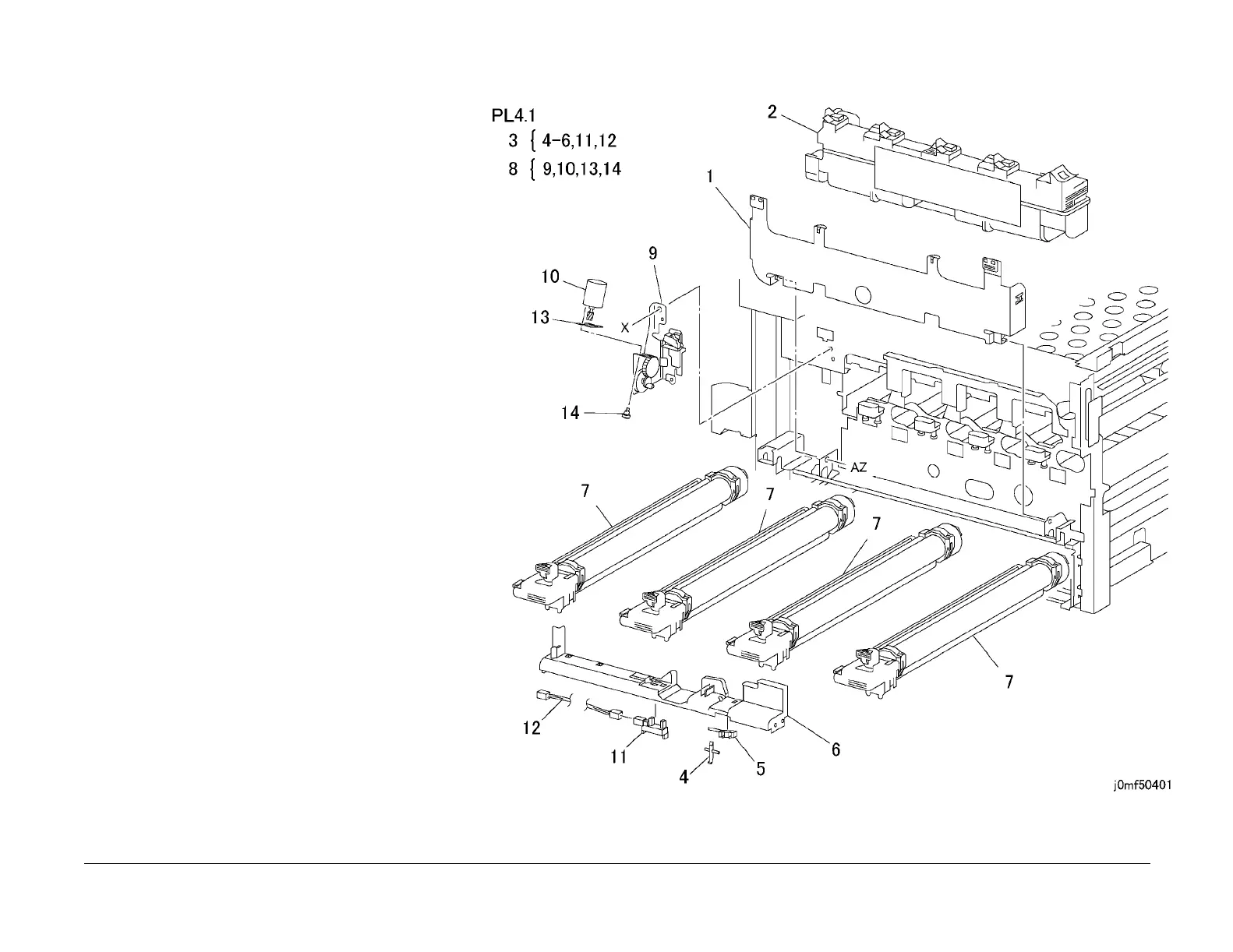

PL 4.1 Xerographic Module: 1 of 2
Item Part Description
1 802K47090 Waste Toner Cartridge Cover (REP
9.3)
2 – Waste Toner Cartridge (Not
Spared) (REP 9.4)
3 003K86122 Sensor Holder Assembly
4 – Lever (P/O PL 4.1 Item 3)
5 – Waste Toner Cartridge Interlock
Switch (P/O PL 4.1 Item 3)
6 – Holder (P/O PL 4.1 Item 3)
7 – Drum Cartridge (Not Spared) (REP
9.1)
8 127K29243 Agitator Motor Assembly (REP
9.13)
9 – Bracket (P/O PL 4.1 Item 8)
10 – Agitator Motor (P/O PL 4.1 Item 8)
11 130E91010 Full Toner Sensor (REP 9.5)
12 – Wire Harness (P/O PL 4.1 Item 3)
13 – Damper (P/O PL 4.1 Item 8)
14 – Screw (P/O PL 4.1 Item 8)
To Next Page
