09/03
4-67
DC 3535/2240/1632, WC M24
REP 7.17, REP 7.18
Repairs and Adjustments
Initial issue
REP 7.17 Tray 3 Feeder (3TM)
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 3.
2. Open the Left Cover (PL 15.10).
3. Remove the Tray 3 Feeder (Figure 1).

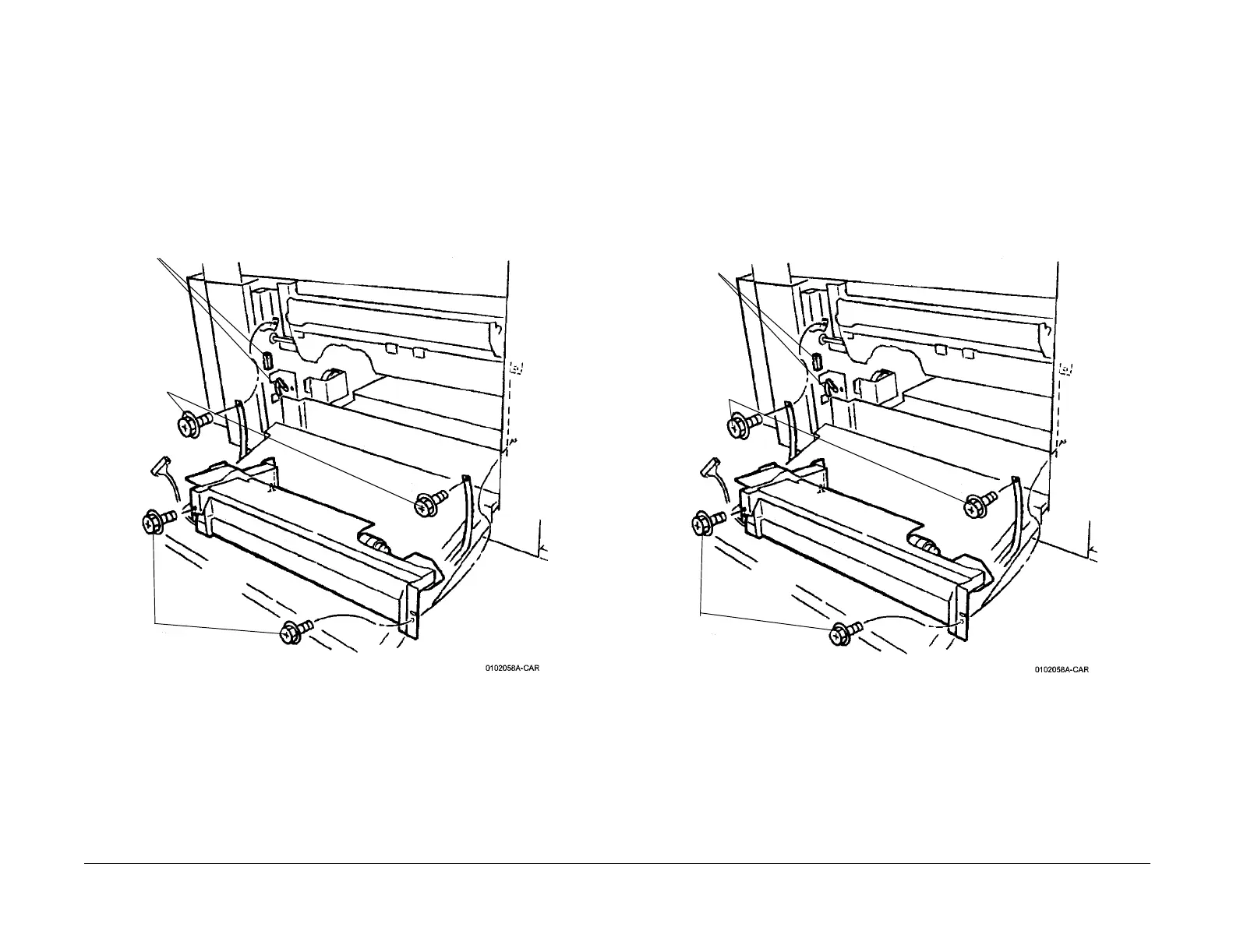

Figure 1 Removing the Tray 3 Feeder
REP 7.18 Tray 4 Feeder (3TM)
Parts List on PL 15.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Pull out Tray 4.
2. Open the Left Cover (PL 15.10) and remove the Left Lower Cover (REP 14.12).
3. Remove the Tray 4 Feeder (Figure 1).
Figure 1 Removing the Tray 4 Feeder
3
Remove Screws (2) and
the Tray 4 Feeder
1
Remove
Screws (2)
2 Release the Wire Harness from the Clamp and disconnect the P/J
2 Release the Wire Harness from the Clamp and disconnect the P/J
1
Remove
Screws (2)
3
Remove Screws (2) and
the Tray 4 Feeder
To Next Page
