REP 6.14 Lamp Wire Harness
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove DADF (REP 5.1).
2. Remove Platen Glass (REP 6.2).
3. Remove IIT Top Cover (REP 6.3).
4. Disconnect Lamp Wire Harness connector and release Clamp Hook (Figure 1).

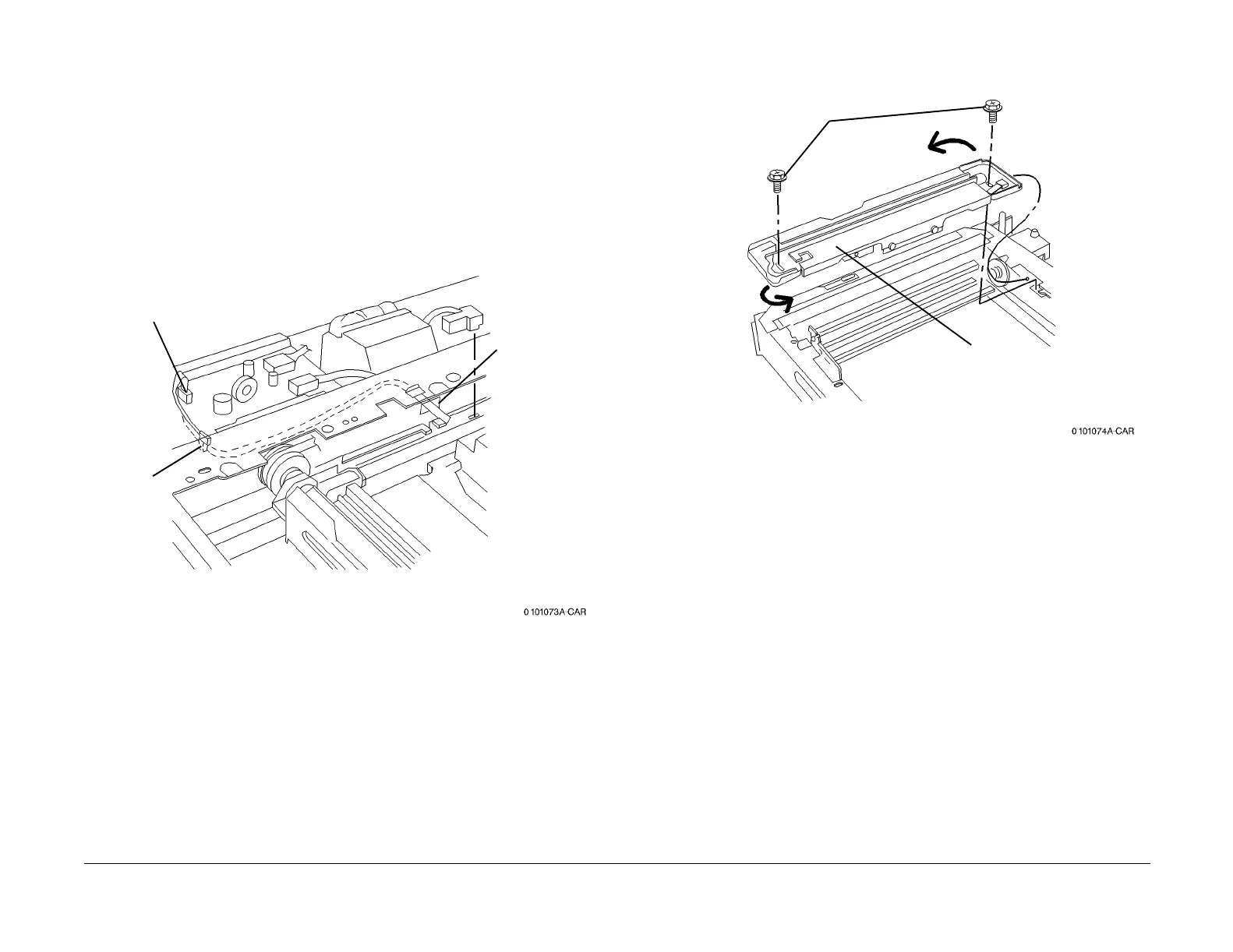

Figure 1 Disconnecting Lamp Wire Harness
5. Remove Full Rate Carriage (Figure 2).
Figure 2 Removing Full Rate Carriage
1
Disconnect
connector
2
Release
clamp
3
Release the
Clamp Hook and
pull the harness
through hole in
frame
1
Remove
screws (2)
2
Remove Full
Rate Carriage
To Next Page
