Parts List

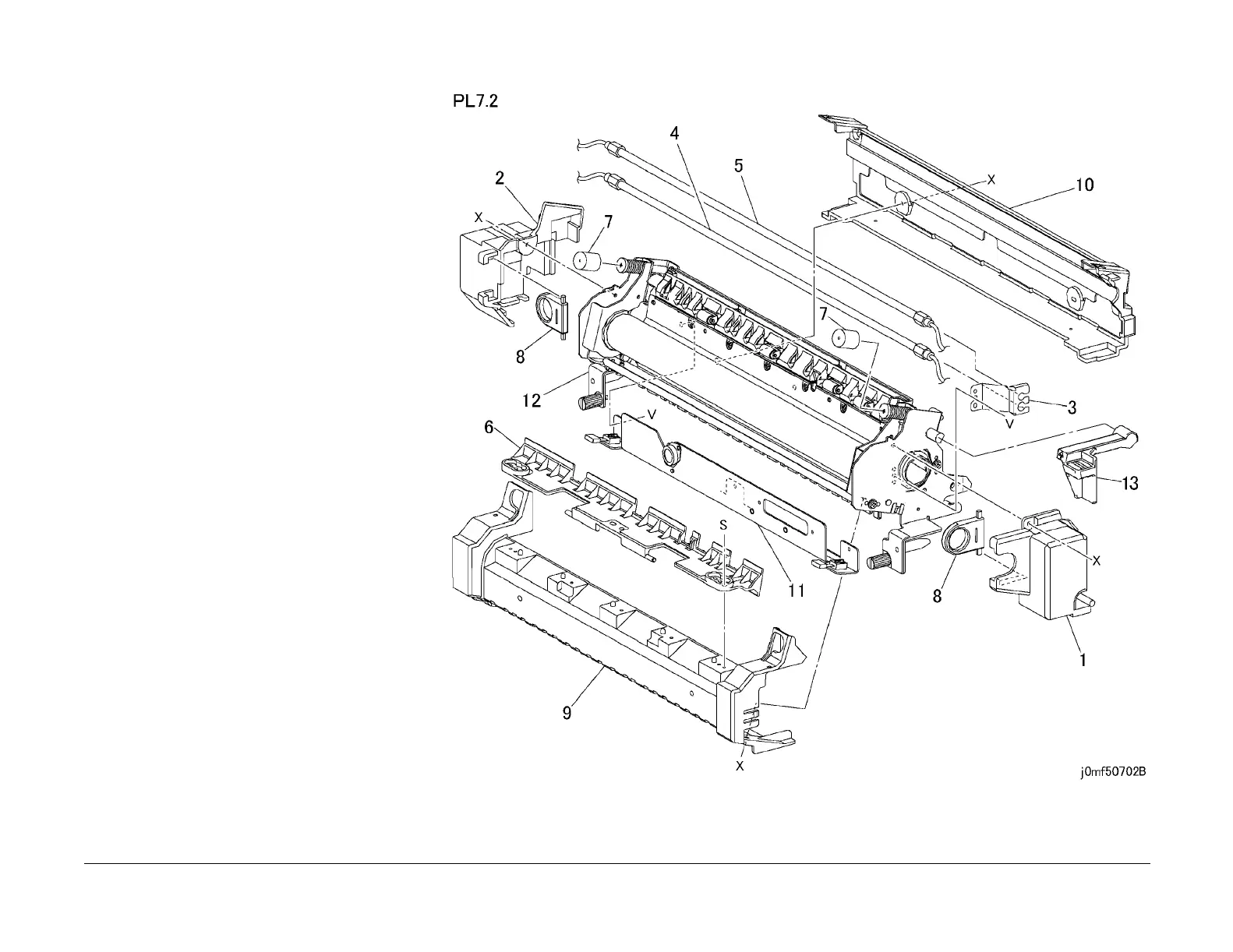

PL 7.2 Fuser Assembly: 2 of 2
Item Part Description
1 – Front Cover (Not Spared)
2 – Rear Cover (Not Spared)
3 – Front Lamp Bracket (Not Spared)
4 126K13950 Main Heater Rod (110V) (REP
10.3)
– 126K13980 Main Heater Rod (220V) (REP
10.3)
5 126K13990 Sub Heater Rod (220V) (REP 10.3)
– 126K13960 Sub Heater Rod (110V) (REP 10.3)
6 – Exit Chute (Not Spared)
7 – Cap (Not Spared)
8 – Handle (Not Spared)
9 – Upper Cover (Not Spared)
10 – Lower Cover (Not Spared)
11 130K61020 Sensor Assembly
12 – Fuser (Not Spared)
13 003E51861 Fuser Nip Handle
