09/03
3-31
DC 3535/2240/1632, WC M24
Background
Image Quality
Initial issue
Image Defect Samples
The following figures contain examples of defects and their possible causes.
• Background
• Color Misregistration
• Debris-Centered Deletions
• Deletions
• High Frequency Bands
• Irregular Process Direction Streak
• Low Image Density
•Moire
•Mottle
• Newton Rings
• Regular (Repeating) Bands, Streaks, or Smears
• Residual Image
• Streak Deletion in Process Direction
• Wrinkled Image
Background

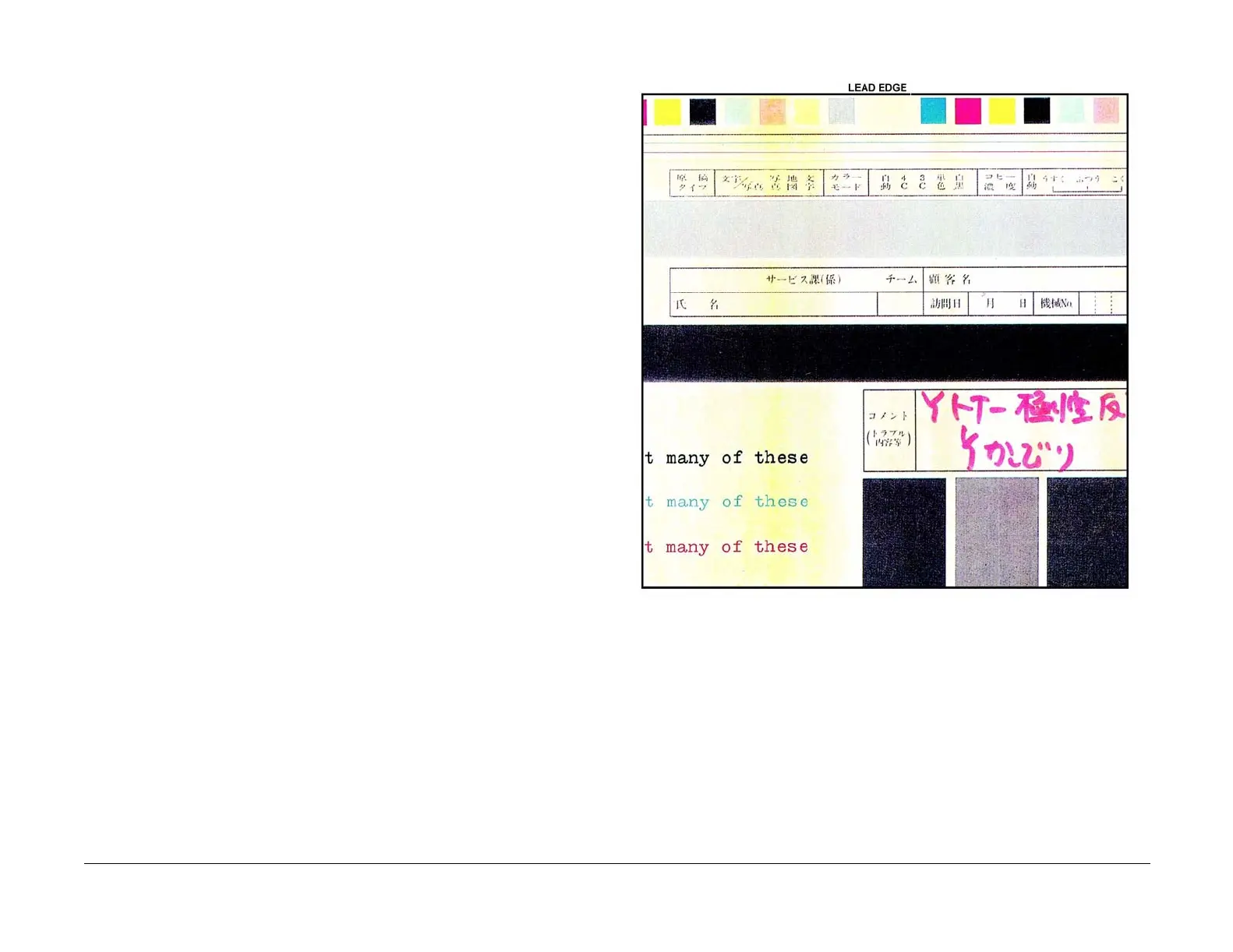

Figure 1 Background Defect Sample
Cause
Incorrect Electrostatics, high TC, faulty ADC Sensor
Corrective Action
Go to the IQ6 RAP.
To Next Page
