09/03
4-147
DC 3535/2240/1632, WC M24
REP 14.7
Repairs and Adjustments
Initial issue
REP 14.7 Front Cover Assembly
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair or adjustment activities with
the power switch on or electrical power applied to the machine.
1. Remove Front Cover (Figure 1).
a. Open Tray 1 approximately 100 mm for possible cover support.
b. Open Front Cover.
c. Remove screw to disconnect Support Strap from cover.
d. Repeat step c. for the other strap.
e. Remove screws (2) on Hinge Pin Locks and remove hinge pin locks.
f. Remove Front Cover.

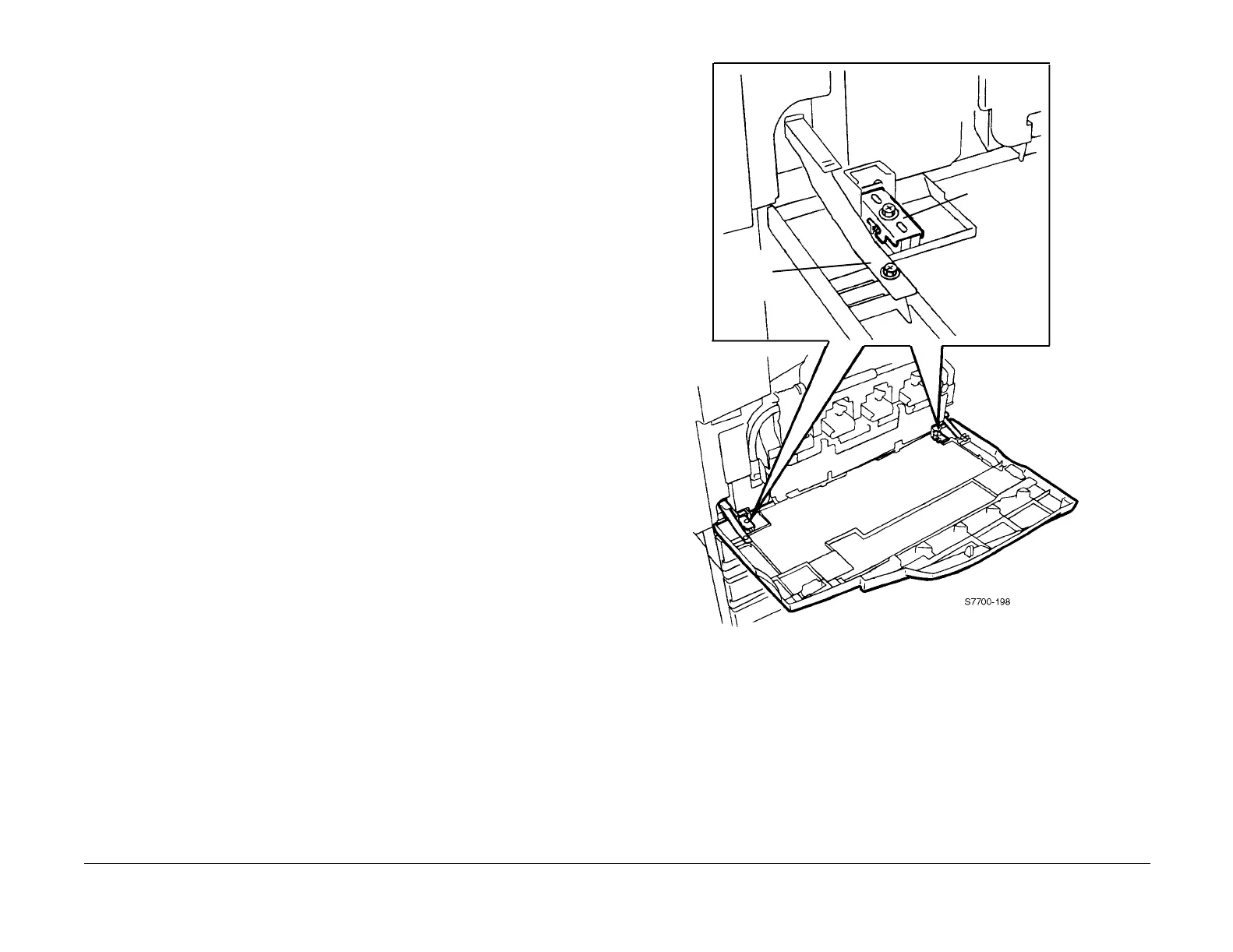

Figure 1 Removing Front Cover
Support
Strap
Hinge Pin
:Locks
