09/03
5-87
DC 3535/2240/1632, WC M24
PL 17.11
Parts List
Initial issue

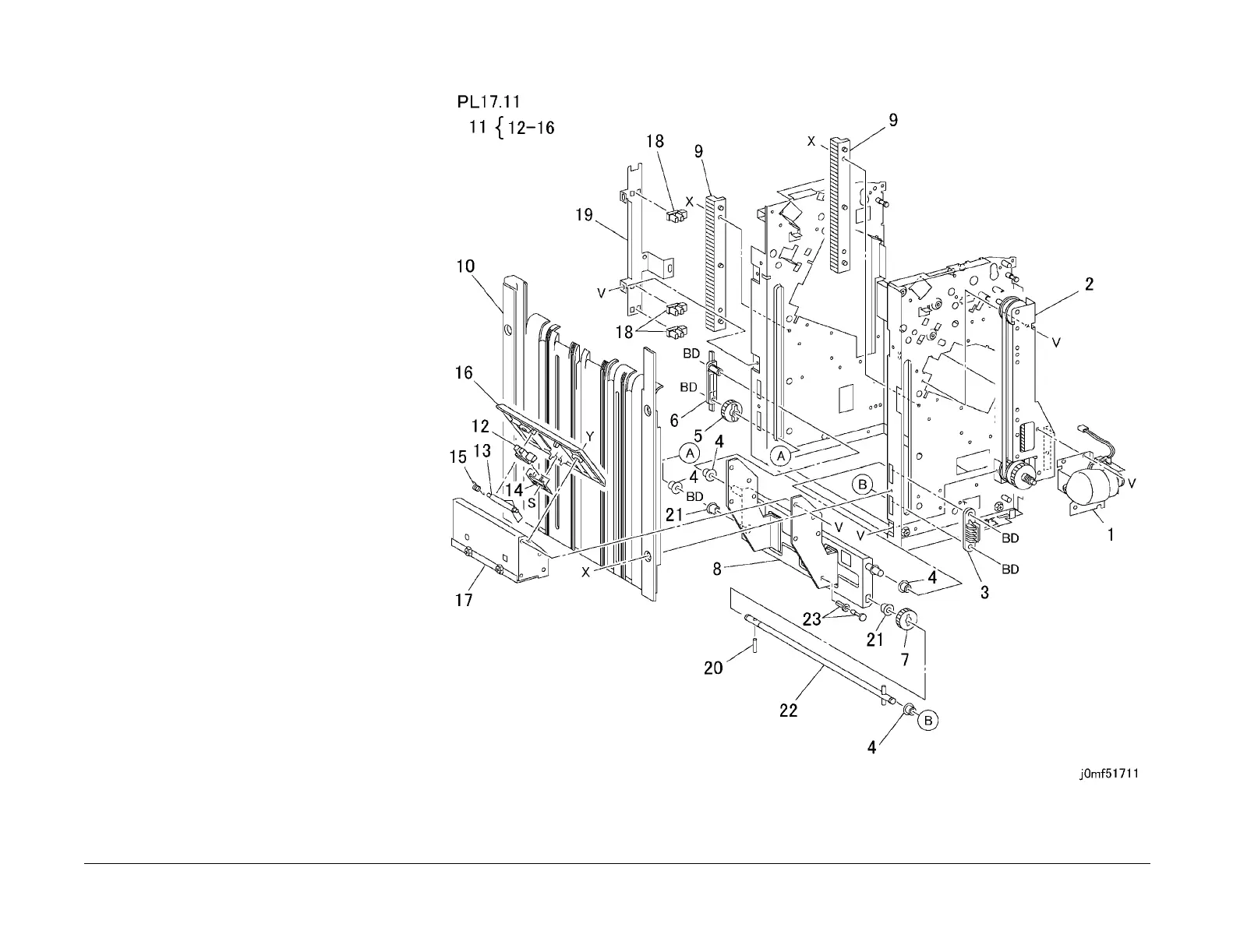

PL 17.11 Elevator
Item Part Description
1 127K33420 Stacker Motor Assembly (REP
12.13)
2 015K50680 Front Elevator Bracket (REP 12.14)
3 019E50340 Clamp
4 – Bearing (Not Spared)
5 007E67830 Rear Gear
6 – Actuator (Not Spared)
7 007E67840 Front Gear
8 – Bracket (Not Spared)
9 007E67820 Rack
10 – Tray Guide (Not Spared)
11 015K51640 Stacker Paper Sensor Assembly
12 130E82530 Sensor
13 – Actuator (P/O PL 17.11 Item 11)
14 – Bracket (P/O PL 17.11 Item 11)
15 – Spring (P/O PL 17.11 Item 11)
16 – Cover (P/O PL 17.11 Item 11)
17 – Bracket (Not Spared)
18 – Sensor (Not Spared)
19 – Bracket (Not Spared)
20 – Pin (Not Spared)
21 – Bearing (Not Spared)
22 – Shaft (Not Spared)
23 – Rivet (Not Spared)
To Next Page
